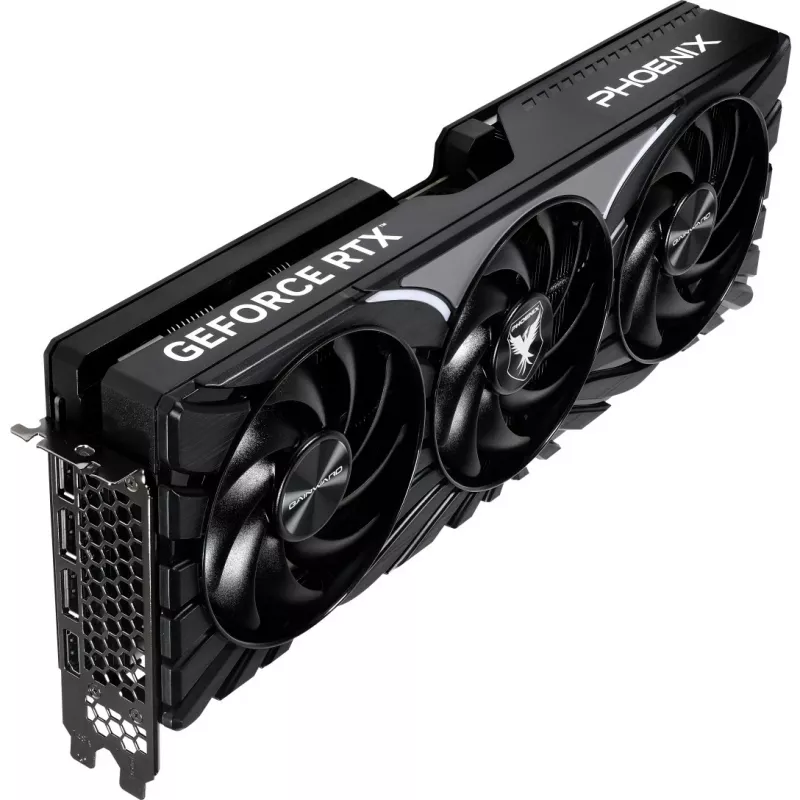

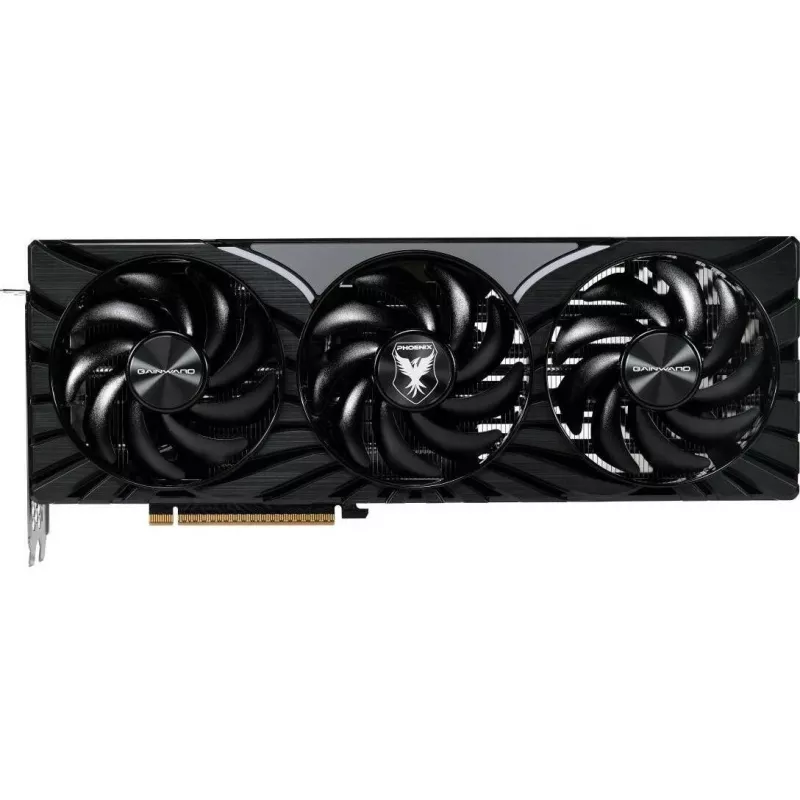

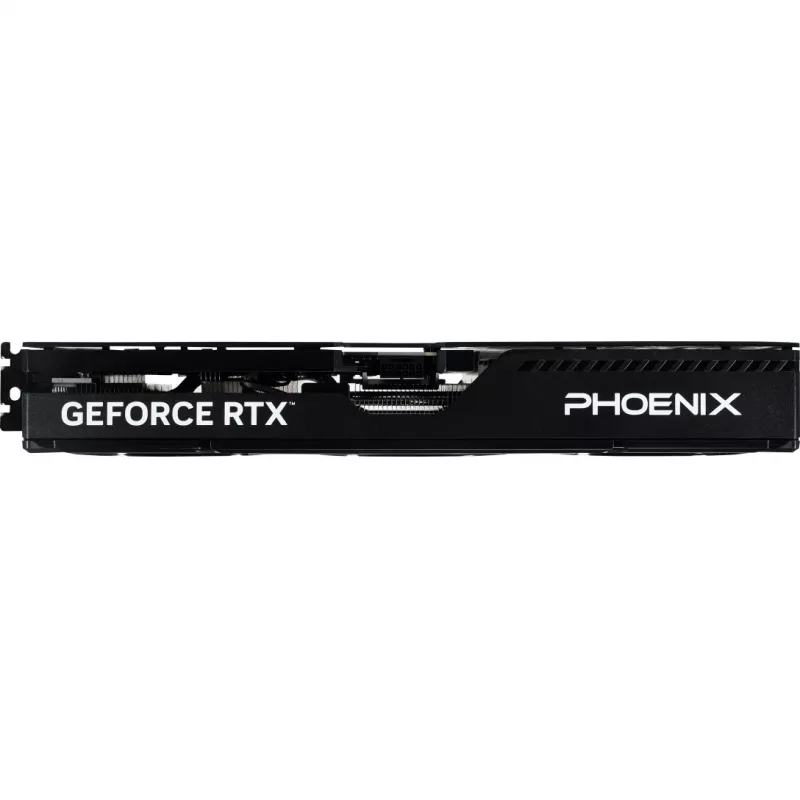

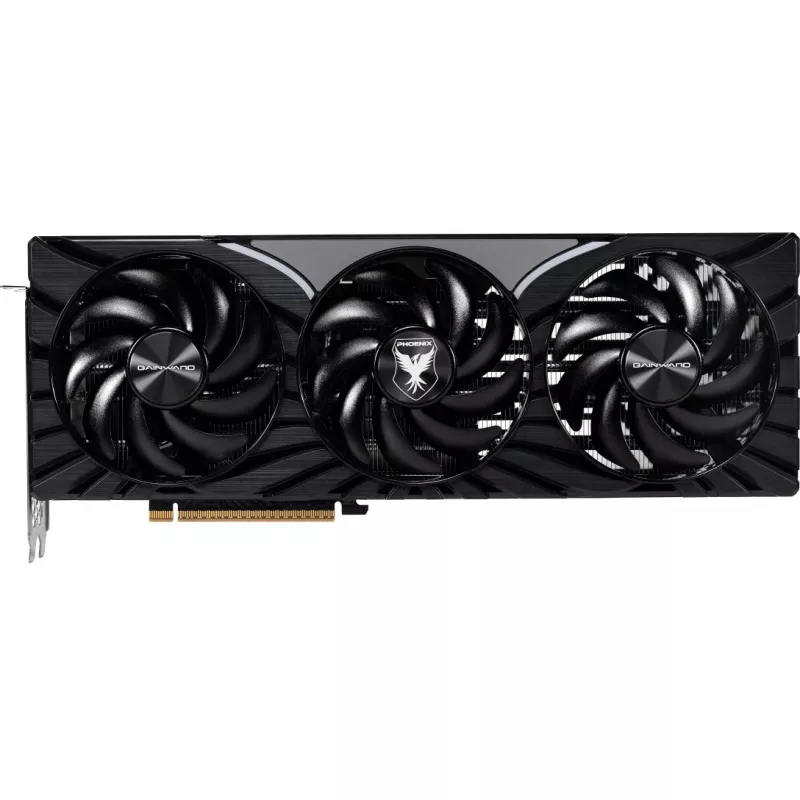

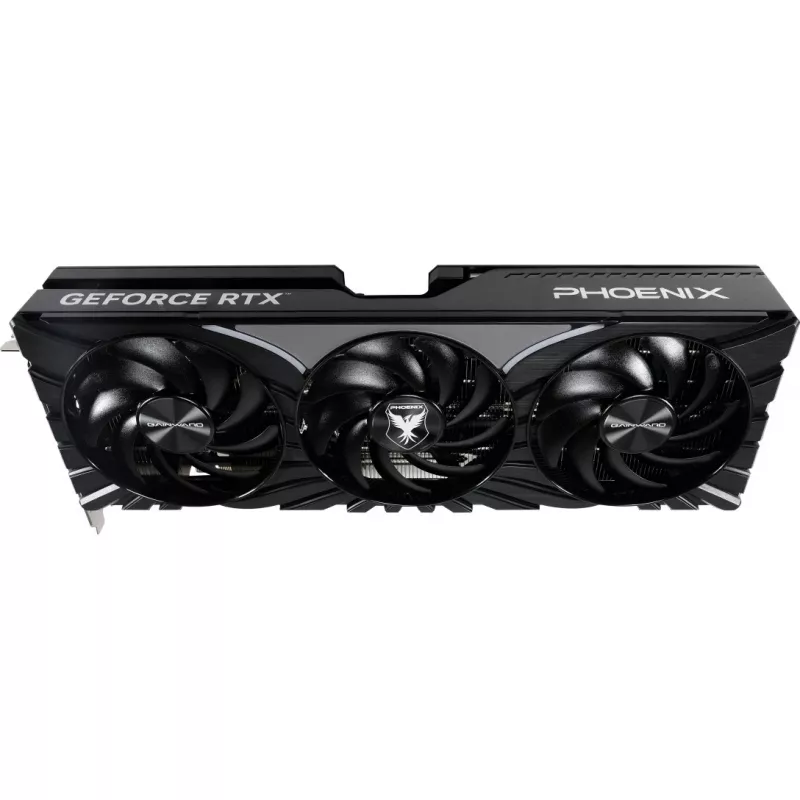

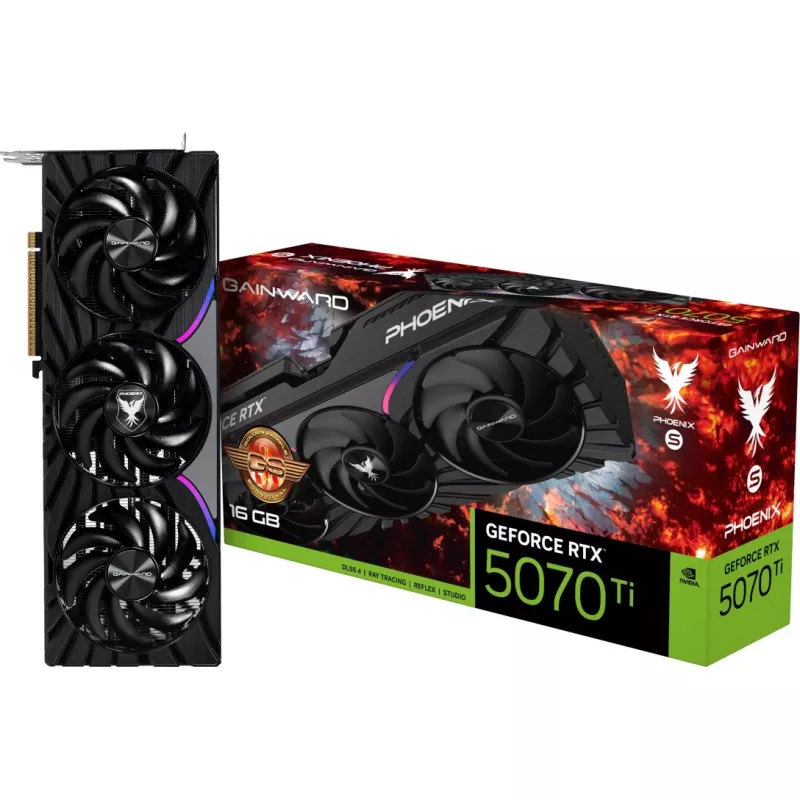

Tarjeta gráfica GAINWARD GeForce RTX 5070 Ti Phoenix-S GS, 16 GB GDDR7, PCIe 5.0, 256-Bit, 2295 MHz

GAINWARD GeForce RTX 5070 Ti Phoenix-S GS is a discrete graphics card built around the NVIDIA GeForce RTX 5070 Ti GPU with 16 GB of GDDR7 memory on a 256-bit bus and a 14,000 MHz memory clock. With a core frequency of 2295 MHz and a PCI Express 5.0 interface, the card supports DirectX 12 Ultimate and OpenGL 4.6, and includes an active triple-fan cooling solution with multi-color ARGB illumination. The Phoenix-S styling features layered contours and a phoenix-wing-inspired design, a Mega Copper Base for improved heat absorption, composite heat pipes, and a ZERO RPM fan mode for silent low-load operation. Dual BIOS offers flexible performance and silent profiles, while Auto Sync 2.0 enables simple 5V ARGB lighting synchronization.

Advantages

The card combines a modern NVIDIA Blackwell architecture GPU with 16 GB of fast GDDR7 memory and a 256-bit memory bus, delivering high throughput for gaming and GPU-accelerated tasks. Advanced cooling design with a large copper base and composite heat pipes keeps operating temperatures under control during sustained workloads. Dual BIOS provides both performance and silent modes, and ARGB lighting with Auto Sync 2.0 offers easy system-wide illumination synchronization without extra software. ZERO RPM fan behavior reduces noise during light tasks, while features like NVIDIA DLSS 4, full ray tracing, and NVIDIA Reflex 2 enhance frame rates, image quality, and responsiveness in supported titles and applications.

Suitable for

• High-resolution gaming and ray-traced titles
• Video editing, 3D rendering and content creation workflows
• AI-accelerated tasks and GPU compute workloads
• Silent or compact builds requiring efficient cooling and ARGB aesthetics

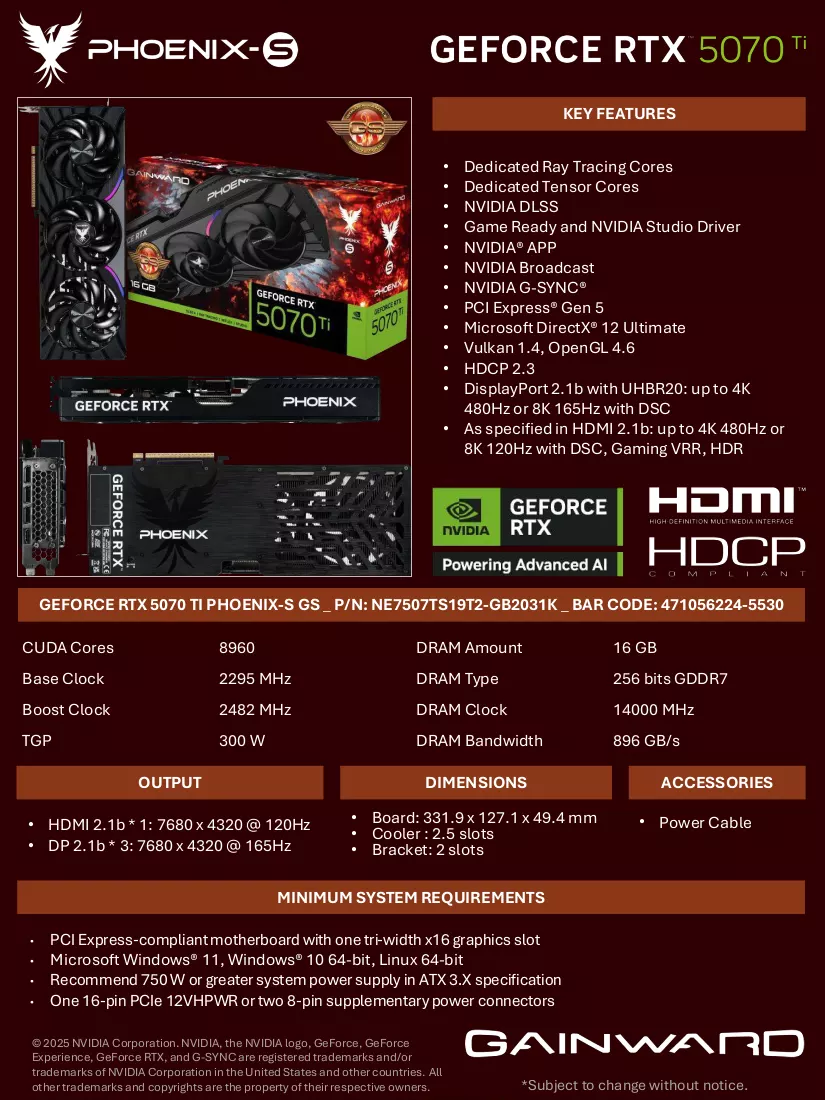

Key specifications

• Graphics processor: NVIDIA GeForce RTX 5070 Ti
• Video memory: 16 GB GDDR7 on a 256-bit memory bus
• Memory clock: 14,000 MHz (effective)
• Core frequency: 2295 MHz
• Interface: PCI Express 5.0
• API support: DirectX 12 Ultimate, OpenGL 4.6

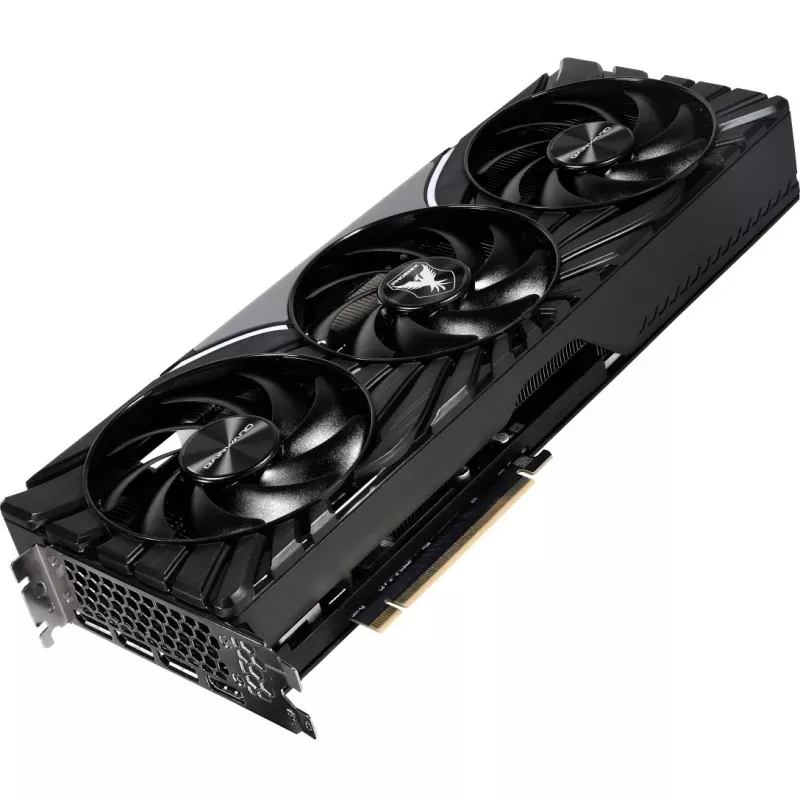

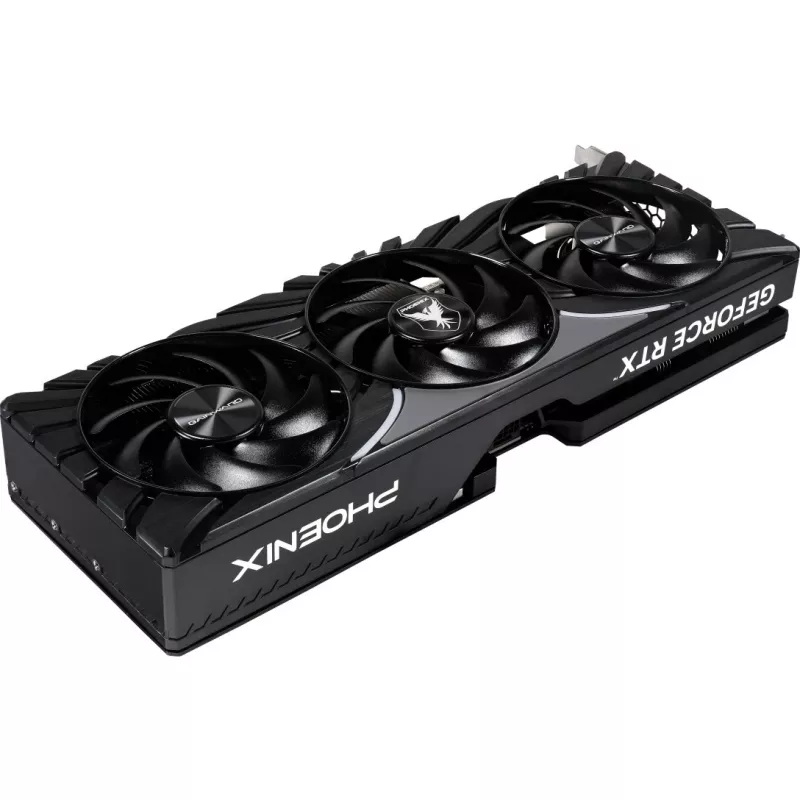

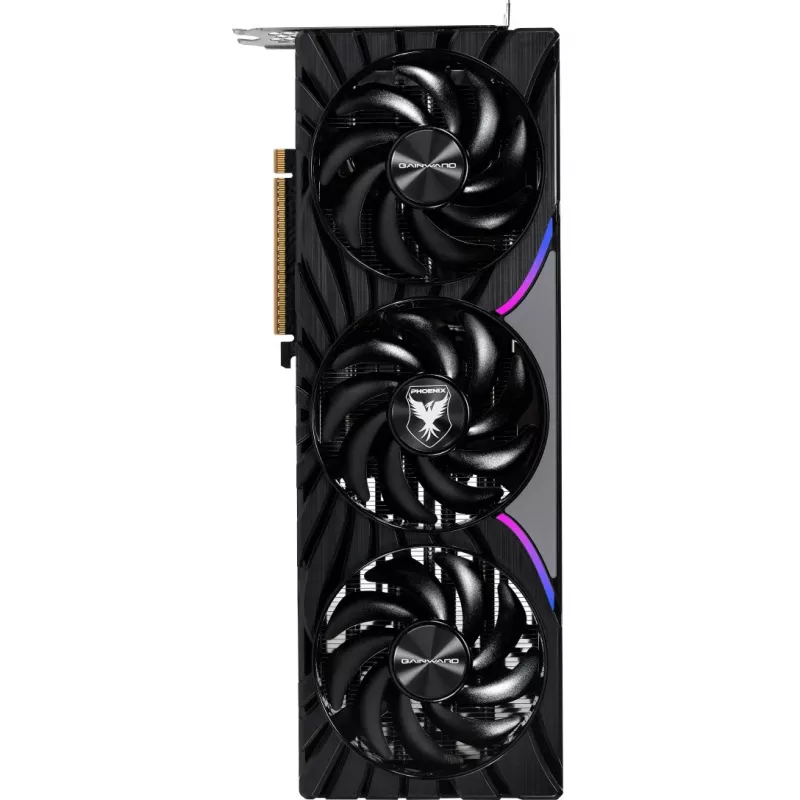

• Cooling: Triple-fan active cooler with Mega Copper Base and composite heat pipes
• Lighting: Addressable RGB (5V ARGB connector) with Auto Sync 2.0
• Cooling behavior: ZERO RPM fan mode (idle fan stop)
• Power connector: single 16-pin power input

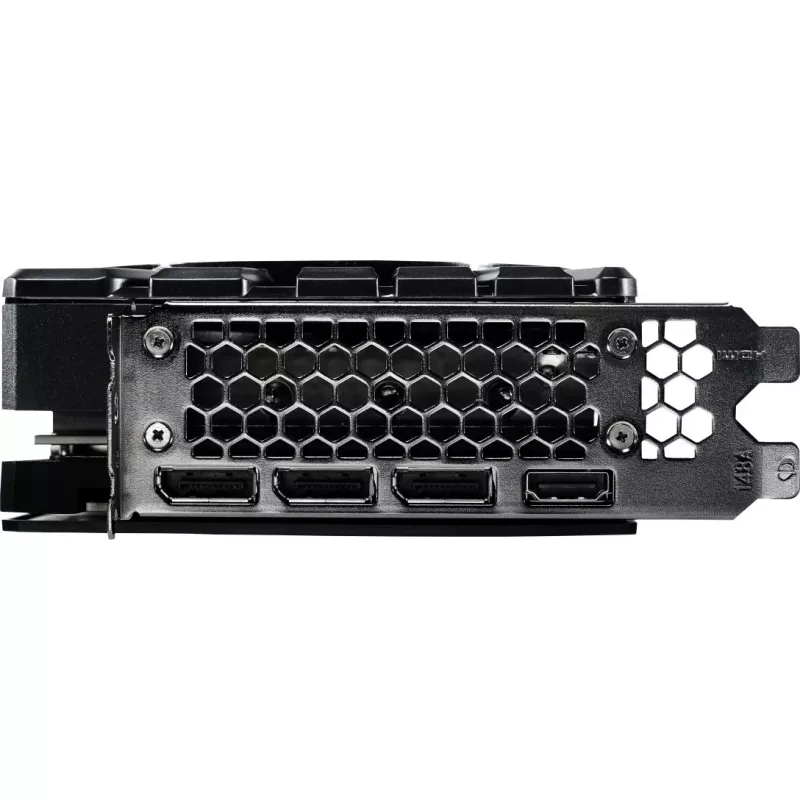

• Display outputs: multiple DisplayPort and HDMI outputs (multi-monitor capable)

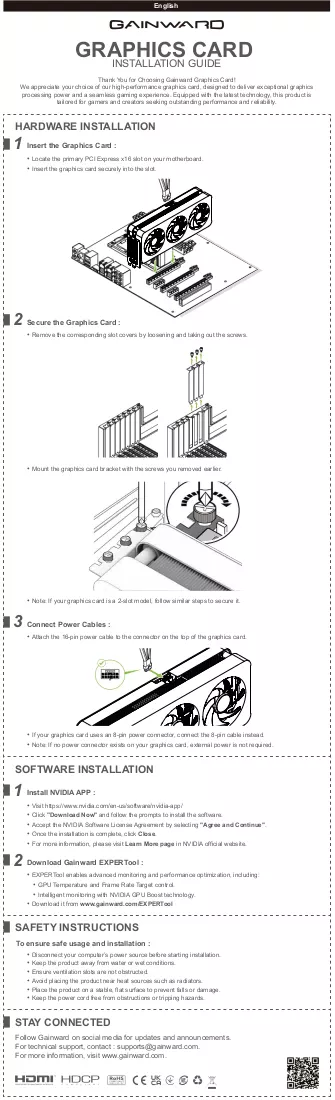

How to use

Install the graphics card into a free PCI Express 5.0 x16 slot on a compatible motherboard and secure it to the case. Connect the required 16‑pin power cable from a power supply that meets the card's power recommendations. Attach display cables to the DisplayPort or HDMI outputs. If you wish to synchronize lighting with other ARGB components, plug the 5V ARGB connector to a compatible header or use the card's built-in Auto Sync 2.0 plug-and-play capability. Install the latest NVIDIA drivers and, if desired, GAINWARD Expertool Utility to adjust fan curves, lighting effects, and Dual BIOS settings. Ensure adequate case airflow for sustained high-load operation.

Recommendations

For optimal performance and longevity, use a compatible power supply with the recommended wattage and a 16‑pin connector, keep system drivers updated, and maintain good case airflow. Use Performance Mode for demanding gaming or rendering tasks and switch to Silent Mode for low-noise desktop usage. Enable DLSS or other AI features in supported applications to improve framerates and responsiveness while preserving image quality.
