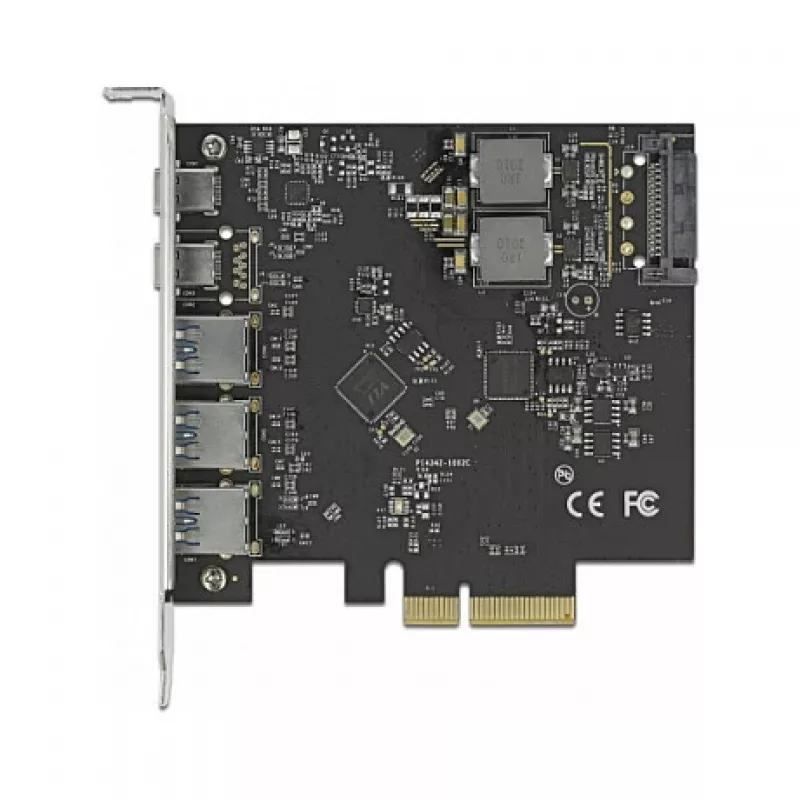

Tarjeta PCI Express x4 DeLOCK 89064

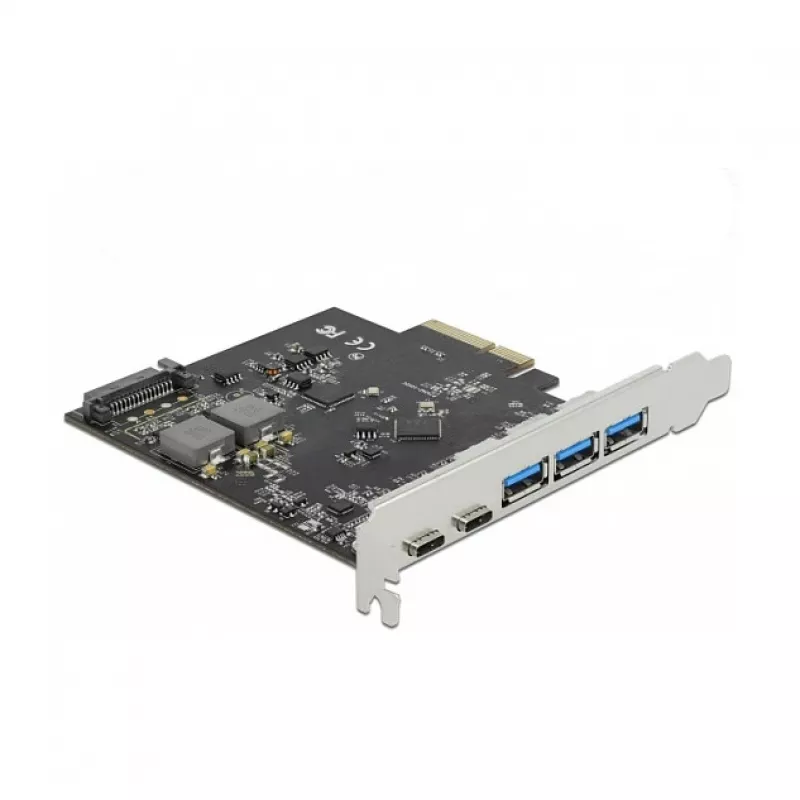

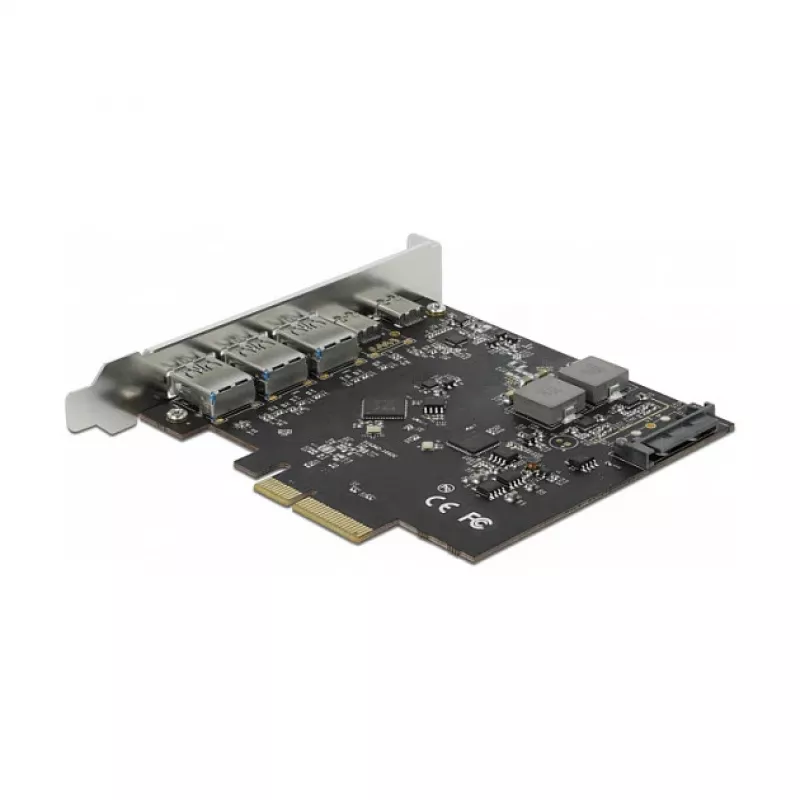

This PCI Express x4 card by DELOCK adds five external SuperSpeed USB 3.2 ports to a desktop PC, providing two USB Type-C and three USB Type-A connectors. The card uses a PCIe host interface and requires a SATA 15-pin power connector. It supports devices such as docking stations, card readers and external enclosures and delivers up to 10 Gbps per port on compatible systems.

Advantages

The card provides a mix of USB-C and USB-A ports to support modern and legacy peripherals, each port supporting SuperSpeed USB 10 Gbps. Installation uses a PCIe x4 slot and the card draws additional power via a SATA 15-pin connector to ensure stable operation with multiple connected devices. Compatible with Windows 10 and Windows Server 2016 according to the manufacturer.

Suitable for

Key specifications

How to use

Power off the PC and insert the card into an available PCIe x4 (or larger) slot on the motherboard. Secure the card in the case bracket and connect a SATA 15‑pin power cable from the PSU to the card. Boot the system and install any required drivers if the operating system does not automatically configure the card. After installation, connect USB devices to the Type‑C or Type‑A ports; each port supports up to 10 Gbps when used with compatible devices and cables.

Recommendations

For full 10 Gbps transfer rates use USB 3.2 Gen 2 compatible cables and devices. Ensure the power supply has an available SATA power connector and that the motherboard supports PCIe x4 operation for optimal performance. Follow the manufacturer's driver guidance for the listed compatible operating systems.
