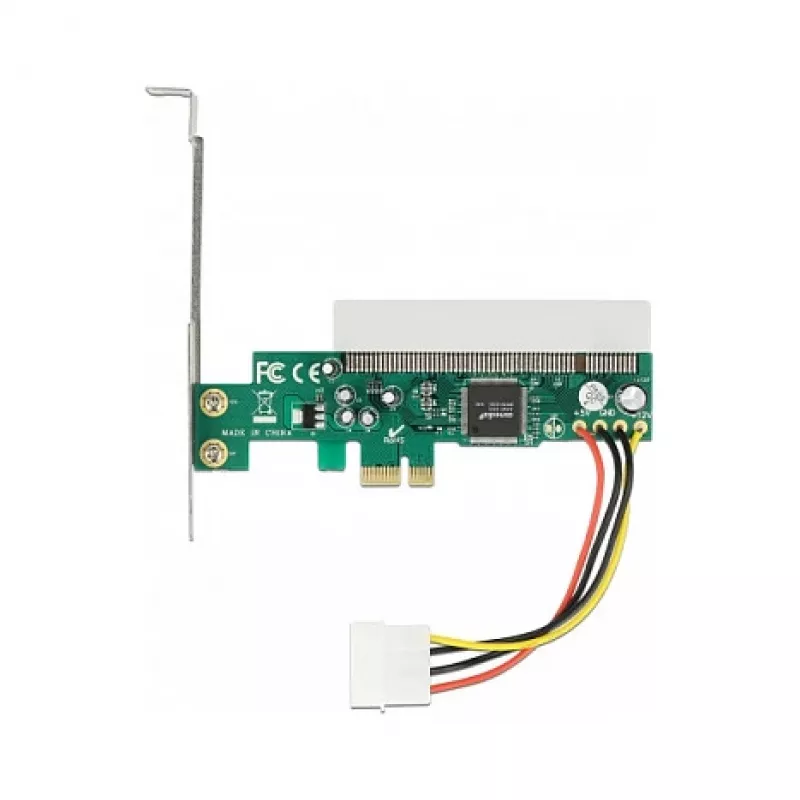

Tarjeta riser DeLOCK PCI Express x1 a 1 x ranura PCI 32 Bit 5 V Asmedia

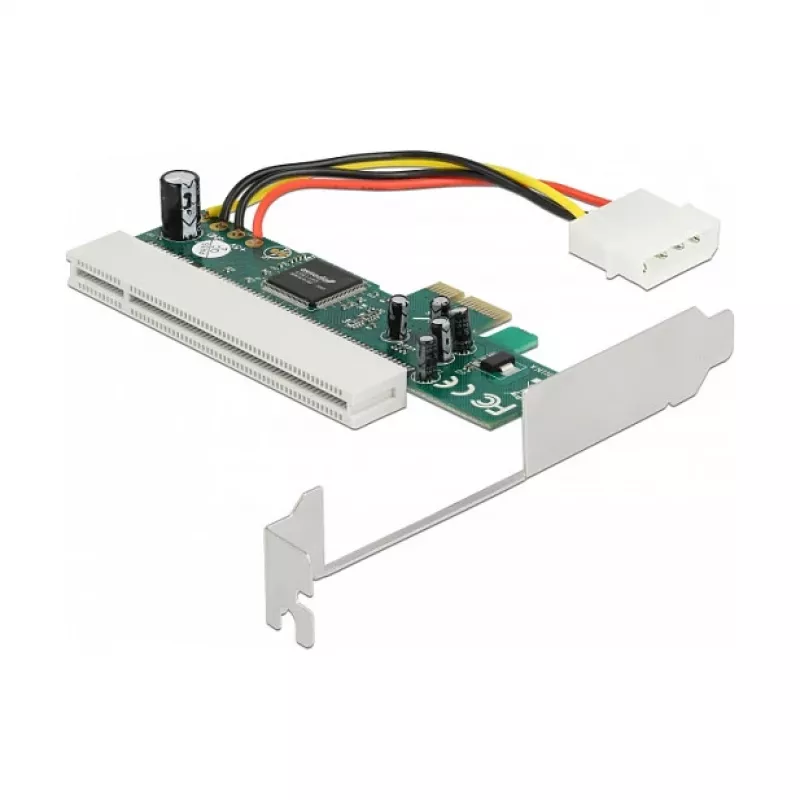

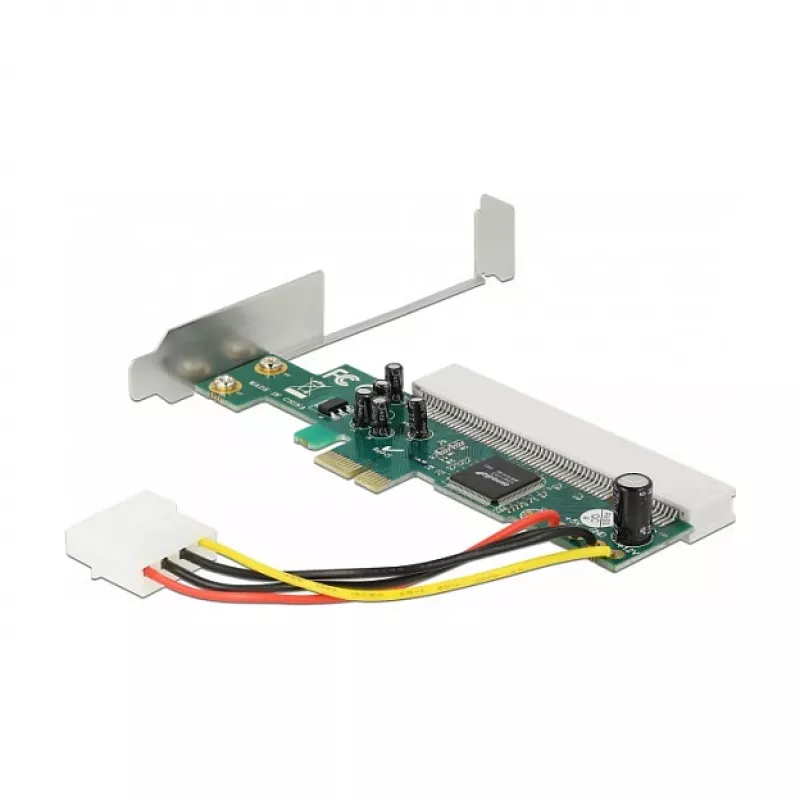

The DeLOCK Riser Card PCI Express x1 to 1 x PCI 32 Bit 5 V Slot (Asmedia) adapts a PCI Express x1 slot to a single 32-bit, 5 V PCI slot, allowing installation of a standard PCI card in systems that provide only a PCIe x1 connector. The riser card is intended for internal use and includes a slot bracket with a recess that permits external cable connections to a PCI card mounted inside the computer case. The product is compatible with systems running Windows 10 and Windows 8.1.

Advantages

The riser card provides a compact solution to add one legacy 32-bit PCI card via a PCIe x1 slot, preserving compatibility with 5 V PCI cards. Its internal design and bracket recess enable routed external connections while keeping the PCI card installed inside the chassis. The adapter requires no additional drivers for general PCI/PCIe compatibility and supports straightforward mechanical installation.

Suitable for

Key specifications

How to use

Power off the computer and disconnect it from the mains. Open the computer case and insert the DeLOCK riser card into an available PCIe x1 slot on the motherboard. Secure the slot bracket to the chassis using the existing bracket screw; route any required external cables through the bracket recess to connect to the installed PCI card. Reassemble the case, reconnect power, and start the system. Verify that the installed PCI card is recognized by the operating system and install device drivers for the PCI card if required.

Recommendations

Use the riser card only in desktop systems with compatible PCIe x1 slots and 5 V PCI cards. Ensure the system is powered off when installing or removing cards and avoid forcing connectors; verify physical clearance inside the case for the mounted PCI card and routed cables.
