Weidmüller ZQV 16/2 puente transversal, 2 polos, 16 mm², amarillo, 25 uds.

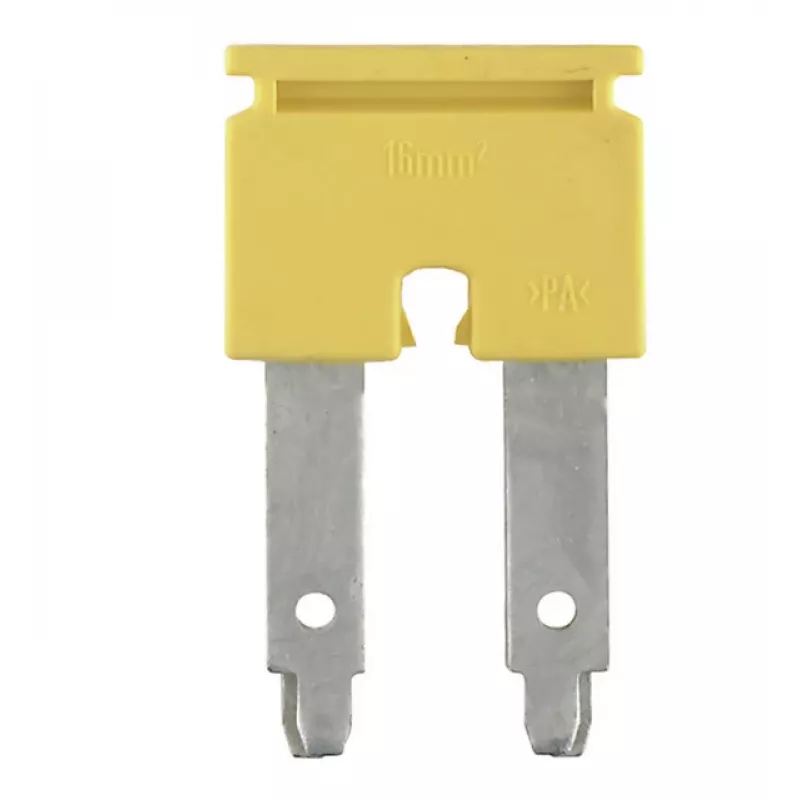

The Weidmüller ZQV 16/2 cross-connector is a high-quality plug-in jumper designed for bridging adjacent terminals in ZDU 16 series terminal blocks. It provides a reliable and space-saving electrical connection, rated for 76 A and 1000 V (IEC). The yellow Wemid housing offers excellent thermal and mechanical resistance, with an operating temperature range of -60 to 130 °C and a UL 94 V-0 flammability rating. Each pack contains 25 pieces, making it ideal for industrial control panels and distribution systems.

Advantages

• Quick and tool-free installation via plug-in design
• Compact 12 mm pitch saves space on the rail
• High current capacity up to 76 A
• Wide temperature range suitable for harsh environments
• Self-extinguishing material enhances safety

Suitable for

• Bridging adjacent terminals in ZDU 16 terminal blocks
• Potential distribution in control cabinets
• Industrial automation and power distribution

Key specifications

• Product Type: Cross-connector
• Number of Poles: 2
• Nominal Cross-section: 16 mm²
• Rated Current (IEC): 76 A
• Rated Voltage (IEC): 1000 V
• Rated Voltage (UL): 600 V
• Colour: Yellow
• Housing Material: Wemid
• Operating Temperature: -60 to 130 °C
• Flammability Rating: UL 94 V-0
• Packaging Unit: 25 pieces
• Mounting Type: Plug-in
• Compatible Series: ZDU 16
• RoHS Compliant: Yes
• REACH Compliant: Yes

Recommendations

For optimal performance, use with Weidmüller ZDU 16 terminal blocks. Ensure proper installation according to manufacturer guidelines. Store in a dry, cool environment.
