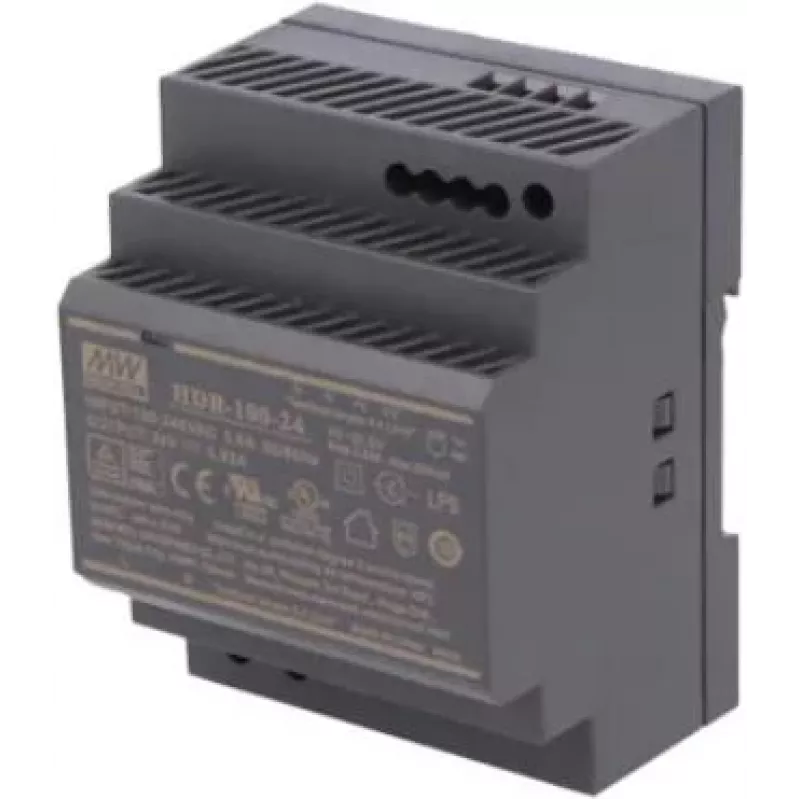

TECH STEROWNIKI fuente de alimentación cableada 24V DC 100W para carril DIN

The TECH STEROWNIKI Wired Power Supply 24V DC 100W on DIN Rail is a high-efficiency, reliable power solution designed for industrial and automation applications. With a compact plastic housing and DIN rail mounting, it provides stable 24V DC output at 100W, making it ideal for powering controllers, sensors, and other 24V devices.

Advantages

High efficiency of 89% reduces energy waste and heat generation. Wide input voltage range (85-264V AC / 120-370V DC) ensures compatibility with various mains supplies. Comprehensive protection features (short circuit, overload, over voltage, over temperature) safeguard connected equipment. Free air convection cooling enables silent operation without fans.

Suitable for

• Industrial control panels
• Building automation systems
• PLC and HMI power supply
• Security and access control systems
• LED lighting and signage

Key specifications

• Output: 24V DC, 4.17A, 100W
• Input: 85-264V AC / 120-370V DC
• Efficiency: 89%
• Mounting: DIN Rail (TS-35/7.5 or TS-35/15)
• Protection: Short Circuit, Overload, Over Voltage, Over Temperature
• Operating Temperature: -30 to +70°C
• Ripple & Noise: 150mVp-p
• Output Voltage Adjustment: 21.6-29V via potentiometer
• Isolation: I/P-O/P 3kVAC, I/P-FG 2kVAC, O/P-FG 0.5kVAC
• Certifications: UL 61010-1, UL 61010-2-201, TUV EN61010-1, EN61010-2-201, EAC TP TC 004, CE
• Housing Material: Plastic
• No Load Power Consumption: <0.3W
• Harmonic Current Compliance: EN61000-3-2 Class A

Recommendations

For optimal performance, ensure adequate ventilation around the power supply. The output voltage can be adjusted using the built-in potentiometer; verify with a multimeter before connecting sensitive loads. This unit is suitable for continuous operation in industrial environments.
