Tecline Casete de empalme de fibra óptica con 12x pigtails OM5, SC/UPC, 2,0 m, pack de 12 20500027

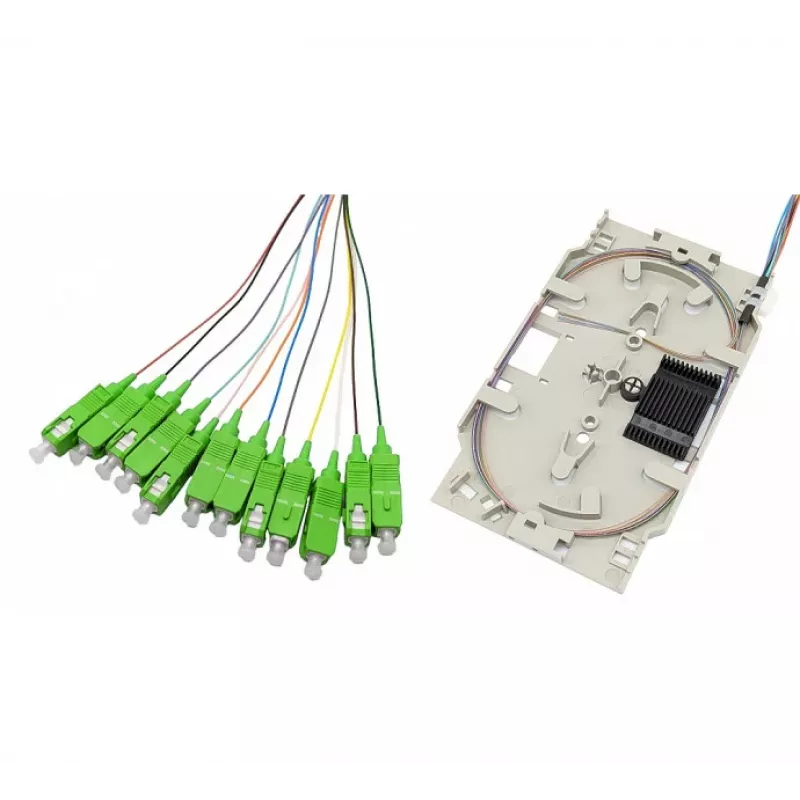

Fiber optic splice cassette with 12 color-coded OM5 multimode pigtails, each terminated with SC/UPC connectors and 2.0 m length. Ideal for structured fiber termination and cable management in distribution frames and splice closures.

Advantages

OM5 wideband multimode fiber supports SWDM wavelengths from 850 nm to 953 nm, enabling higher data rates over existing multimode infrastructure. Color-coded pigtails simplify fiber identification and reduce installation errors.

Suitable for

• Fiber optic network termination and splicing
• Data centers and enterprise networks
• Telecommunications distribution points

Key specifications

• Fiber type: OM5 multimode (50/125 µm)
• Number of pigtails: 12
• Connector type: SC/UPC
• Pigtail length: 2.0 m
• Typical insertion loss: < 0.3 dB
• Typical return loss: > 50 dB

Recommendations

Pair with compatible splice trays and fusion splicers for efficient fiber management. Use color-coded pigtails to maintain polarity and simplify troubleshooting.
