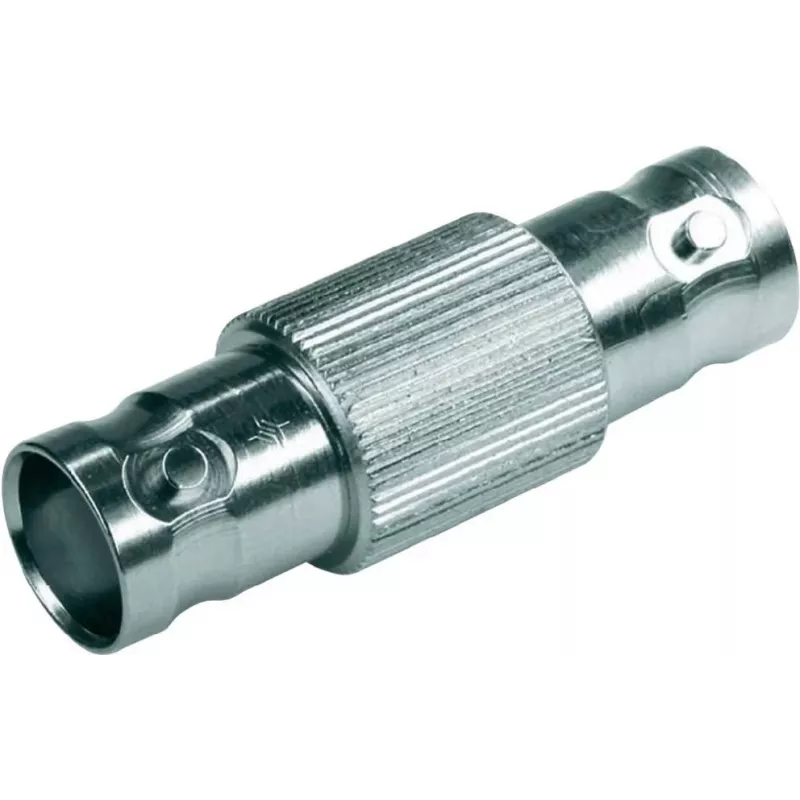

Telegärtner Adaptador BNC conector hembra a conector hembra BNC J01005A0006

With a frequency range extending to 4 GHz, this BNC adapter delivers reliable signal integrity for high-frequency applications. The straight inline design connects two BNC female interfaces, enabling simple extension or coupling of 50-ohm coaxial lines.

Overview

The Telegärtner J01005A0006 is a precision BNC adapter featuring BNC jack (female) connectors on both ends. It is engineered for 50-ohm systems and supports frequencies from DC to 4 GHz with a VSWR of ≤1.2 up to 2 GHz. The body is made of nickel-plated brass, while the inner contacts are gold-plated brass with PTFE insulation, ensuring low contact resistance and high durability.

What stands out

• Wide frequency range: DC to 4 GHz
• Low VSWR: ≤1.2 (DC to 2 GHz)
• Gold-plated contacts for reliable connectivity
• PTFE insulation for thermal stability
• RoHS compliant

Technical details

• Connector 1: BNC Jack (Female)
• Connector 2: BNC Jack (Female)
• Impedance: 50 Ω
• Adapter Type: Straight
• Body Material: Brass, Nickel Plated
• Contact Material: Brass, Gold Plated
• Insulation Material: PTFE
• Frequency Range: DC to 4 GHz
• Voltage Rating: 500 V (RMS)
• Insulation Resistance: ≥ 5 GΩ
• Contact Resistance (Inner): ≤ 1.5 mΩ
• Contact Resistance (Outer): ≤ 1 mΩ
• Operating Temperature Range: -55 °C to +155 °C
• Mounting Type: In-line / Free Hanging
• Standard Compliance: IEC 60169-8
• Packaging Quantity: 1 Piece

Our verdict

A high-quality BNC adapter built for demanding RF applications, offering excellent electrical performance and robust construction.
