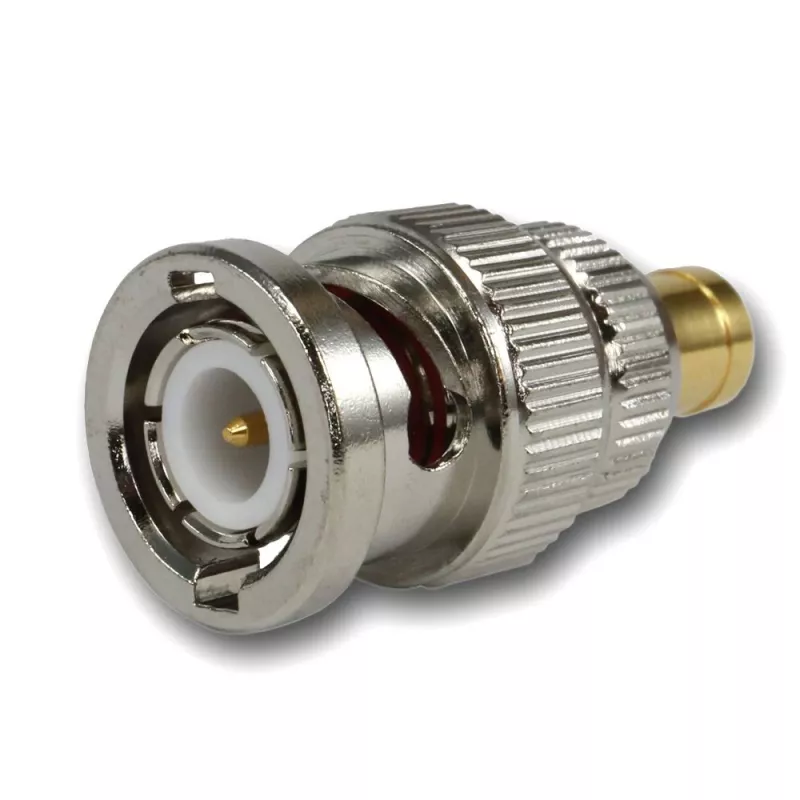

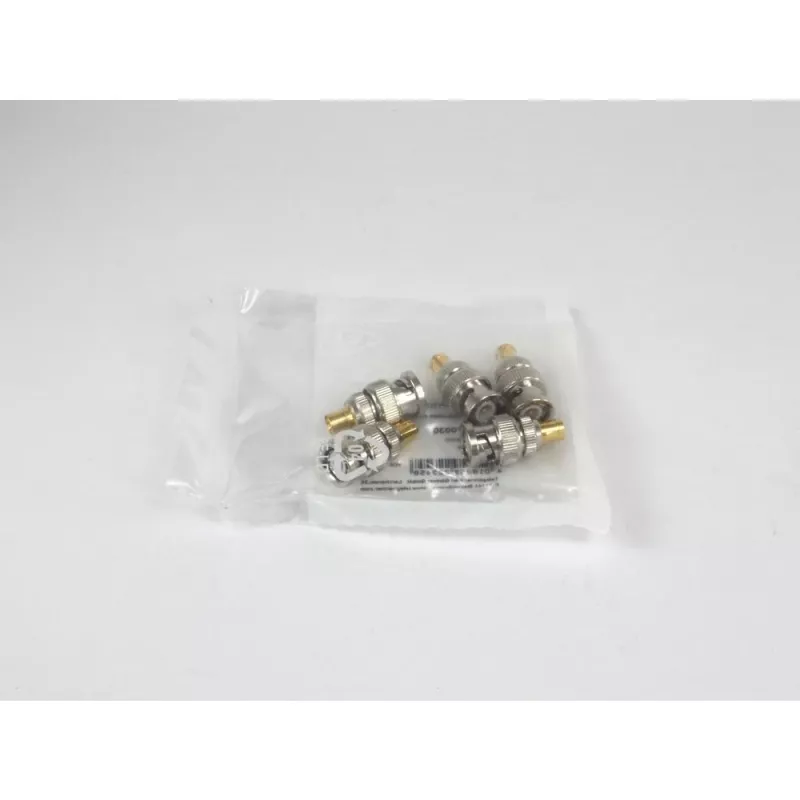

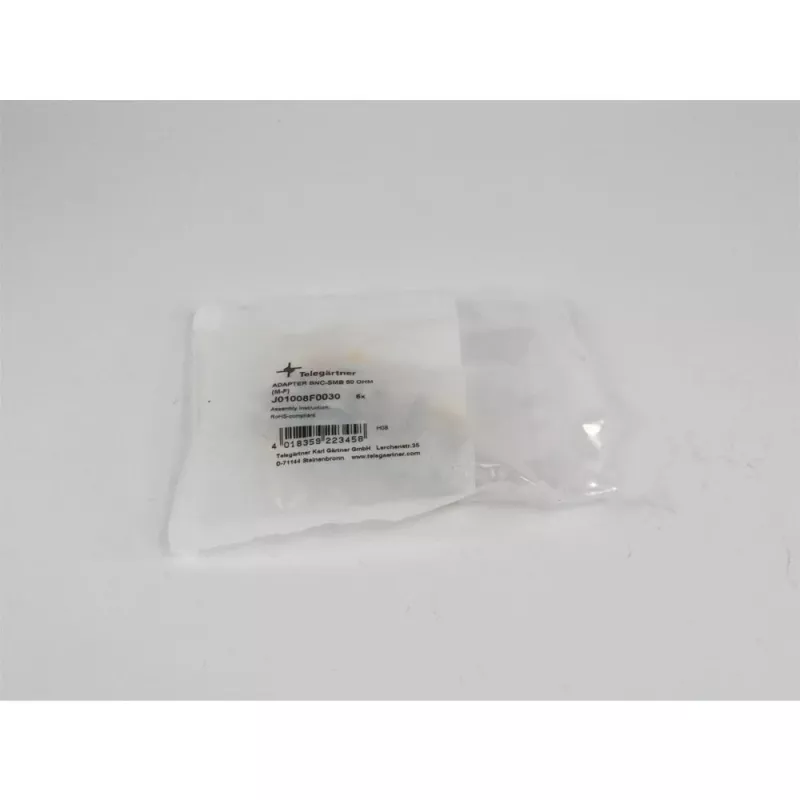

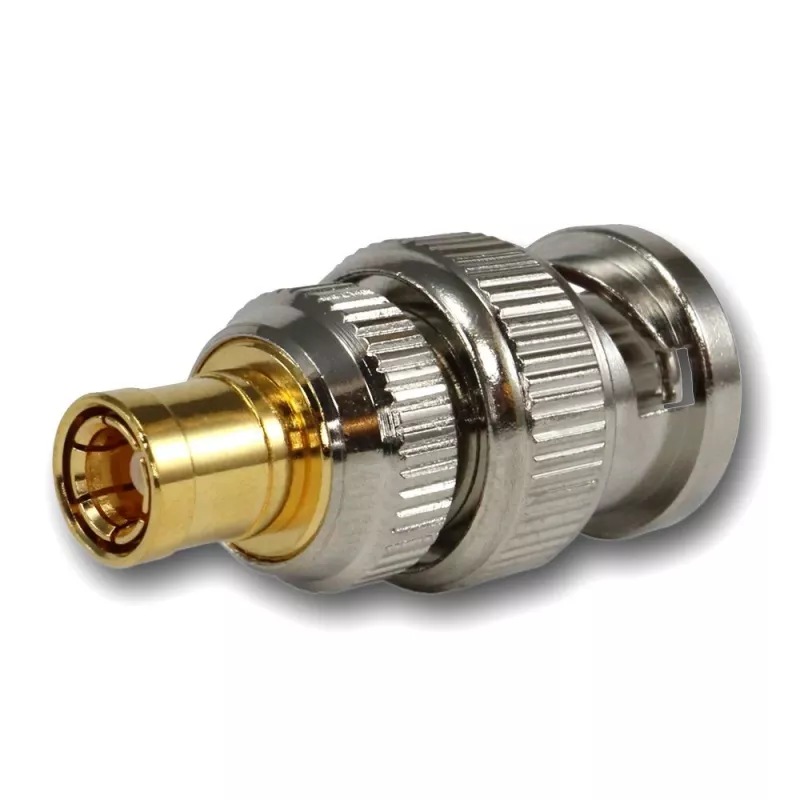

TELEGÄRTNER adaptador coaxial conector macho BNC a conector hembra SMB, 50 ohmios, recto, latón niquelado J01008F0030

When a BNC cable needs to connect to an SMB port, mismatched interfaces can halt a project. This coaxial adapter bridges that gap directly, converting a BNC male connection to an SMB female jack without extra cabling.

Who is it for

RF technicians, network engineers, and electronics hobbyists who work with 50-ohm systems and need a reliable inline adapter for test setups, antenna feeds, or equipment interconnects.

Main features

• BNC male to SMB female configuration for direct interface conversion
• 50 Ω impedance matches standard RF and communications equipment
• Straight body design for easy inline connection
• Nickel-plated brass body for durability and corrosion resistance
• Gold-plated contacts ensure low contact resistance and reliable signal transfer
• PTFE insulator supports stable performance across a wide temperature range

Specifications

• Connector 1: BNC male
• Connector 2: SMB female
• Impedance: 50 Ω
• Frequency range: DC to 4 GHz
• VSWR: ≤ 1.3:1
• Body material: Brass, nickel-plated
• Contact material: Brass / Beryllium copper, gold-plated
• Insulator material: PTFE
• Operating temperature: -55°C to +155°C

Tips

Ensure both mating connectors are clean and properly aligned before tightening. For best performance, avoid exceeding the rated frequency or bending the adapter excessively.
