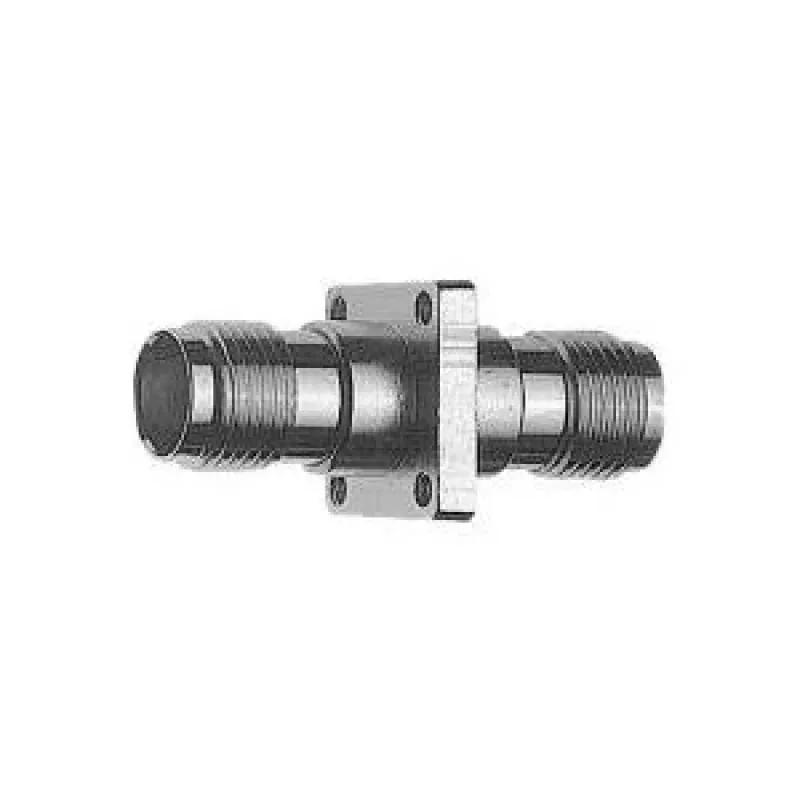

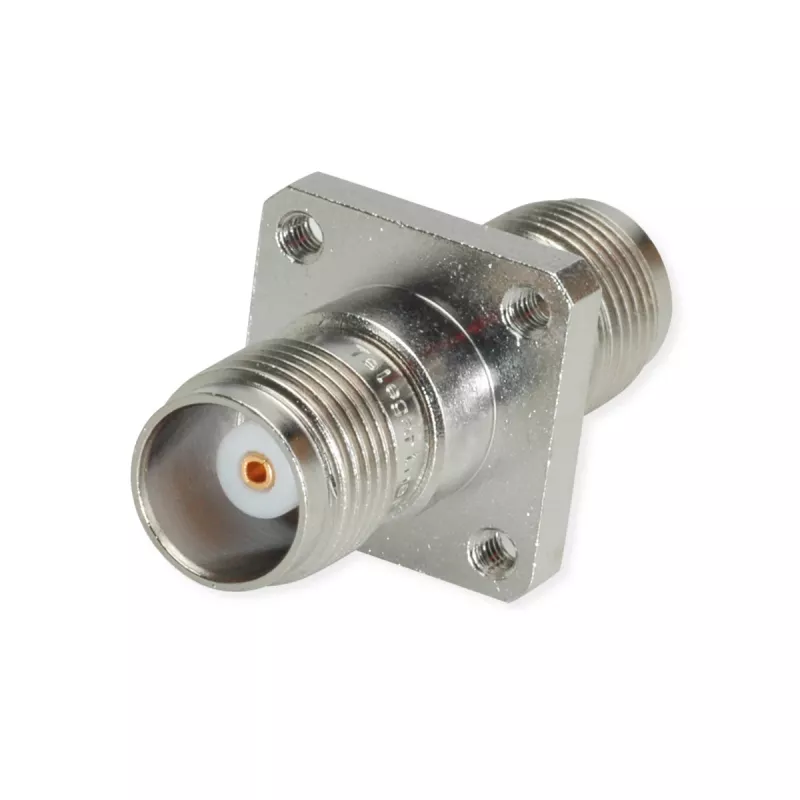

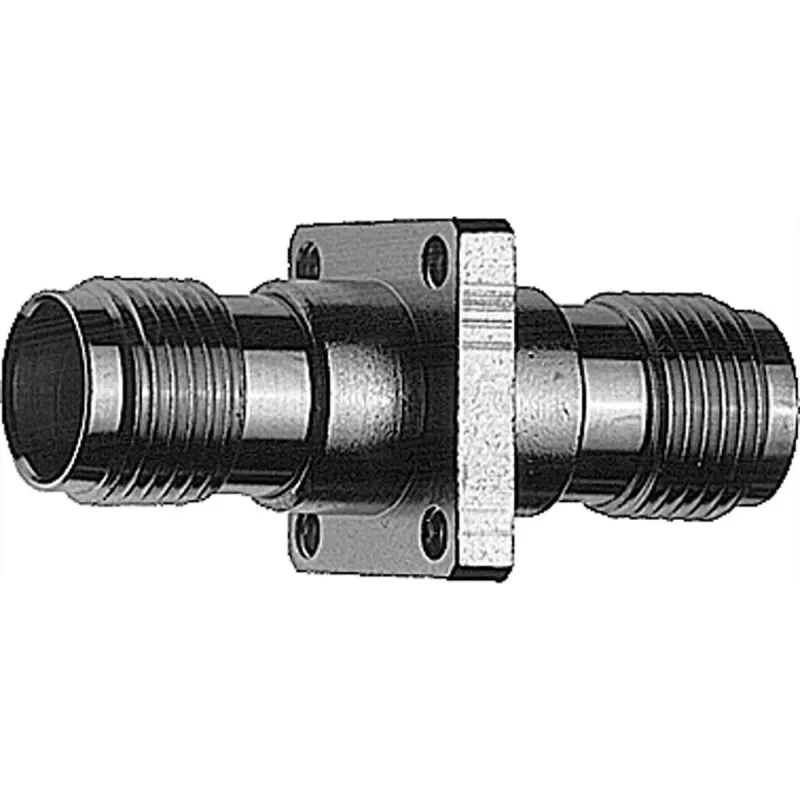

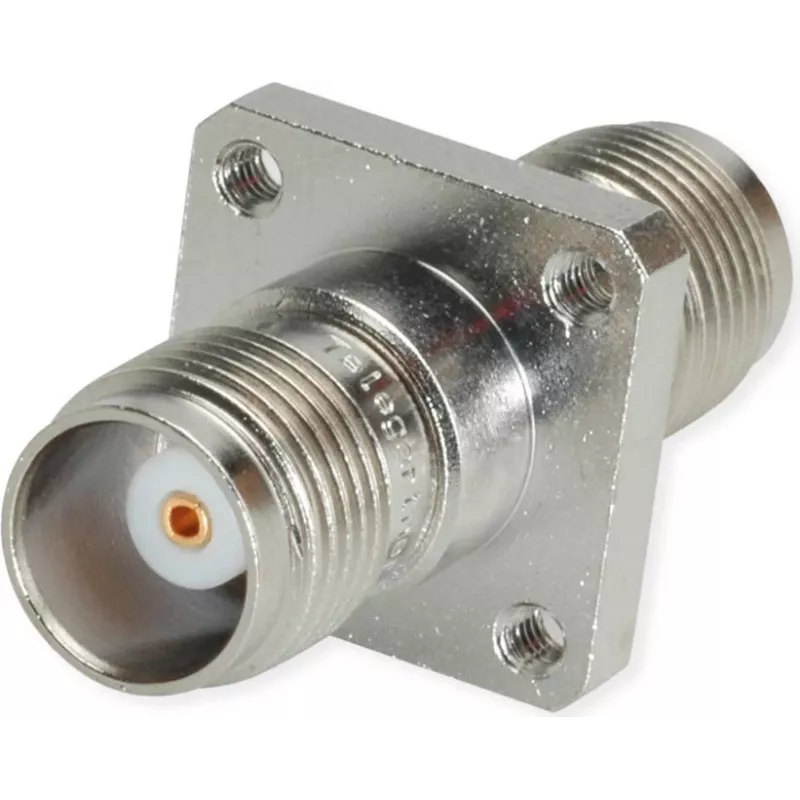

Telegärtner Adaptador coaxial TNC hembra a TNC hembra recto, 50 ohmios, DC hasta 11 GHz, latón niquelado

This TNC coaxial adapter provides a straight connection between two TNC female interfaces, enabling reliable RF signal transfer up to 11 GHz. Its 50 Ohm impedance ensures compatibility with standard RF systems, while the nickel-plated brass body and gold-plated beryllium copper contacts deliver durability and low contact resistance.

Advantages

Precision-machined components and PTFE insulation maintain stable electrical performance across a wide temperature range from -55 °C to +155 °C. The adapter withstands 500 mating cycles, making it suitable for repeated connections in test and measurement setups.

Suitable for

• RF test benches and laboratory equipment
• Antenna systems and communication infrastructure
• Interconnection of TNC-terminated cables and devices

Key specifications

• Connector 1: TNC female (jack)
• Connector 2: TNC female (jack)
• Impedance: 50 Ohm
• Frequency range: DC to 11 GHz
• Body material: nickel-plated brass
• Contact material: gold-plated beryllium copper
• Insulation: PTFE
• Operating temperature: -55 °C to +155 °C

Recommendations

For best performance, ensure mating connectors are clean and properly torqued. This adapter is ideal for applications requiring a compact, in-line TNC female-to-female transition.
