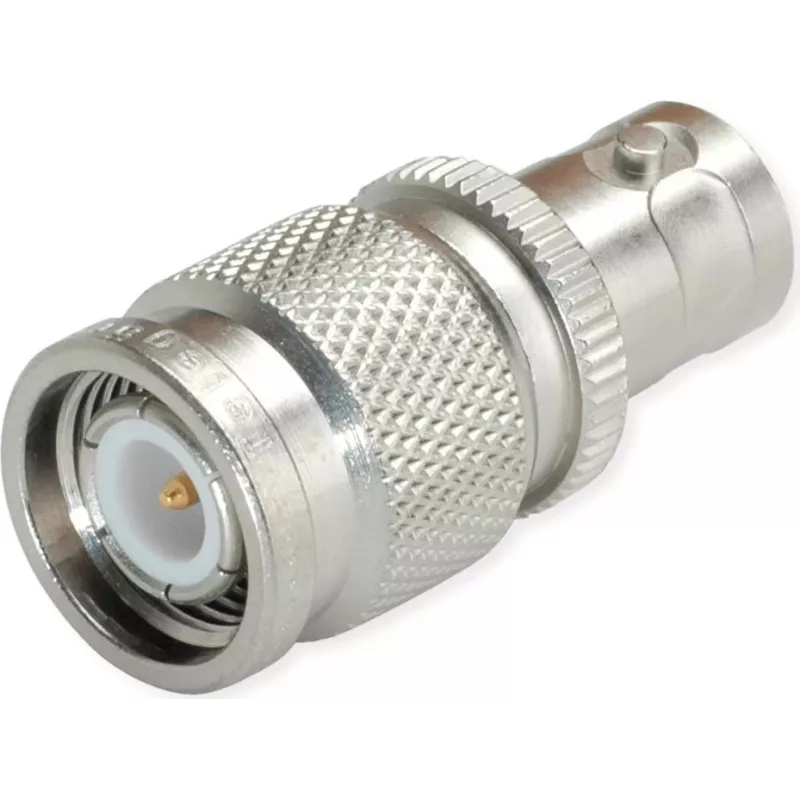

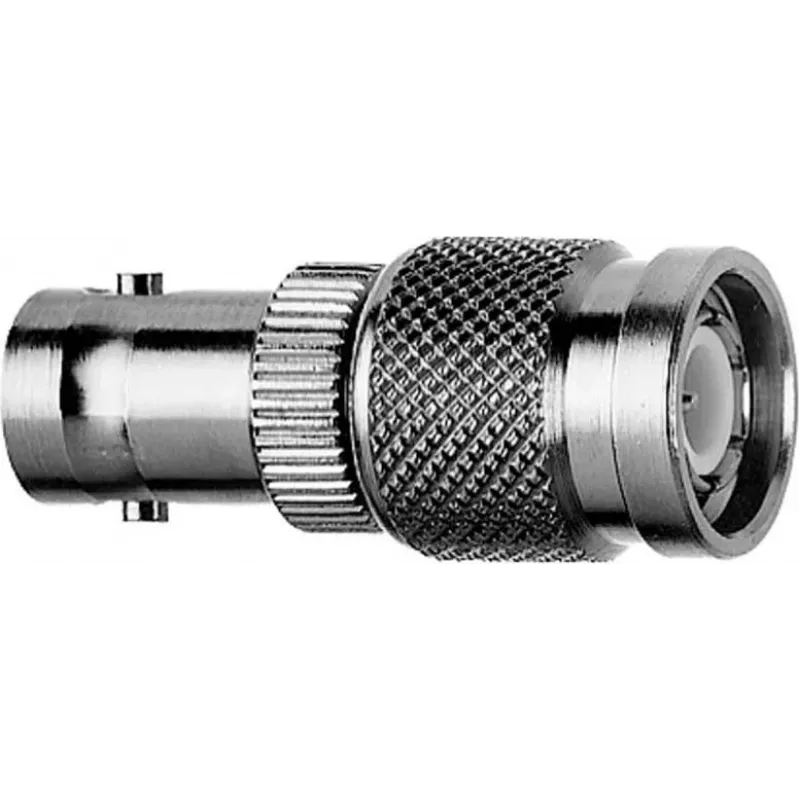

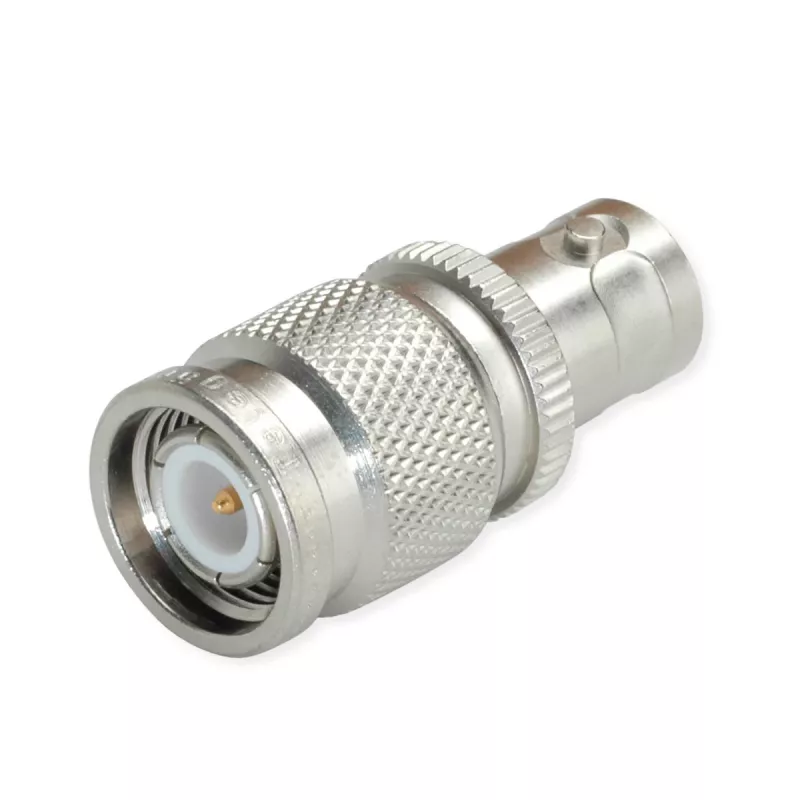

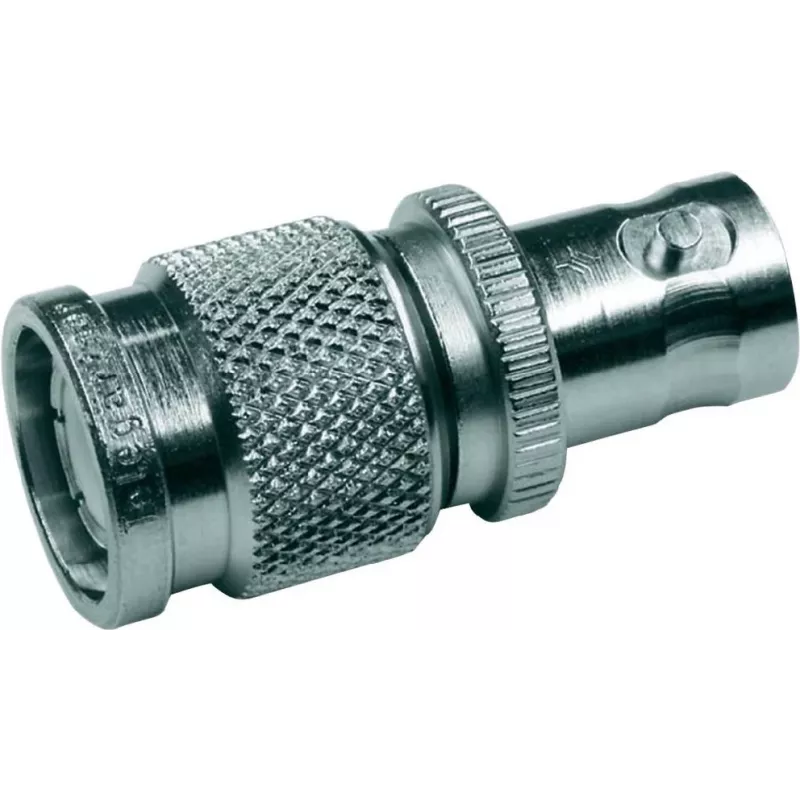

Telegärtner Adaptador conector hembra BNC a conector macho TNC, 50 ohmios, latón niquelado, DC-4 GHz, recto

Connect BNC and TNC interfaces without signal loss using this Telegärtner adapter. It converts a BNC female port to a TNC male plug, solving compatibility issues between equipment with different RF connector types.

Who is it for

RF technicians, network engineers, and electronics hobbyists who need to interconnect BNC and TNC systems in test setups, antenna lines, or legacy equipment.

Main features

• BNC female (jack) to TNC male (plug) straight adapter
• 50 Ohm impedance for RF applications
• Frequency range DC to 4 GHz
• Low VSWR ≤ 1.25 across the band
• Nickel-plated brass body for durability
• Gold-plated inner conductor for reliable contact
• PTFE insulator for high-temperature performance
• Operating temperature -55 °C to +155 °C

Specifications

• Connector 1: BNC female
• Connector 2: TNC male
• Impedance: 50 Ω
• Frequency band: DC - 4 GHz
• VSWR: ≤ 1.25
• Dielectric withstanding voltage: 1500 Veff
• Insulation resistance: ≥ 5 GΩ
• Contact resistance inner: ≤ 1.5 mΩ
• Contact resistance outer: ≤ 1 mΩ
• Body material: brass, nickel-plated
• Inner conductor: brass, gold-plated
• Insulator: PTFE
• Operating temperature: -55 °C to +155 °C

Tips

Ensure both connectors are clean before mating. For outdoor use, protect the connection with weatherproofing tape or a boot.
