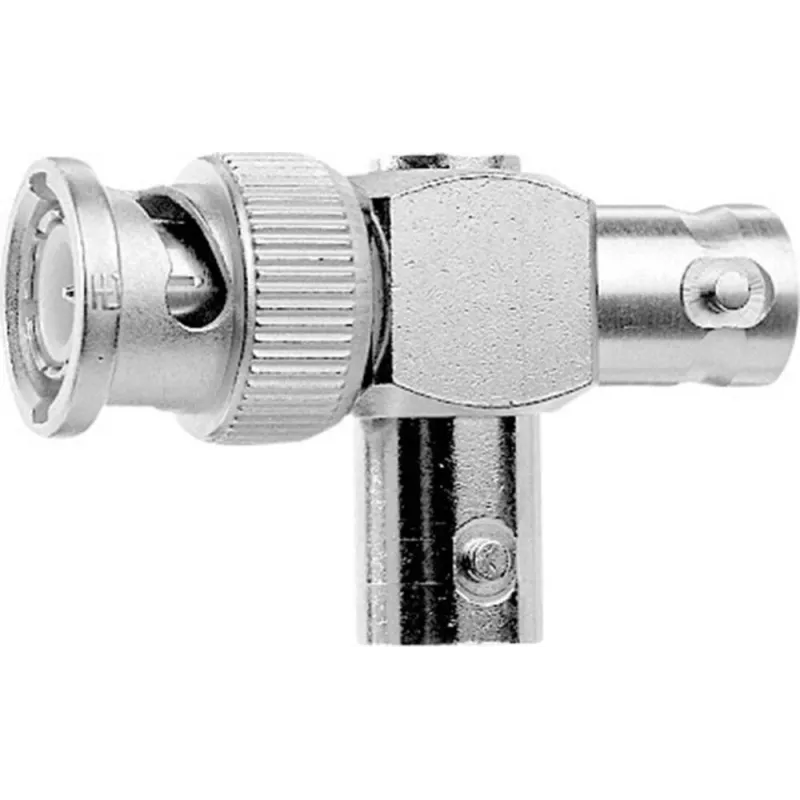

Telegärtner adaptador en T BNC, conector macho BNC a 2x conector hembra BNC, 50 ohmios, latón niquelado, contactos dorados J01005A0004

When a single BNC signal must feed two devices or two sources must be combined, a reliable T-adapter is essential. This Telegärtner BNC T-adapter splits one BNC connection into two, maintaining a constant 50 Ohm impedance for clean signal distribution in video, RF, and test environments.

Who is it for

System integrators, broadcast technicians, and RF engineers who need to split a BNC signal without introducing reflections or signal loss. Ideal for CCTV, instrumentation, and telecommunications where space is limited and performance is critical.

Main features

• One BNC male to two BNC female connections
• 50 Ohm impedance for optimal signal integrity
• Nickel-plated brass body for durability and corrosion resistance
• Gold-plated center contacts ensure low contact resistance
• PTFE insulator for high-frequency stability
• Frequency range DC to 4 GHz
• Operating temperature -40 °C to +85 °C

Specifications

• Connector 1: BNC male
• Connector 2: BNC female (x2)
• Impedance: 50 Ω
• Housing material: Brass, nickel-plated
• Center contact material: Brass, gold-plated
• Insulator material: PTFE
• Frequency range: DC to 4 GHz
• Voltage rating: 500 V RMS
• Contact resistance inner: ≤ 1.5 mΩ
• Contact resistance outer: ≤ 1 mΩ
• Insulation resistance: ≥ 5 GΩ
• VSWR (DC to 2 GHz): ≤ 1.25
• VSWR (2 to 4 GHz): ≤ 1.35
• Durability: ≥ 500 mating cycles

Tips

For best performance, ensure all mating connectors are also 50 Ohm BNC types. Tighten the coupling nuts securely to avoid signal leakage. Avoid excessive bending or strain on the adapter to prolong connector life.
