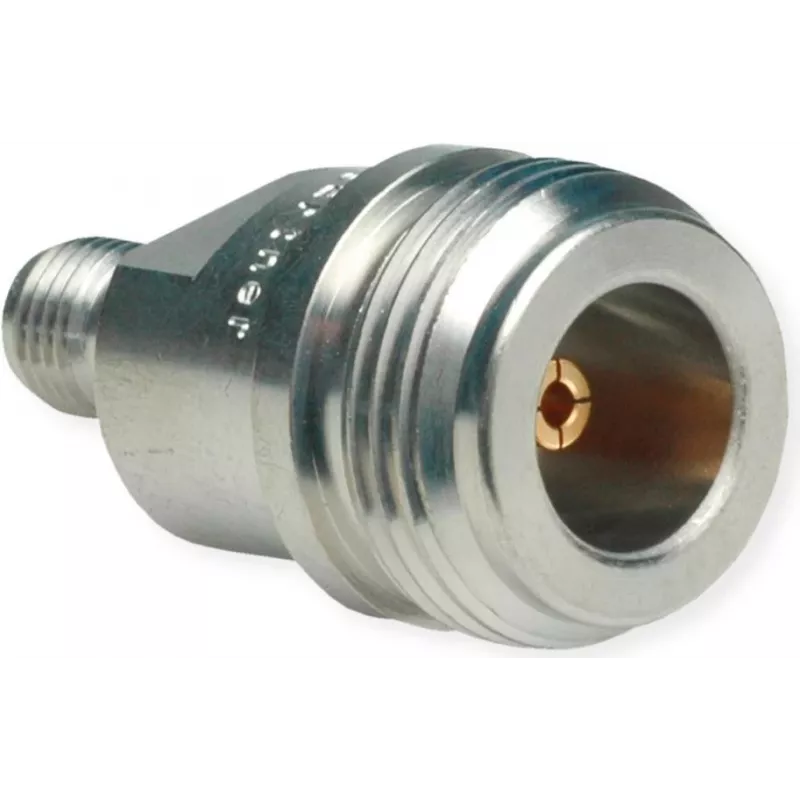

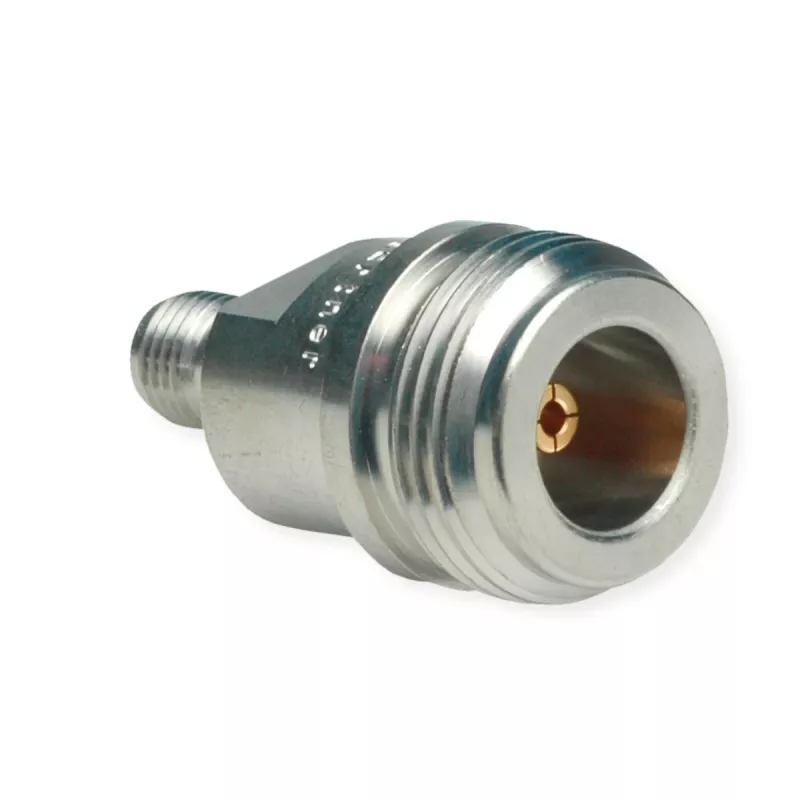

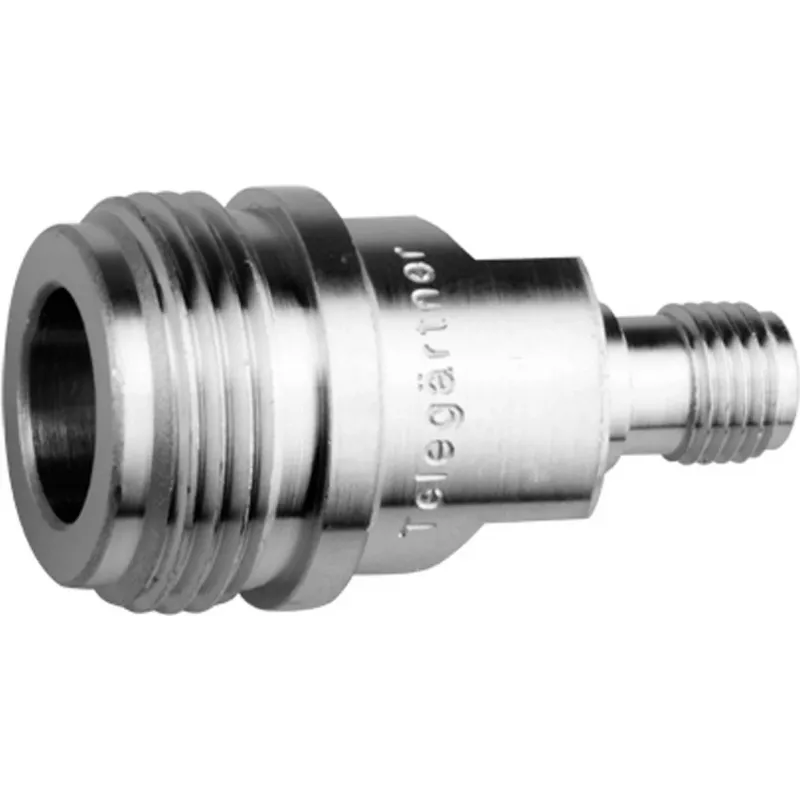

Telegärtner Adaptador N-SMA 50 ohmios hembra-hembra 100024202

RF coaxial adapter with N female to SMA female interface, providing a 50 Ohm impedance match for reliable signal transfer up to 11 GHz. The straight body is made of nickel-plated brass, while the inner conductors are gold-plated for low contact resistance and high mating cycle durability.

Advantages

Gold-plated inner contacts ensure minimal signal loss and corrosion resistance. PTFE insulation supports stable performance across a wide temperature range from -40°C to +85°C. The adapter maintains a VSWR of ≤ 1.3 at 11 GHz, ensuring efficient power transmission.

Suitable for

• Connecting N-type and SMA-type equipment in test and measurement setups
• Antenna and RF systems requiring a straight in-line adapter
• Laboratory and field applications where low insertion loss is critical

Key specifications

• Connector 1: N-Type Female (Jack)
• Connector 2: SMA-Type Female (Jack)
• Impedance: 50 Ohm
• Frequency range: DC to 11 GHz
• Body material: Brass, nickel plated
• Inner conductor material: Brass, gold plated
• Insulator: PTFE
• Operating temperature: -40°C to +85°C
• Mating cycles: ≥ 500

Recommendations

For best performance, ensure connectors are clean and properly torqued. This adapter is suitable for both indoor and outdoor use when protected from moisture.
