Telegärtner AMJ-SL Toma de conexión RJ45 de superficie de 2 puertos Cat.6A apantallada, blanco puro

Engineered for 10 Gigabit Ethernet, this Telegärtner AMJ-SL outlet delivers up to 500 MHz bandwidth with fully shielded RJ45 modules, ensuring error-free transmission in demanding network environments. Its die-cast zinc housing provides superior EMI protection, while integrated dust flaps keep contacts clean when not in use.

Overview

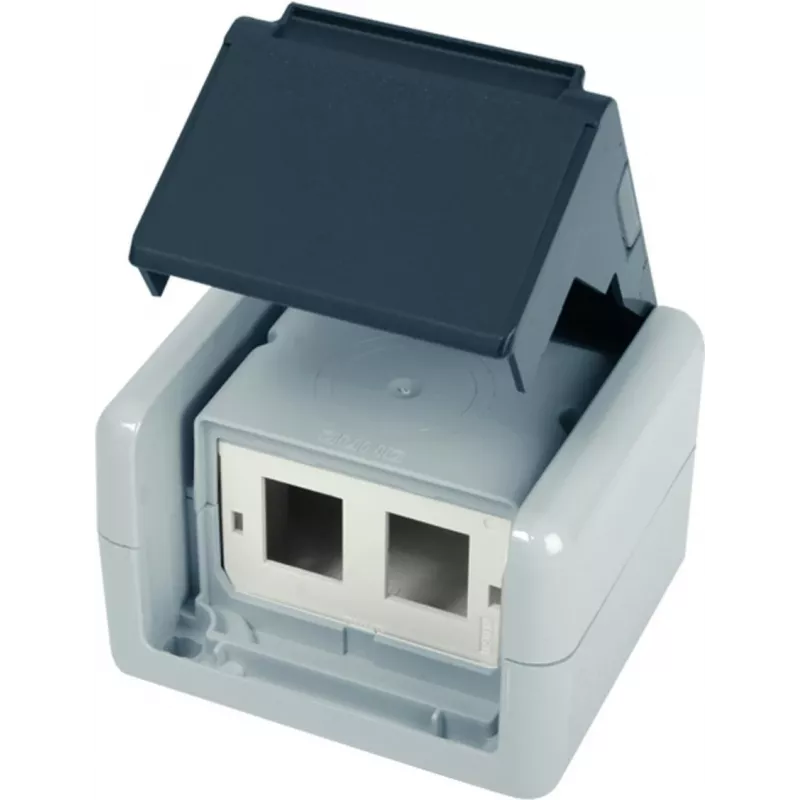

The Telegärtner AMJ-SL is a surface-mount network outlet featuring two shielded RJ45 jacks, each supporting Cat.6A / Class EA performance. It is ideal for structured cabling in offices, industrial settings, and residential installations where reliable high-speed connectivity is required. The outlet is designed for direct wall mounting and includes a central plate with frame for a clean, professional appearance.

What stands out

• Supports 10GBASE-T up to 500 MHz for future-proof performance.
• Fully shielded die-cast zinc modules minimize alien crosstalk.
• Integrated dust protection flaps maintain contact integrity.
• Tool-free termination with LSA-Plus compatible IDC terminals.
• Supports Power over Ethernet up to 100W (4PPoE).
• Pure white (RAL 9010) finish blends with any décor.

Technical details

• Connector type: RJ45 (8P8C), shielded
• Number of ports: 2
• Network category: Cat.6A (Class EA)
• Transmission frequency: up to 500 MHz
• Wiring scheme: T568A / T568B
• Termination: LSA-Plus compatible IDC, tool-free
• Housing material: die-cast zinc (module), plastic (frame/cover)
• Contact plating: gold
• Cable entry: straight (180°)
• Mounting type: surface mount
• Operating temperature: -10°C to +60°C
• Standards: ISO/IEC 11801 Ed.2.2, EN 50173-1, TIA/EIA-568-C.2
• PoE support: PoE, PoE+, 4PPoE (IEEE 802.3af/at/bt)

Our verdict

A premium choice for high-density 10G deployments, the AMJ-SL combines robust shielding, easy installation, and elegant design in one compact outlet.
