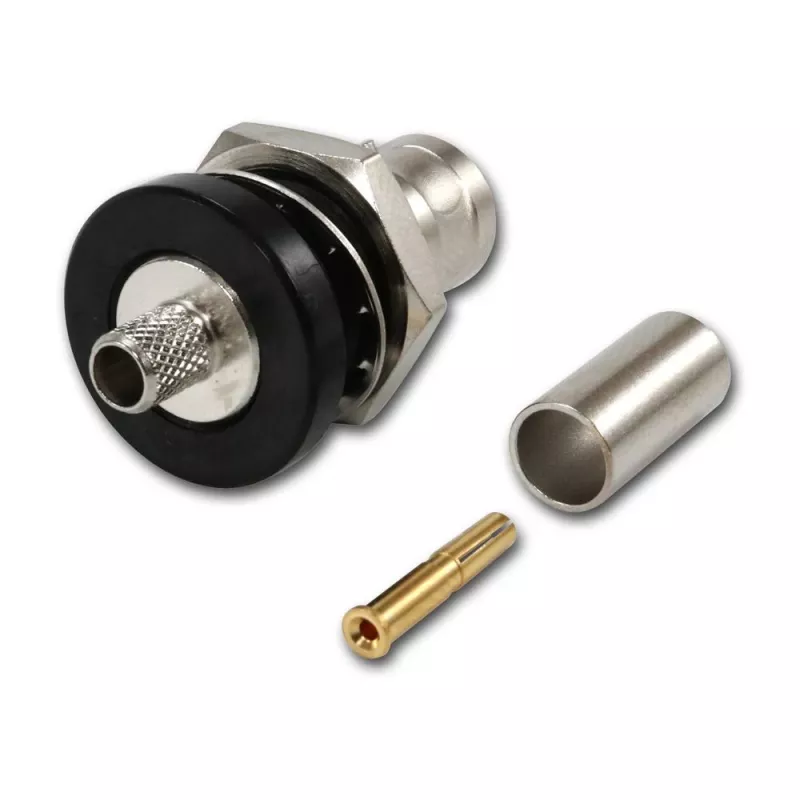

Telegärtner BNC conector hembra de cable crimp G01 50 Ohm, crimp/crimp, brida aislada, A1305, Z04, G01 (RG-58 C/U) - 5 uds.

This BNC cable jack from Telegärtner delivers a 50 Ohm impedance across a DC to 4 GHz frequency range, making it a reliable choice for RF and coaxial connections. The crimp/crimp termination for both center and outer conductors ensures a secure, durable connection to RG-58 C/U cable.

Overview

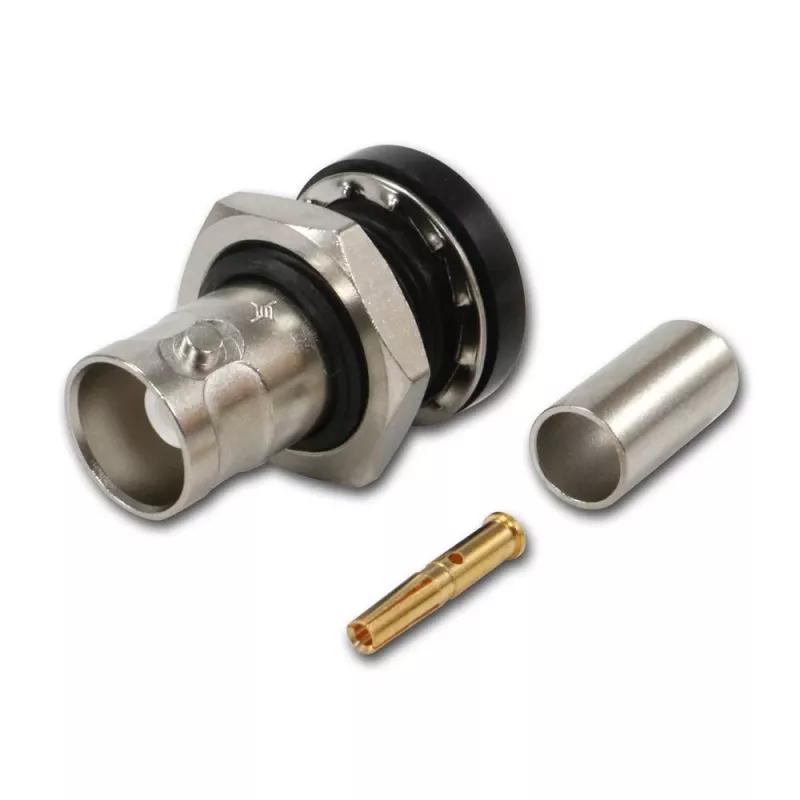

The Telegärtner BNC cable jack (model 100023374) is a panel-mount connector with an insulated flange, designed for professional installations where electrical isolation from the panel is required. It belongs to the A1305 series and is engineered for RG-58 C/U cable (cable group G01). The connector features a nickel-plated brass body and gold-plated brass contacts, with PTFE insulation for excellent high-frequency performance.

What stands out

• Wide frequency range: DC to 4 GHz
• 50 Ohm impedance for standard RF applications
• Crimp termination for both center and outer conductors
• Insulated flange prevents ground loops
• Gold-plated contacts ensure low contact resistance and corrosion resistance

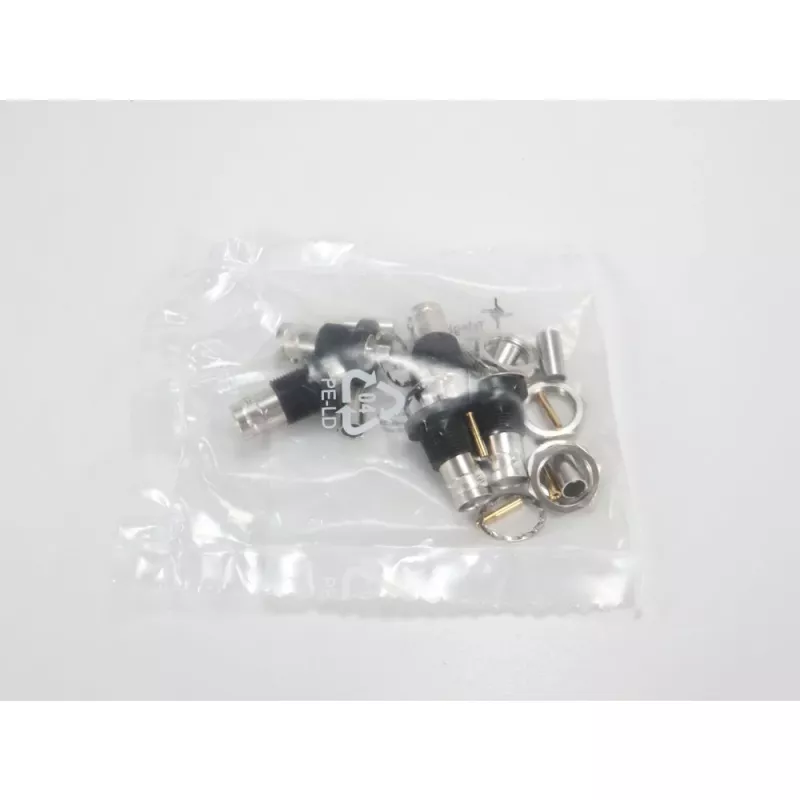

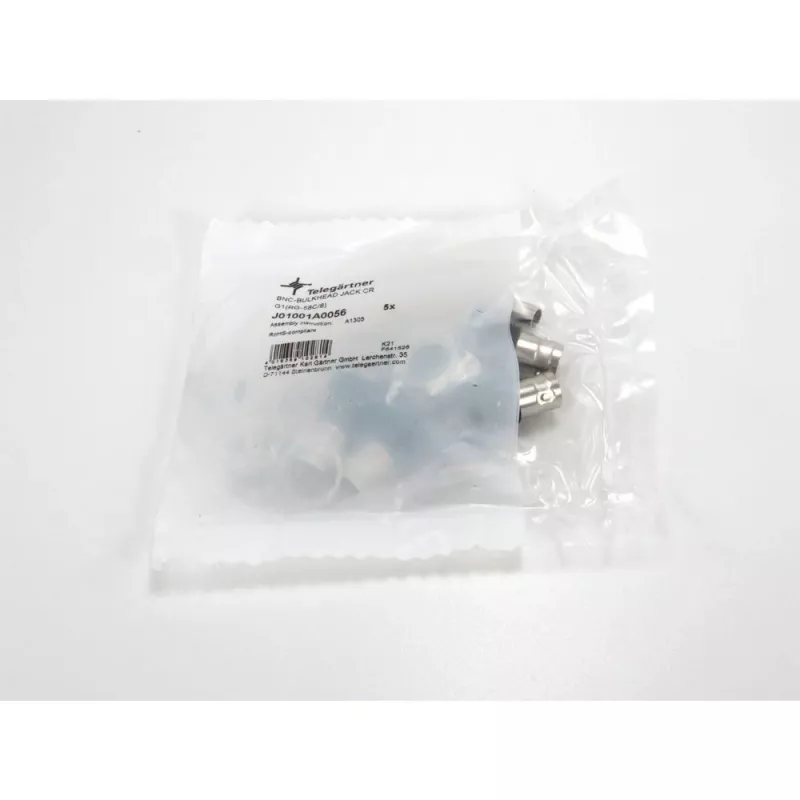

• Supplied in a pack of 5 pieces

Technical details

• Connector type: BNC
• Gender: Jack (female)
• Impedance: 50 Ohm
• Mounting type: Panel mount with insulated flange
• Termination: Crimp (center and outer)
• Compatible cable: RG-58 C/U (group G01)
• Body material: Brass, nickel plated
• Contact material: Brass, gold plated
• Insulator: PTFE
• Frequency range: DC to 4 GHz
• Voltage rating: 500 V RMS
• Operating temperature: -40°C to +85°C
• RoHS compliant

Our verdict

A professional-grade BNC jack that combines robust construction with precise RF performance, ideal for panel-mount applications requiring electrical isolation.
