Conector coaxial SMC DeLOCK 65860

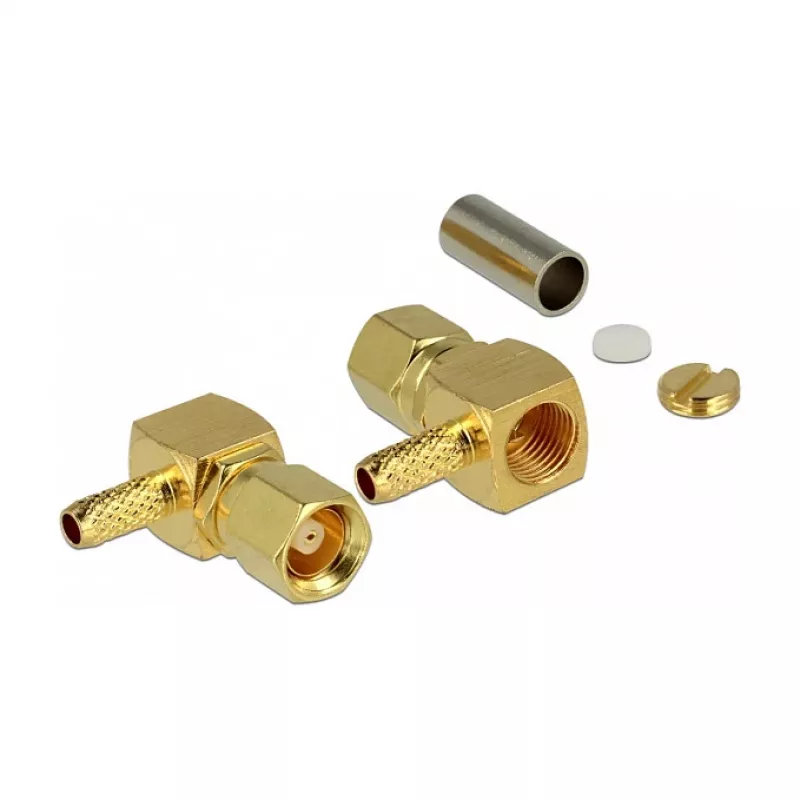

The DeLOCK 65860 is a 50 Ω male SMC coaxial connector with a 90° angled design and compact dimensions (12.5 mm width, 15.5 mm depth, 6.5 mm height). Finished in gold colour and supplied in a polybag, it is intended for reliable connections in radio frequency systems and for use where space is limited.

Advantages

The angled male SMC design provides a secure 50 Ω connection while saving space in confined installations. Compact dimensions allow installation in tight enclosures or on crowded panels. Gold-coloured plating improves corrosion resistance and contact reliability in typical RF environments. Supplied in a polybag for basic protection during storage and transport.

Suitable for

• Connecting RF components in communication equipment
• Use in test setups and measurement fixtures
• Integration into compact or densely populated electronic assemblies
• Adapter and interface applications requiring a 50 Ω SMC male connector

Key specifications

• Impedance: 50 Ω
• Connector type: male SMC
• Angle: 90°
• Dimensions (W × D × H): 12.5 × 15.5 × 6.5 mm
• Colour/finish: Gold
• Packaging: polybag
• Brand: DELOCK
• MPN: 65860
• EAN: 4043619658602

How to use

Align the male SMC connector with the corresponding female SMC jack and push until the coupling engages. Ensure proper mating to maintain the 50 Ω impedance and prevent signal reflections. Use appropriate cable routing to avoid excessive bending or mechanical stress on the 90° connector. Verify connection integrity with appropriate RF test equipment after installation.

Recommendations

For best performance, use with 50 Ω RF components and avoid exposure to harsh mechanical impact. Store in the supplied polybag until installation to reduce contamination; if necessary, clean contacts with suitable contact cleaner before mating.
