Telegärtner BNC conector hembra empotrable 75 Ohm, Z04 - 5 uds. J01003A0027

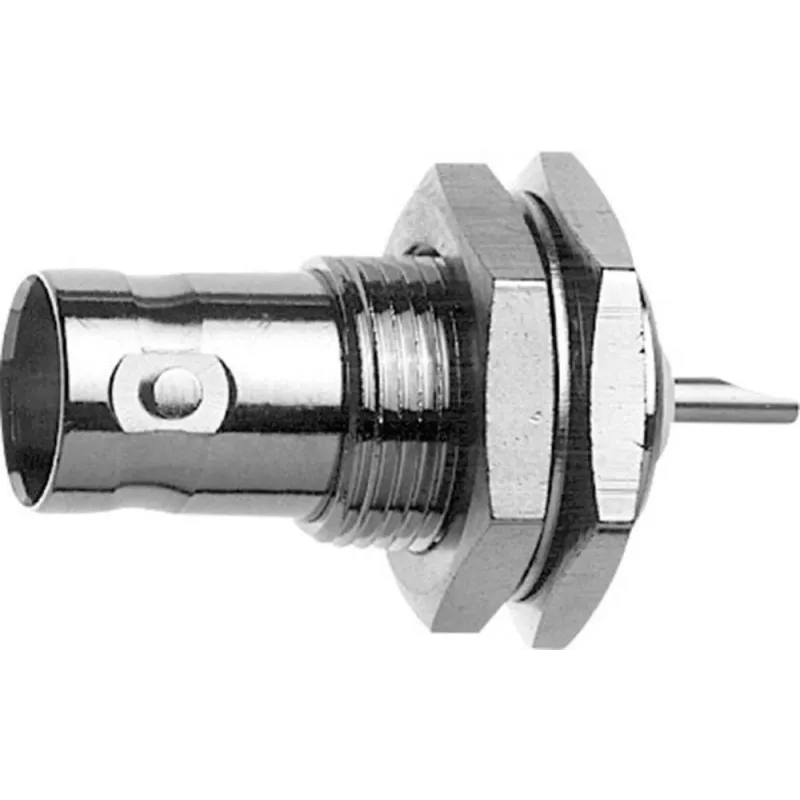

The Telegärtner BNC bulkhead jack stands out for its precision 75 Ohm impedance, making it a reliable choice for RF and video signal connections where consistency matters. Sold as a pack of five, it is ready for installations that require multiple panel-mounted terminations.

Highlights

• BNC jack (female) with solder termination for secure center contact
• 75 Ohm impedance, DC to 1 GHz frequency range
• Panel mount design with 12.7 mm mounting hole
• Gold-plated beryllium copper center contact, nickel-plated brass body
• Pack of 5 pieces

In daily use

This bulkhead jack is built for straightforward panel mounting in broadcast, CCTV, or test equipment. The solder termination allows a durable connection, while the PTFE insulator and gold-plated contacts maintain signal integrity across a wide temperature range from -55°C to +155°C.

Full specifications

• Connector type: BNC
• Gender: Jack (female)
• Impedance: 75 Ohm
• Mounting type: Panel mount (bulkhead)
• Body style: Straight
• Termination method: Solder (center contact)
• Frequency range: DC to 1 GHz
• Voltage rating: 500 V (peak)
• Insulation resistance: ≥ 5 GΩ
• Contact plating: Gold
• Body plating: Nickel
• Insulator material: PTFE
• Body material: Brass
• Contact material: Beryllium copper
• Dielectric withstanding voltage: 1500 Vrms
• VSWR: ≤ 1.2 at 1 GHz
• Operating temperature range: -55°C to +155°C
• Max. panel thickness: 4.5 mm
• Mounting hole diameter: 12.7 mm

Final note

Telegärtner's Z04 series delivers a dependable 75 Ohm BNC interface for professional installations, with all essential specifications verified for this five-piece pack.
