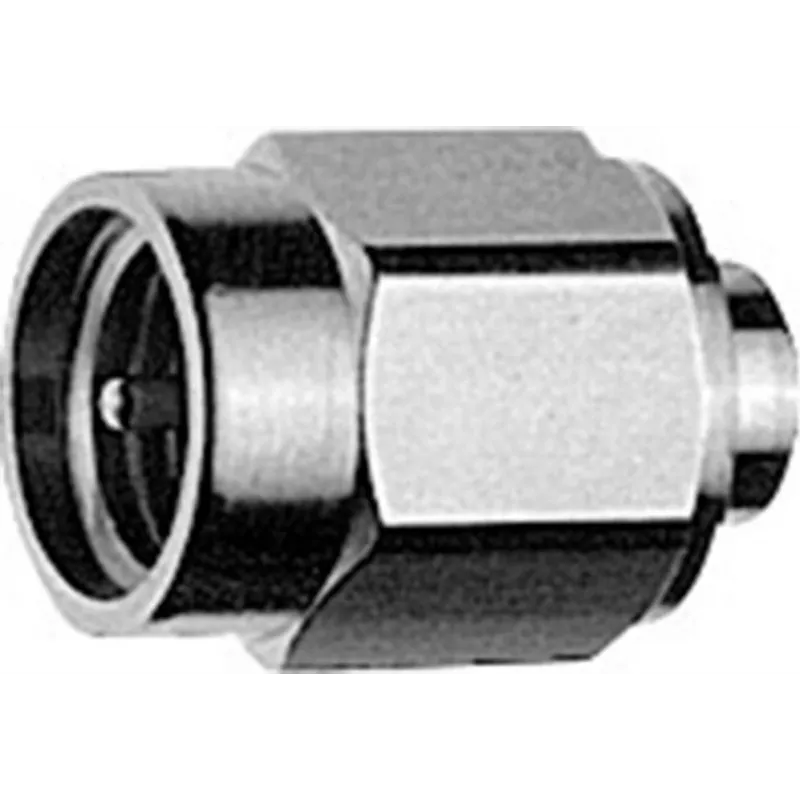

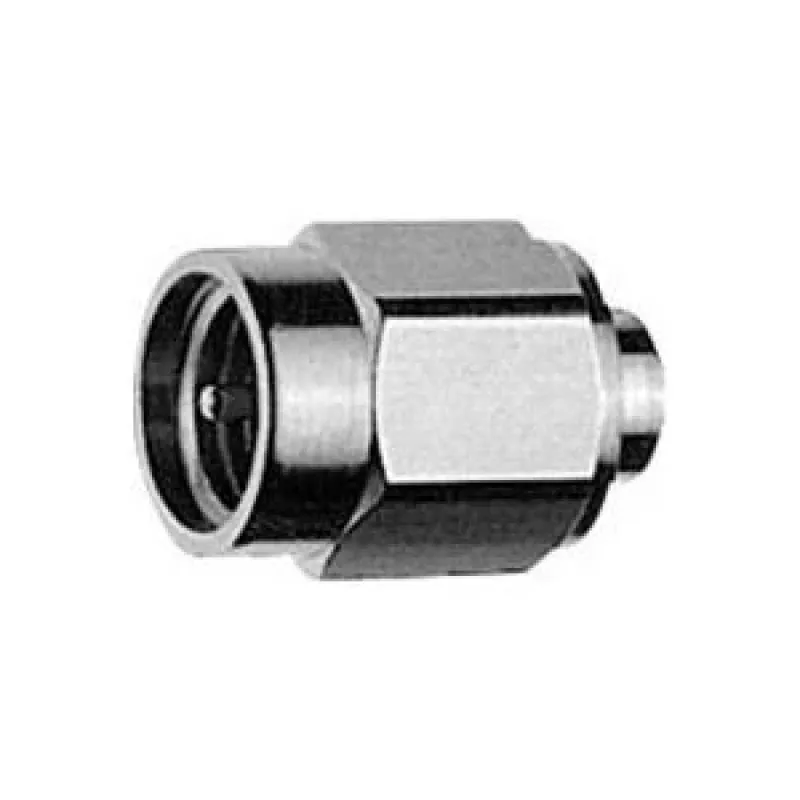

Telegärtner Conector de cable SMA G11 con conductor interior, IP68, C01, G11 (UT-85), dorado (estándar) – pack de 5 J01150A0121

For RF engineers and technicians working with semi-rigid coaxial cable assemblies, the Telegärtner SMA Cable Plug G11 provides a reliable connection for UT-85 cable. This connector is suitable for high-frequency applications up to 18 GHz, such as test and measurement setups, telecommunications equipment, and military or aerospace systems. The gold-plated brass body and contact ensure low contact resistance and excellent corrosion resistance, while the IP68 rating guarantees protection against dust and temporary immersion in water. Each pack contains 5 connectors, with inner conductors included for straightforward termination.

Key specifications

• Connector type: SMA male (plug)
• Compatible cable: Semi-rigid UT-85 (G11)
• Impedance: 50 Ohm
• Frequency range: Up to 18 GHz
• Body material: Brass with gold plating
• Contact plating: Gold
• Insulator: PTFE
• IP rating: IP68
• Termination: Solder/crimp
• Pack size: 5 pieces

Why choose it

The gold plating and IP68 sealing make this connector durable in harsh environments, while the included inner conductor simplifies assembly. It is designed for semi-rigid cable, ensuring stable electrical performance.

Ideal use cases

• RF test and measurement systems
• Telecommunications infrastructure
• Military and aerospace communications
• Outdoor antenna connections requiring waterproofing

Good to know

The connector is part of the Telegärtner G11 series, identified by manufacturer code C01. It is supplied in a pack of 5, making it convenient for batch production or repairs.
