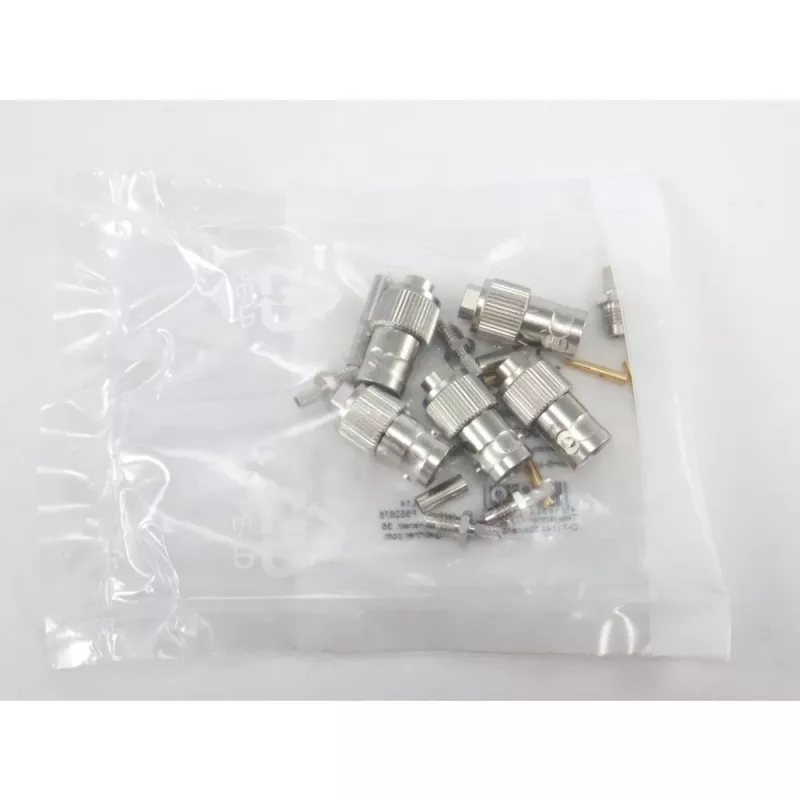

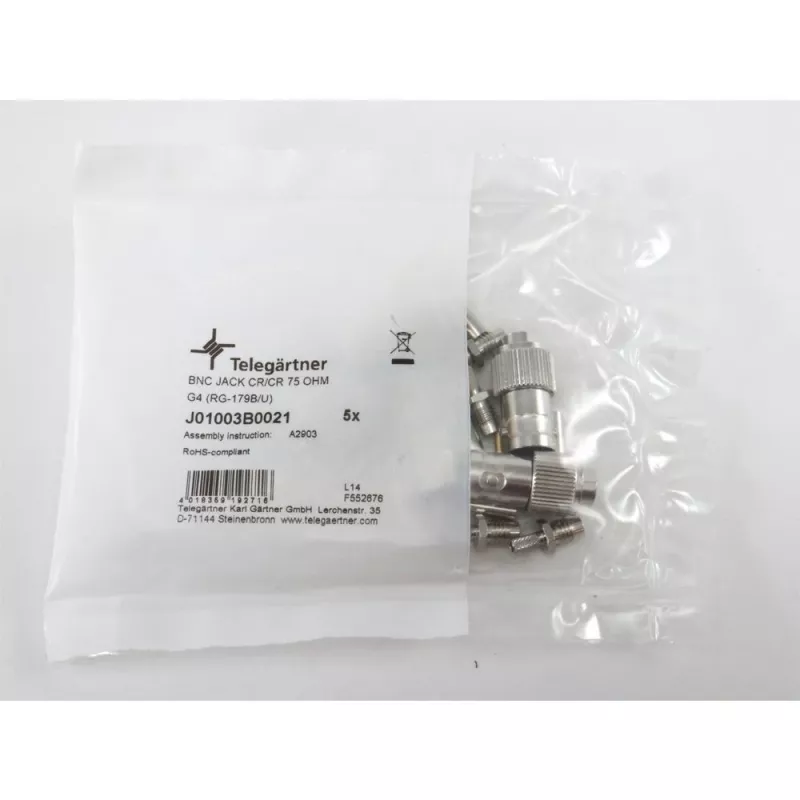

Telegärtner conector hembra BNC de cable crimp G04 75 ohmios para RG-179B/U, pack de 5 J01003B0021

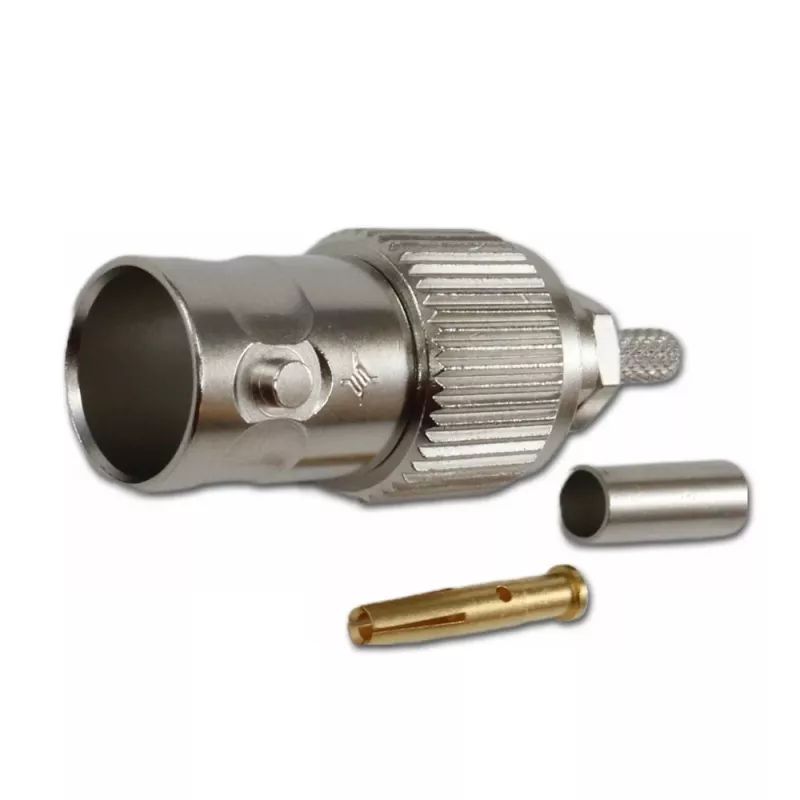

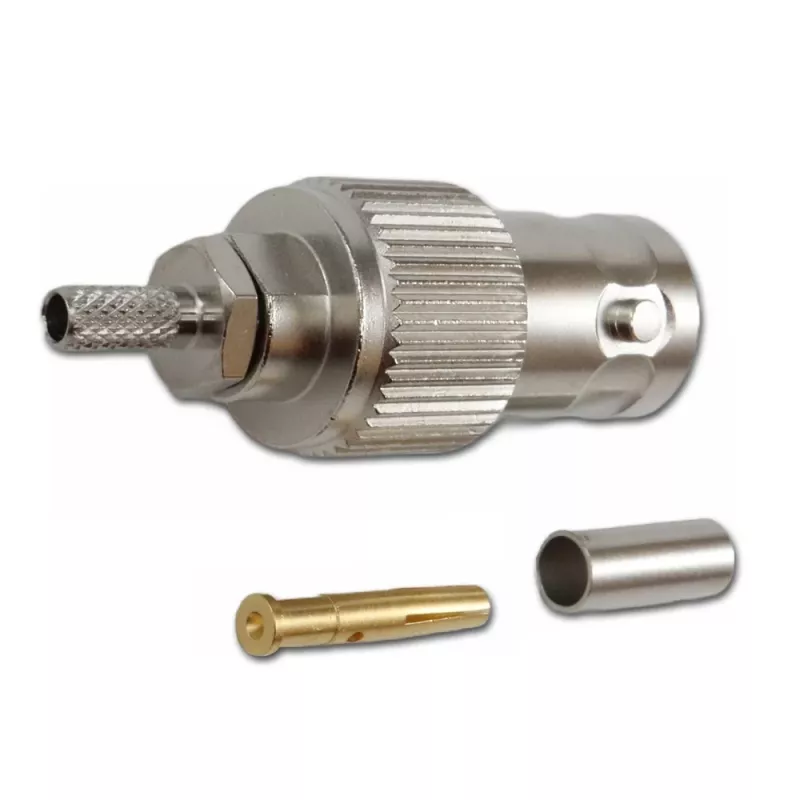

BNC cable jack with crimp termination, engineered for 75-ohm video and RF applications. Compatible with RG-179B/U cable group G04, this connector ensures reliable signal transmission up to 1 GHz.

Advantages

Gold-plated center contact and nickel-plated brass body provide excellent conductivity and corrosion resistance. PTFE insulation delivers stable performance across a wide temperature range from -40°C to +85°C.

Suitable for

• Broadcast and video equipment
• RF signal connections
• Coaxial cable assemblies

Key specifications

• Connector type: BNC jack (female)
• Impedance: 75 Ohm
• Termination: Crimp
• Cable group: G04 (RG-179B/U)
• Frequency range: DC to 1 GHz
• Voltage rating: 500 V rms
• Pack size: 5 pieces

Recommendations

Ensure proper crimping tools are used for secure termination and optimal signal integrity.
