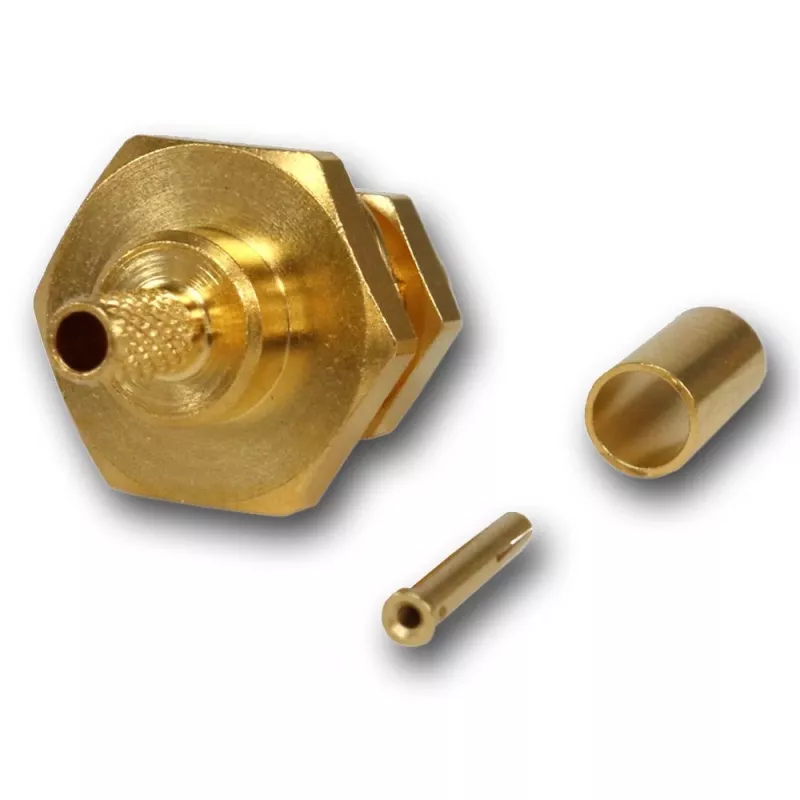

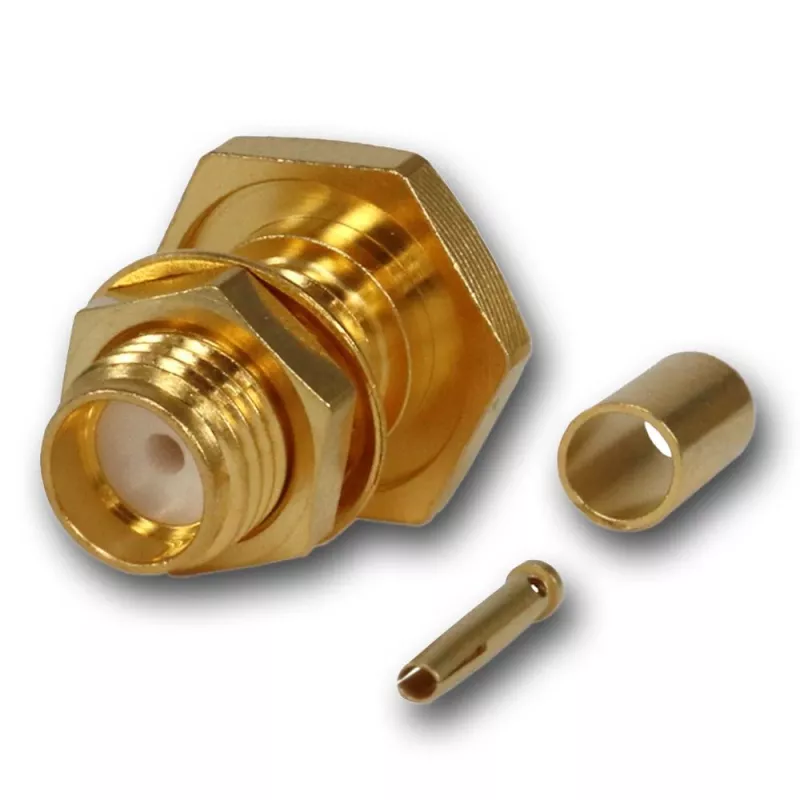

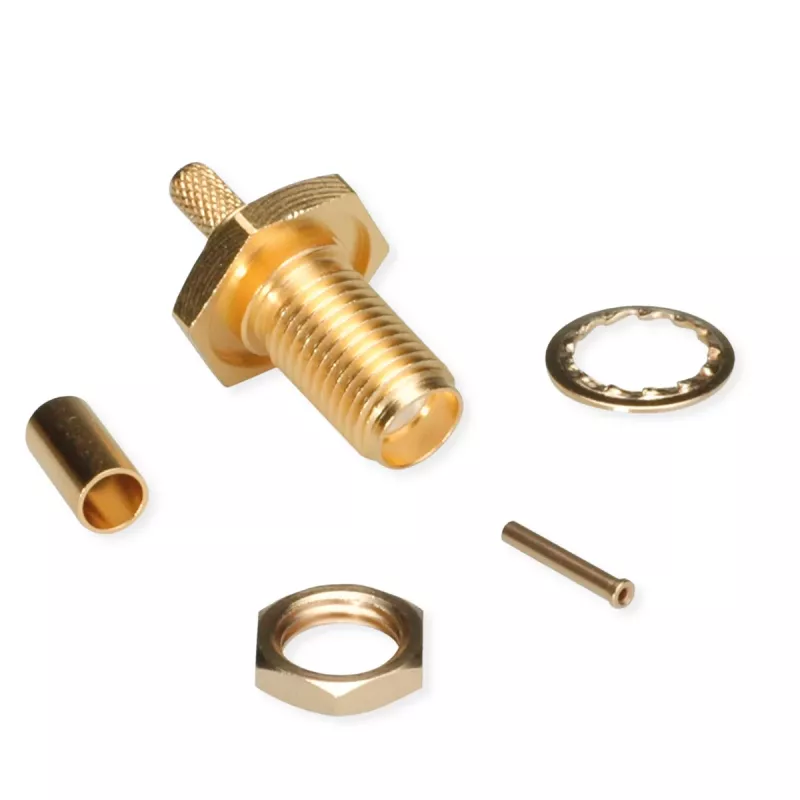

Telegärtner Conector hembra SMA crimp de montaje para RG-316/U, dorado, 50 ohmios, DC-6 GHz J01151A0001Z

This SMA bulkhead jack stands out for its gold-plated body and center contact, ensuring low contact resistance and reliable performance up to 6 GHz. Unlike typical nickel-plated connectors, the gold finish provides superior corrosion resistance and consistent mating over 500 cycles.

Highlights

• Precision crimp termination for RG-316/U and compatible cables (RG-174/U, RG-188/U, LMR-100, ENVIROFLEX 316 D)
• Gold-plated brass body and center contact for low loss and durability
• 50 Ohm impedance with VSWR ≤ 1.25 from DC to 6 GHz
• PTFE insulator supports operating temperatures from -65 °C to +165 °C
• Bulkhead/panel mount design with female (jack) gender

In daily use

Designed for panel mounting, this connector provides a secure RF interface for coaxial cables in instrumentation, communications, and test setups. The crimp termination ensures a stable connection without soldering, while the gold plating maintains signal integrity even in demanding environments.

Full specifications

• Connector type: SMA
• Gender: Jack (female)
• Mounting type: Bulkhead / panel mount
• Termination method: Crimp
• Cable group: G07
• Compatible cables: RG-174/U, RG-188/U, RG-316/U, LMR-100, ENVIROFLEX 316 D
• Impedance: 50 Ohm
• Frequency range: DC to 6 GHz
• VSWR: ≤ 1.25
• Body plating: Gold
• Contact plating: Gold
• Body material: Brass
• Insulator material: PTFE
• Center contact material: Brass
• Dielectric withstanding voltage: 1000 Veff
• Insulation resistance: ≥ 5 GΩ
• Contact resistance (center): ≤ 3 mΩ
• Contact resistance (outer): ≤ 2 mΩ
• Operating temperature: -65 °C to +165 °C
• Mating cycles: ≥ 500

Final note

Telegärtner's precision manufacturing ensures consistent performance, making this connector a reliable choice for professional RF applications.
