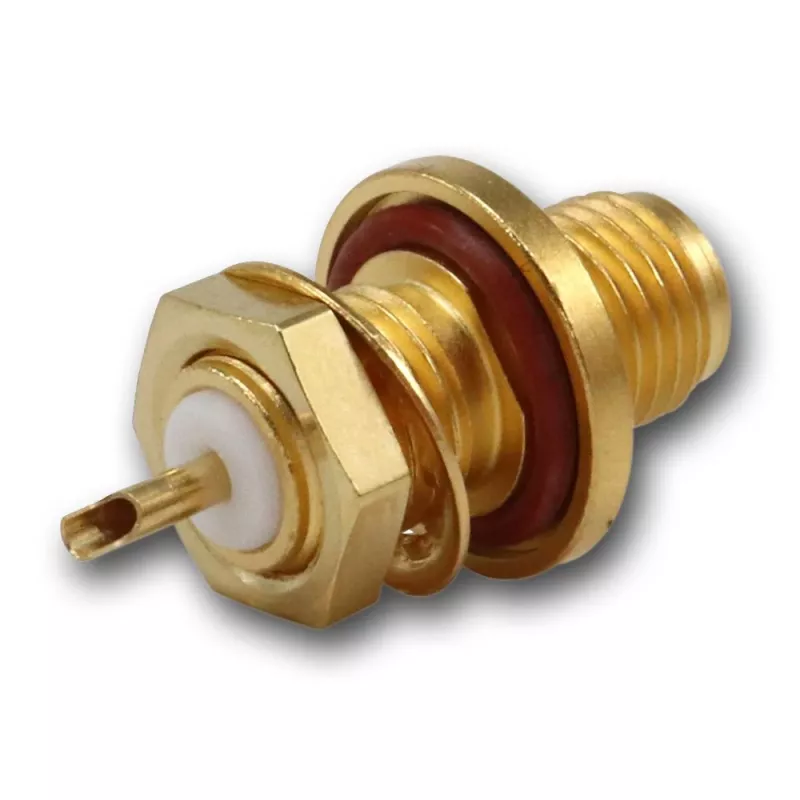

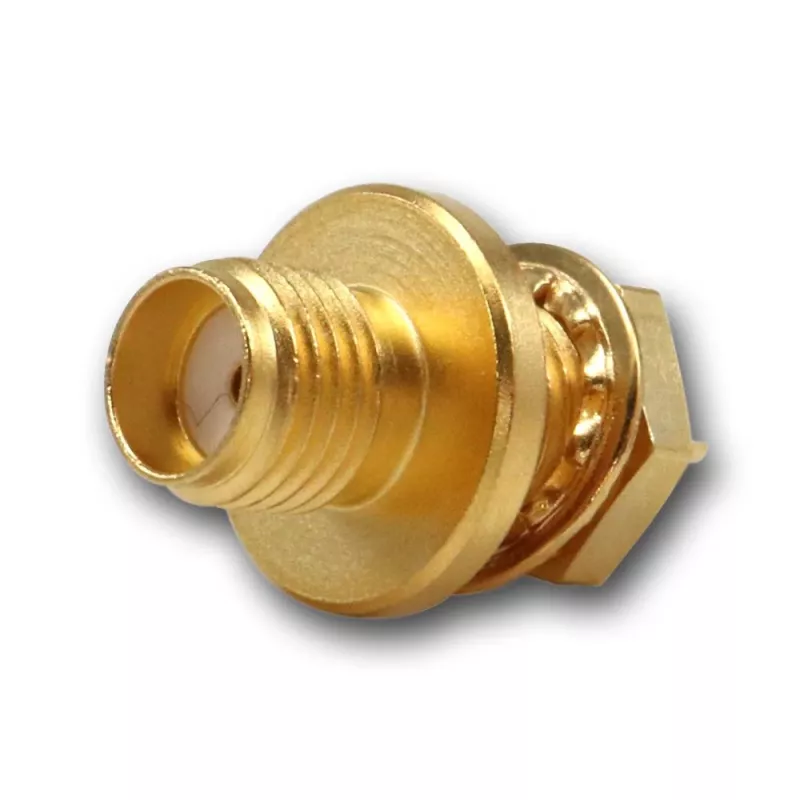

Telegärtner Conector hembra SMA de montaje en panel, montaje frontal, junta de estanqueidad, Z27, dorado, pack de 5 (J01151A1081)

RF performance up to 18 GHz with a low VSWR of ≤ 1.25 at 6 GHz defines this SMA bulkhead jack. The gold-plated brass body and beryllium copper contact ensure reliable signal integrity in demanding applications.

Overview

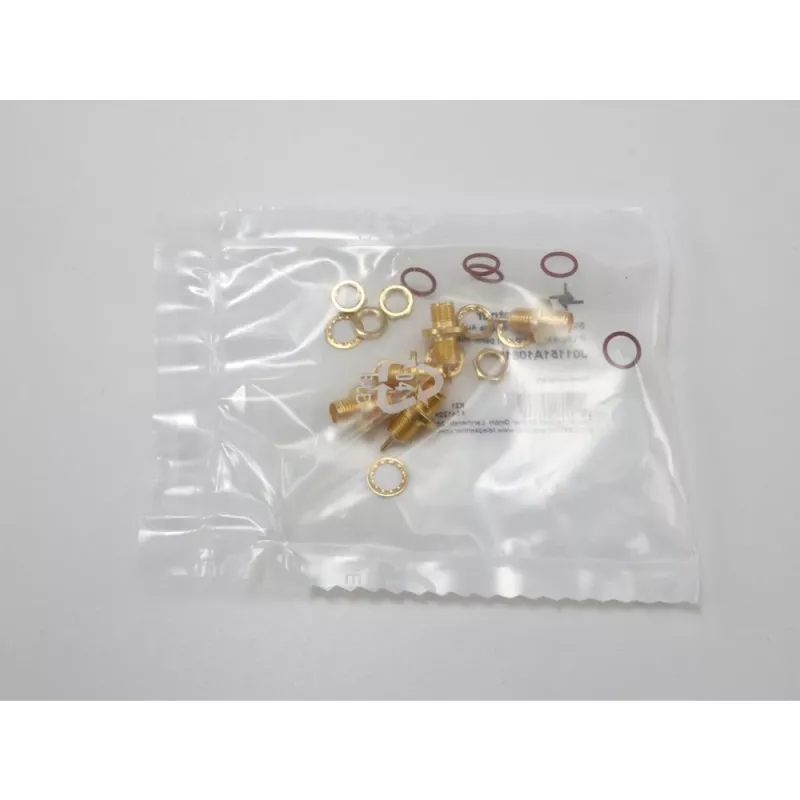

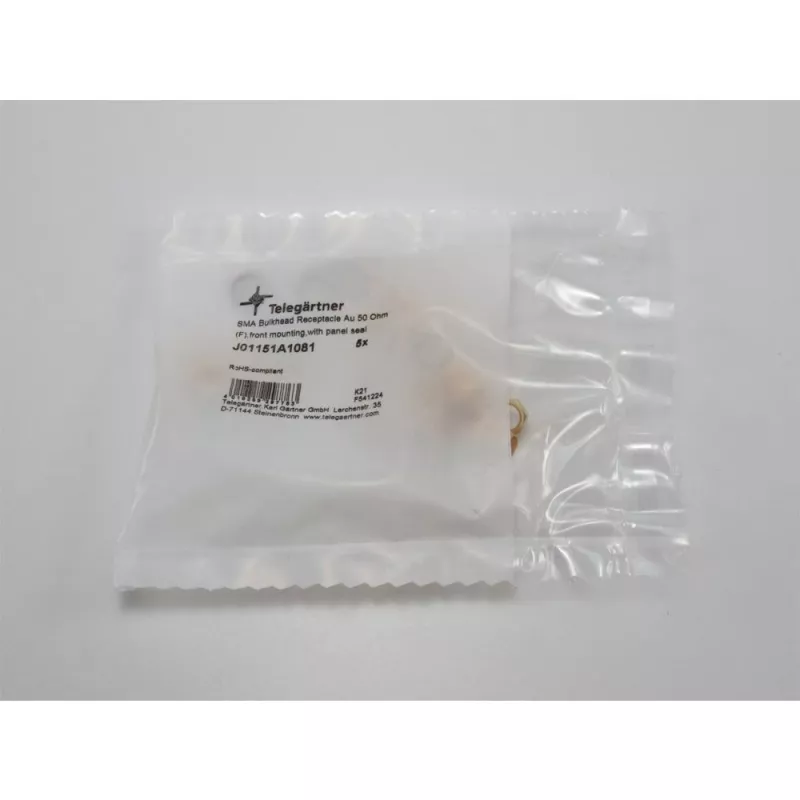

The Telegärtner J01151A1081 is a 50-ohm SMA female connector designed for front panel mounting. It features a bulkhead mount with an M8x0.75 thread and includes a sealing ring for environmental protection. The connector is part of the Z27 series and is supplied in a pack of 5 pieces.

What stands out

• Gold-plated contacts for low contact resistance and corrosion resistance
• PTFE insulator for high-temperature stability and low loss
• Sealing ring included for moisture and dust protection
• Wide operating temperature range from -65 °C to +165 °C
• High durability with 500 mating cycles

Technical details

• Connector type: SMA Jack (Female)
• Mounting type: Bulkhead, front panel mount
• Impedance: 50 Ohm
• Frequency range: DC to 18 GHz
• VSWR: ≤ 1.25 @ 6 GHz
• Dielectric withstanding voltage: 1000 Veff
• Insulation resistance: ≥ 5 GΩ
• Contact resistance: center ≤ 3 mΩ, outer ≤ 2 mΩ
• Body material: Brass, gold-plated
• Insulator: PTFE
• Mounting thread: M8x0.75
• Series: Z27

Our verdict

A precision SMA bulkhead jack built for high-frequency performance and reliable panel mounting. The gold plating and sealing ring make it suitable for professional RF assemblies.
