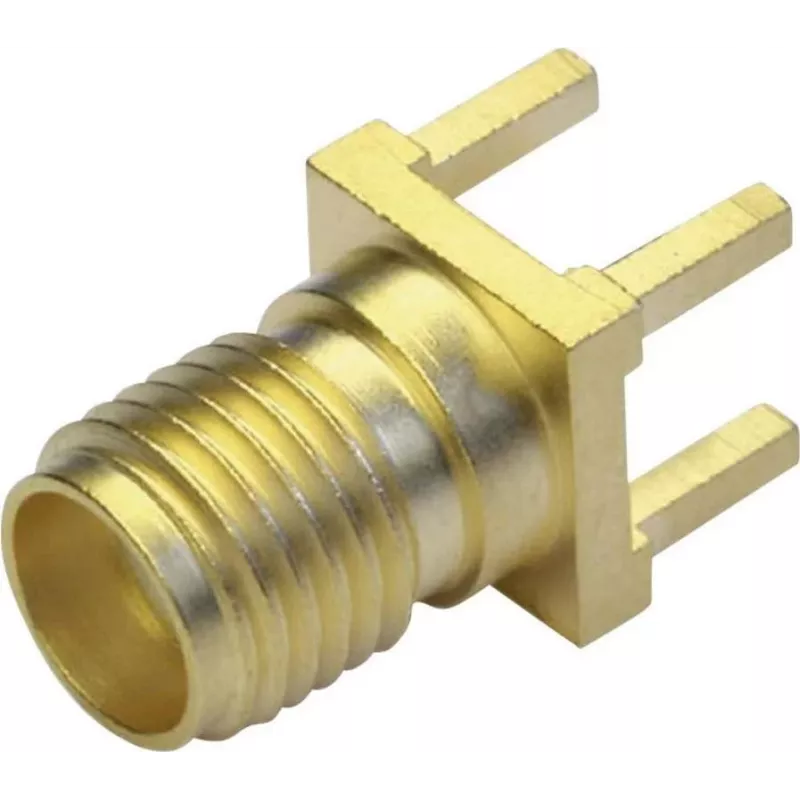

Telegärtner conector hembra SMA para placa de circuito impreso, 50 ohmios, dorado, serie Z79 J01151A0931

For high-frequency PCB connections requiring a reliable 50-ohm interface, this SMA jack connector offers a solder-mount solution with gold-plated contacts and body for consistent signal integrity up to 18 GHz.

Who is it for

Engineers and technicians assembling RF circuits, test equipment, or communication devices where a durable, precision SMA connection is needed on a printed circuit board.

Main features

• SMA series jack (female) connector for PCB mounting
• 50 ohm impedance with PTFE dielectric for stable performance
• Gold-plated body and contact for corrosion resistance and low loss
• Straight orientation, solder termination
• Frequency range DC to 18 GHz, VSWR max 1.2:1 at 18 GHz
• Operating temperature -65°C to +165°C, 500 mating cycles durability

Specifications

• Connector Series: SMA
• Connector Gender: Jack (Female)
• Mounting Type: PCB Mount
• Impedance: 50 Ohm
• Termination Method: Solder
• Contact Plating: Gold
• Body Plating: Gold
• Dielectric Material: PTFE
• Orientation: Straight
• Frequency Range: DC to 18 GHz
• VSWR (Max): 1.2:1 @ 18 GHz
• Insulation Resistance: 5 GΩ min
• Voltage Rating: 335 Vrms
• Operating Temperature: -65°C to +165°C
• Durability: 500 Mating Cycles
• Manufacturer Series: Z79
• Number of Ports: 1

Tips

Ensure PCB footprint matches the connector's solder legs and use appropriate soldering temperature to avoid damaging the PTFE dielectric.
