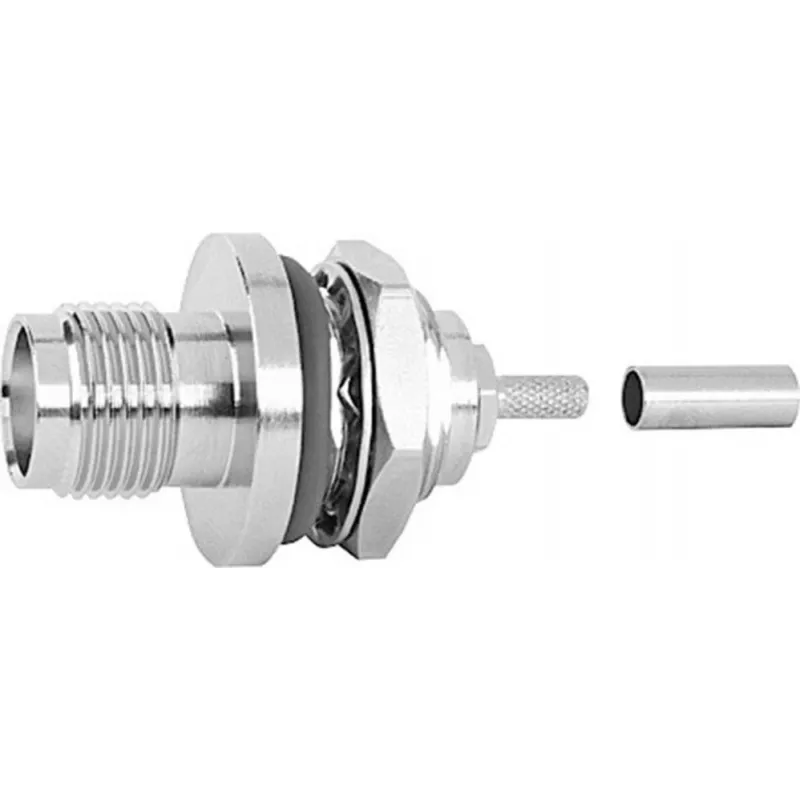

Telegärtner conector hembra TNC para cable crimp G07 50 ohmios, soldadura/crimp, A4016, Z04, G07 (RG-316/U) - 1 unidad (J01011A0058)

With a frequency range up to 11 GHz and a VSWR of just 1.3:1 at 6 GHz, this TNC cable jack delivers exceptional signal integrity for high-frequency applications. Designed for panel mounting, it accepts RG-316/U coaxial cable (group G07) and features a robust crimp cable attachment with solder or crimp center contact for reliable termination.

Overview

The Telegärtner J01011A0058 is a 50 Ohm TNC female connector engineered for precision and durability. Its nickel-plated body and gold-plated contact ensure low contact resistance and corrosion resistance, while the PTFE insulator provides excellent dielectric properties across a wide temperature range from -65°C to +165°C. With a voltage rating of 500 V RMS and 500 mating cycles, it is built for demanding RF environments.

What stands out

• Wide frequency coverage: DC to 11 GHz
• Low VSWR: 1.3:1 max at 6 GHz
• High temperature tolerance: -65°C to +165°C
• Gold-plated center contact for superior conductivity
• Compatible with RG-316/U cable (G07 group)

Technical details

• Connector Series: TNC
• Gender: Jack (Female)
• Impedance: 50 Ohm
• Mounting Type: Panel Mount
• Cable Attachment: Crimp
• Contact Attachment: Solder / Crimp
• Compatible Cable: RG-316/U (Group G07)
• Body Plating: Nickel
• Contact Plating: Gold
• Insulator Material: PTFE
• Frequency Range: DC - 11 GHz
• Voltage Rating: 500 V RMS
• VSWR (Max): 1.3:1 @ 6 GHz
• Operating Temperature: -65°C to +165°C
• Durability: 500 Mating Cycles
• Manufacturer Series Code: A4016, Z04

Our verdict

A high-performance TNC jack for professionals needing reliable RF connectivity in harsh conditions. Its precision construction and wide bandwidth make it a solid choice for instrumentation, telecommunications, and military-grade applications.
