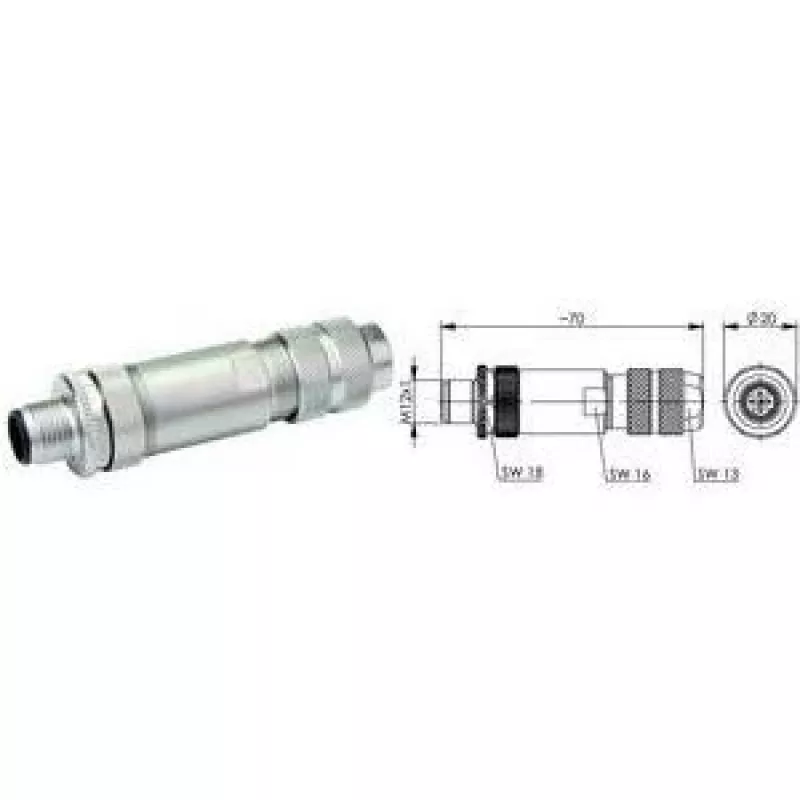

TELEGÄRTNER conector M12 codificación D Cat.5 montaje en campo, 4 polos, apantallado, recto J80026A0200

M12 circular connector with D-coding for industrial Ethernet, delivering reliable Cat.5 performance in a field-attachable, shielded design. Its straight cable outlet and screw locking ensure secure connections in demanding environments.

Advantages

Tool-free IDC termination speeds up on-site assembly without compromising signal integrity. The zinc die-cast nickel-plated housing and gold-plated contacts provide durability and corrosion resistance. With an IP67 rating when mated, it withstands harsh industrial conditions.

Suitable for

• Industrial Ethernet networks (PROFINET, EtherNet/IP)
• Machinery and automation systems requiring robust M12 connectivity
• Field installation where pre-assembled cables are impractical

Key specifications

• Connector type: M12, D-coded, 4-pole
• Ethernet category: Cat.5 (10/100 Mbit/s)
• Shielding: Shielded
• Termination: IDC (insulation displacement)
• Cable outlet: Straight (180°)
• Housing: Zinc die-cast, nickel-plated
• Contacts: Copper alloy, gold-plated
• IP rating: IP67 when mated
• Cable diameter: 4.5 - 8.5 mm
• Operating temperature: -40°C to +85°C
• Rated voltage: 250 V
• Rated current: 4 A
• Locking: M12 screw
• Standard: IEC 61076-2-101

Recommendations

For reliable field termination of shielded Cat.5 industrial Ethernet cables, this connector offers a proven solution with high mechanical and environmental resilience.
