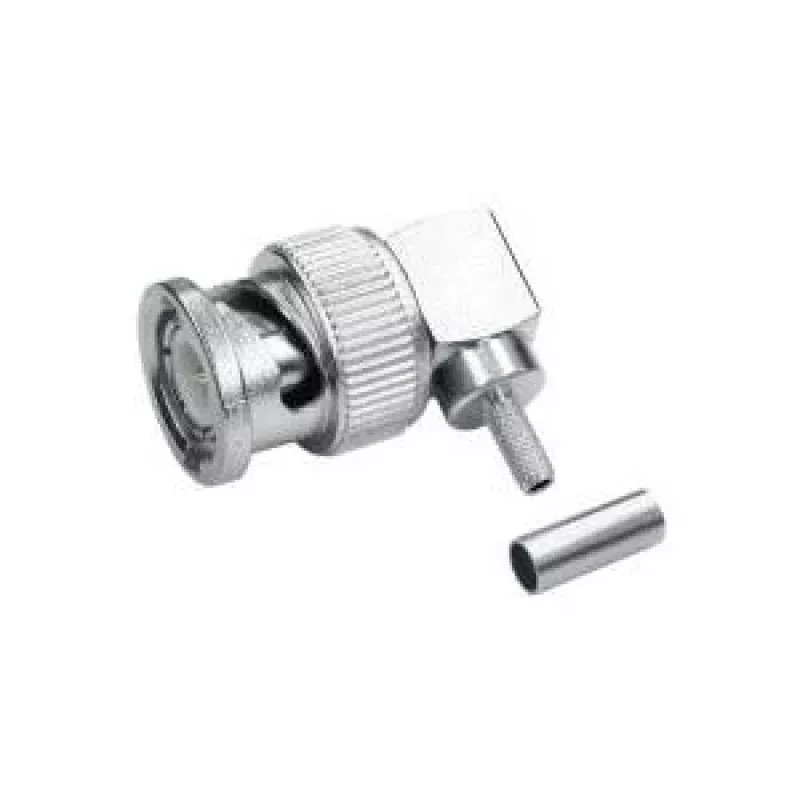

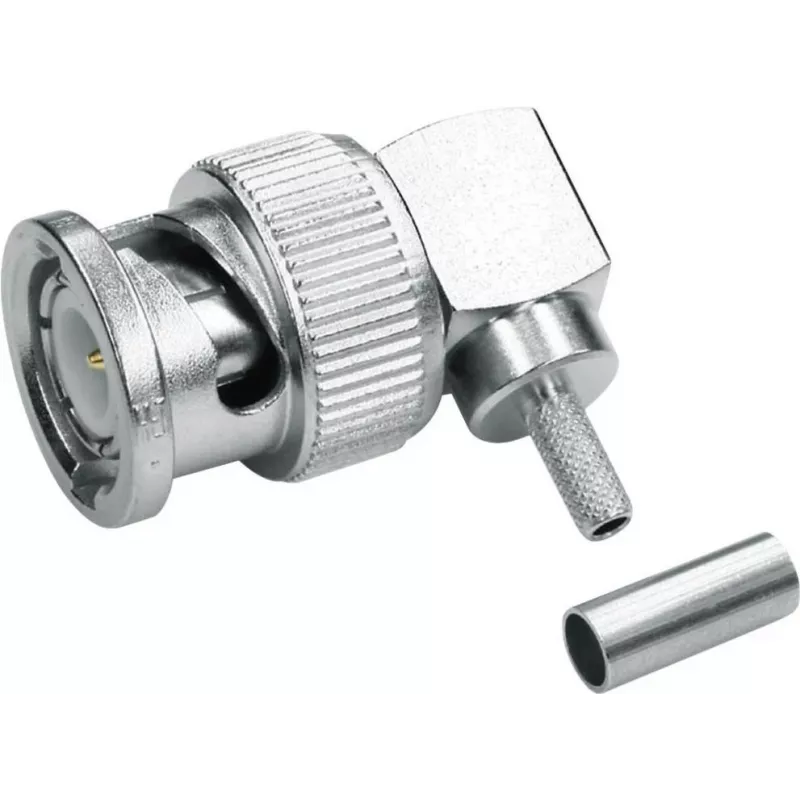

Telegärtner conector macho BNC acodado crimp 75 Ohm para RG-59 B/U, soldadura/crimp, macho, 1 ud. J01002A1356

BNC right-angle cable connector for 75-ohm coaxial cable, featuring a male interface and a 90° body orientation. The centre contact is soldered, while the outer contact is crimped onto RG-59 B/U cable, providing a secure and reliable connection for video and RF signal transmission.

Advantages

The right-angle design allows cable routing in tight spaces, reducing strain on the cable and connector. Solder termination of the centre contact ensures low contact resistance and stable signal integrity, while the crimp outer contact offers fast, repeatable assembly.

Suitable for

• Broadcast and professional video equipment
• RF signal distribution systems
• Coaxial cable assemblies requiring a 90° connection

Key specifications

• Connector type: BNC
• Gender: Male
• Orientation: Right-angle (90°)
• Impedance: 75 Ohm
• Centre contact termination: Solder
• Outer contact termination: Crimp
• Compatible cable: RG-59 B/U
• Telegärtner cable groups: G02, G39, A0506
• Mounting type: Cable mount
• Quantity: 1 piece

Recommendations

Use with precision crimp tools and soldering equipment to achieve optimal electrical performance and mechanical retention.
