Telegärtner conector macho BNC crimp G02 75 Ohm para RG-59B/U, UG-1789/U, macho, pack de 5 J01002A1288Y

Unlike generic BNC connectors that often require soldering or compromise signal integrity, the Telegärtner G02 Professional series delivers a true 75 Ohm crimp/crimp connection for reliable video and RF transmission. This connector is engineered specifically for RG-59B/U cable and conforms to the UG-1789/U standard, ensuring consistent impedance matching and durable termination in professional installations.

Highlights

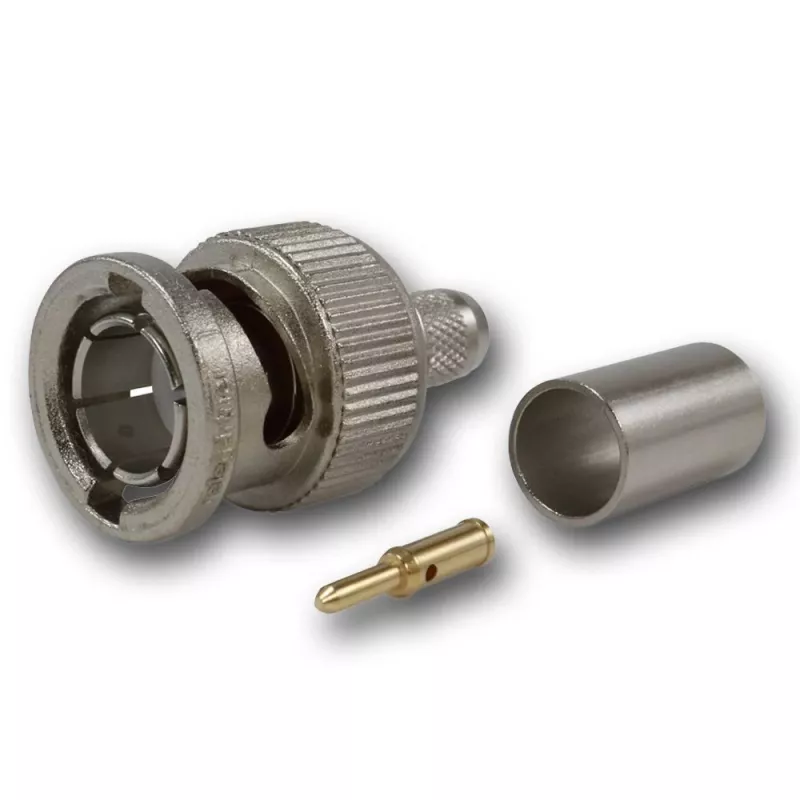

• BNC male (plug) connector with straight body orientation
• 75 Ohm impedance for video and RF signal applications
• Crimp termination for both inner and outer conductor – no soldering required
• Compatible with RG-59B/U coaxial cable
• Complies with UG-1789/U standard designation
• Professional product line, G02 series

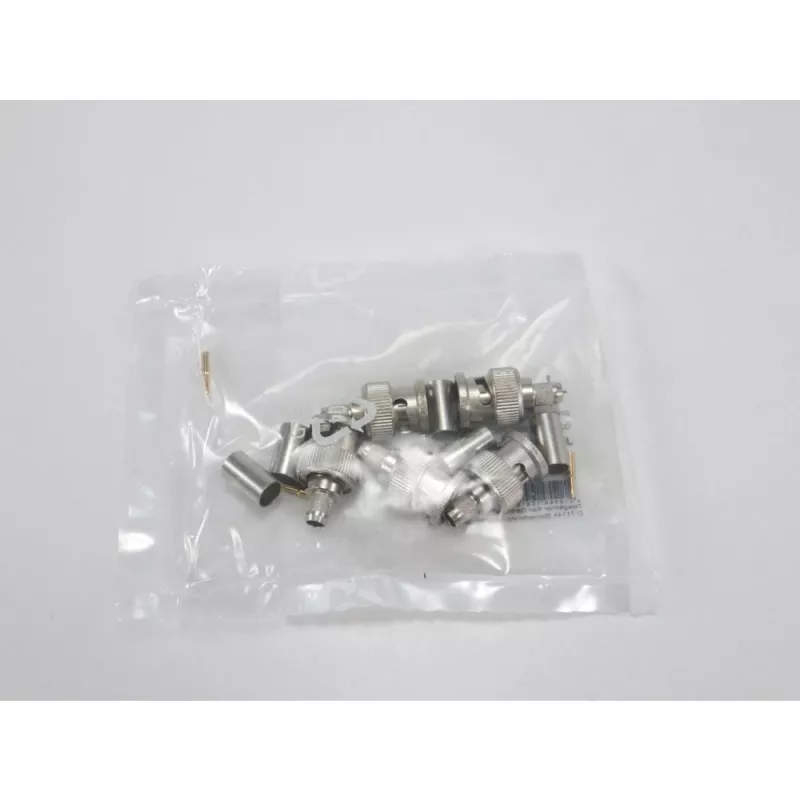

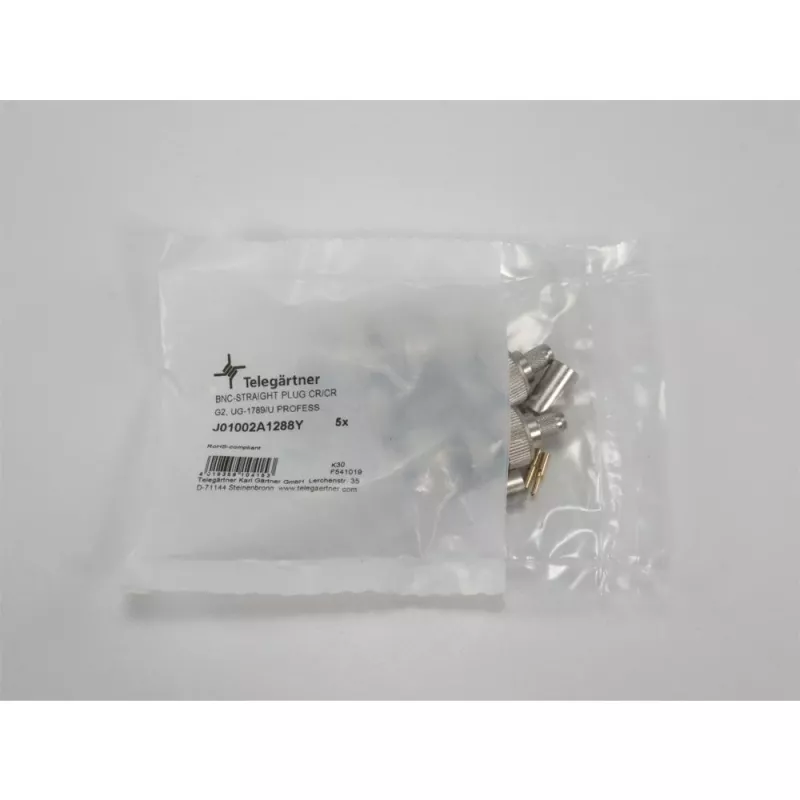

• Pack of 5 connectors

In daily use

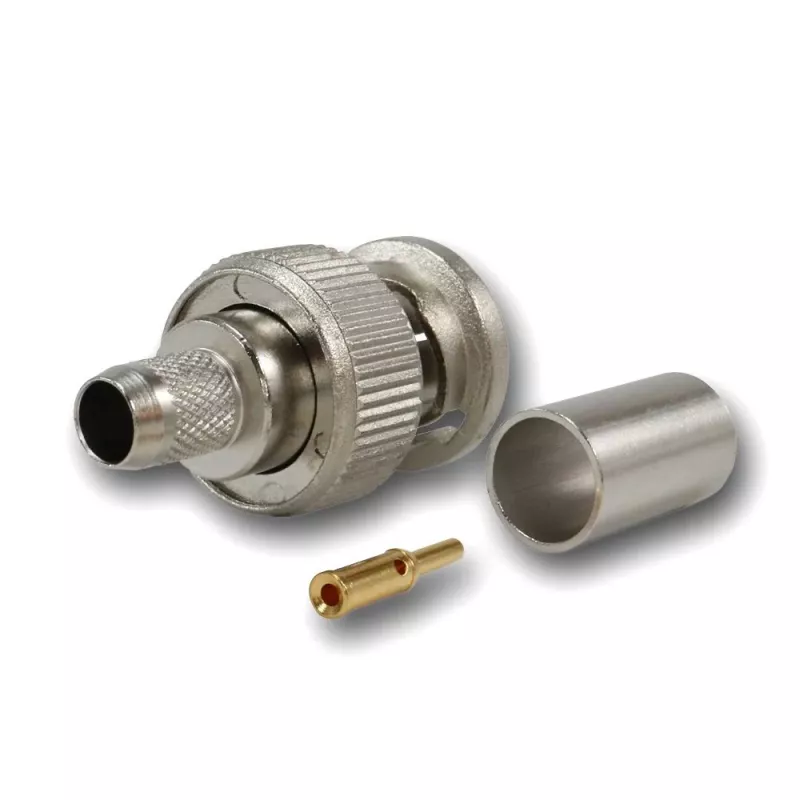

Terminating RG-59B/U cable is straightforward: strip the cable to the specified dimensions, insert the inner conductor into the center pin and crimp, then slide the ferrule over the braid and crimp the outer sleeve. The result is a secure, gas-tight connection that maintains 75 Ohm impedance across the connector, minimizing signal loss and reflections in broadcast, CCTV, and broadband applications.

Full specifications

• Connector type: BNC
• Gender: Male (plug)
• Impedance: 75 Ohm
• Termination method: Crimp
• Inner conductor termination: Crimp
• Outer conductor termination: Crimp
• Cable compatibility: RG-59B/U
• Standard designation: UG-1789/U
• Product series: G02
• Product line: Professional
• Quantity included: 5 pieces
• Body orientation: Straight

Final note

For installers who need dependable BNC terminations without the hassle of soldering, the Telegärtner G02 crimp connector offers a professional-grade solution in a convenient 5-pack.
