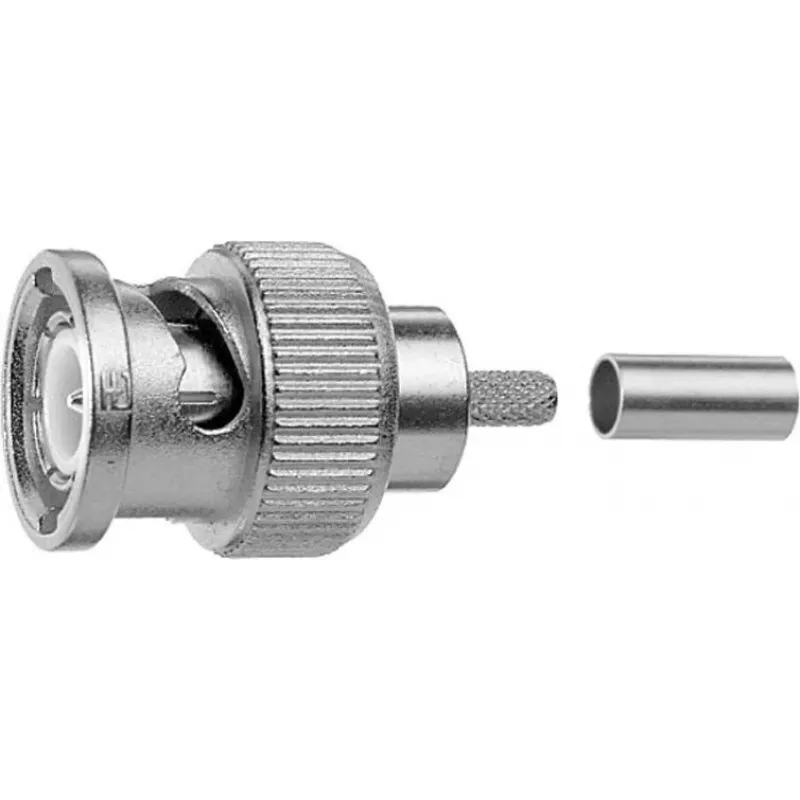

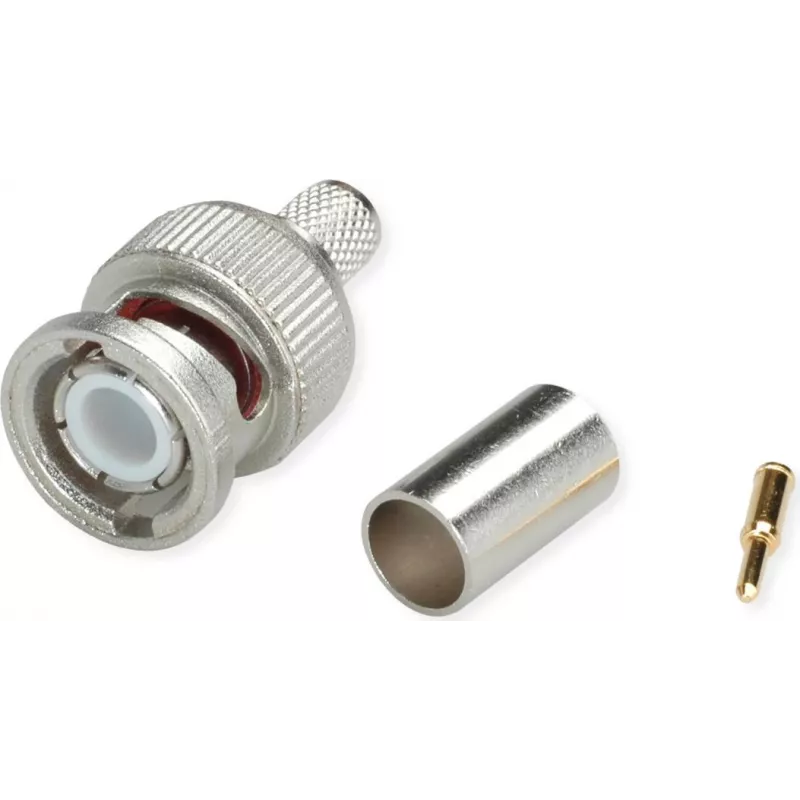

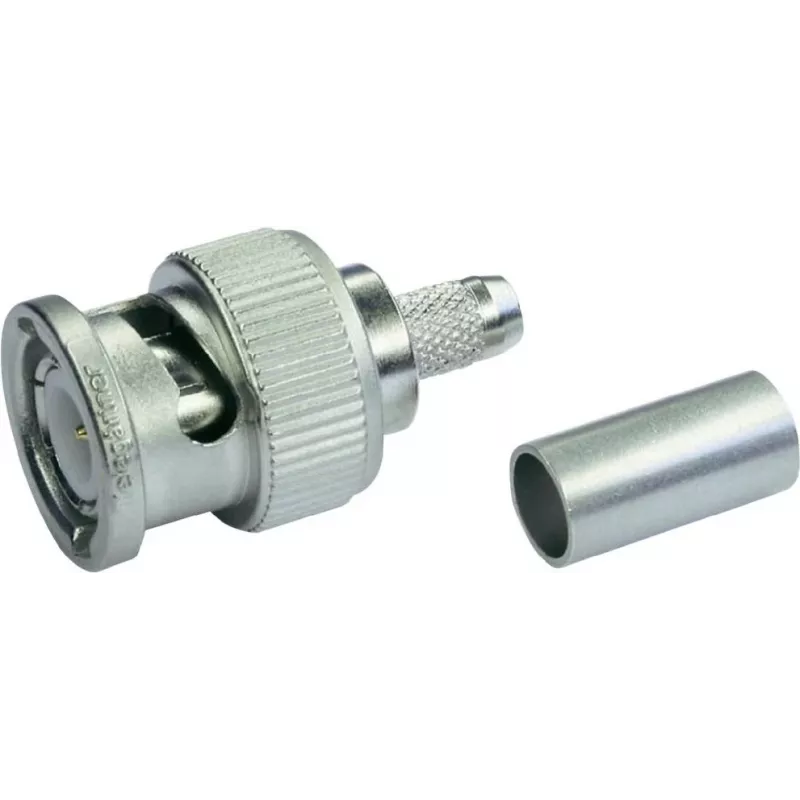

Telegärtner Conector macho BNC crimp Professional, 50 ohmios, para LMR-240, pack de 5

Precision 50-ohm BNC plug engineered for LMR-240 cable, delivering reliable crimp termination in professional RF installations.

Overview

The Telegärtner BNC Crimp Connector (model 100023316) is a professional-grade plug designed for LMR-240 coaxial cable. It features a crimp/crimp termination method for both the center contact and the braid, ensuring a secure and durable connection. With a 50-ohm impedance, it is ideal for RF applications requiring consistent signal integrity. The connector is part of Telegärtner's Professional line, known for high-quality materials and precision manufacturing.

What stands out

• Compatible with LMR-240 cable (Telegärtner cable group G30)
• Crimp termination for reliable, tool-assisted assembly
• Straight orientation for standard inline connections
• Pack of 5 connectors for multiple terminations

Technical details

• Connector type: BNC
• Gender: Plug (male)
• Impedance: 50 Ohm
• Termination: Crimp (center contact and braid)
• Cable compatibility: LMR-240
• Cable group: G30 (inner conductor 1.5 mm, dielectric 3.8 mm)
• Orientation: Straight
• Mounting type: Cable mount
• Quantity: 5 pieces

Our verdict

A dependable choice for professional RF work, offering precise crimp termination and consistent 50-ohm performance for LMR-240 cable assemblies.
