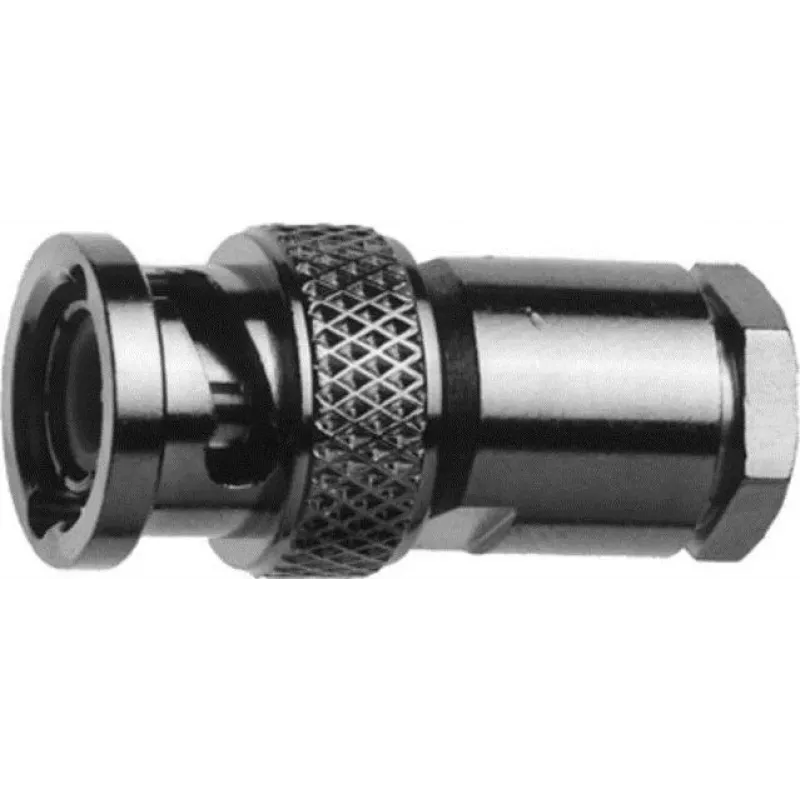

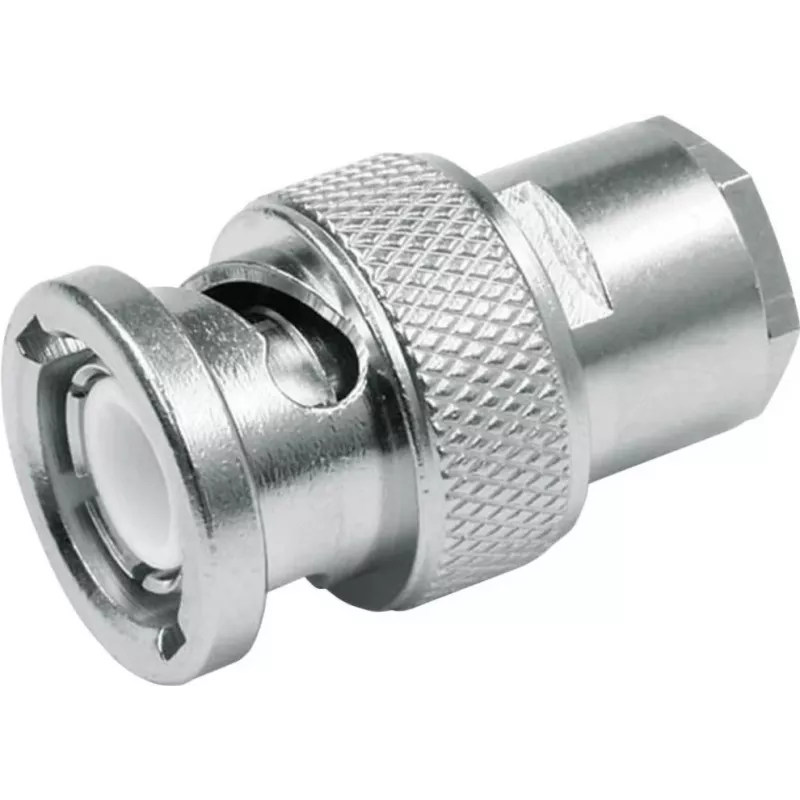

Telegärtner Conector macho BNC recto G1 (RG-58C/U) casquillo de presión J01000A0608

The Telegärtner BNC Straight Plug G1 (RG-58C/U) pressure sleeve stands out for its precision-machined brass body and gold-plated centre contact, ensuring reliable signal integrity up to 4 GHz. Unlike generic BNC connectors, this plug is engineered for crimp termination on RG-58C/U and compatible cables, providing a secure, low-loss connection in demanding RF applications.

Highlights

• 50 Ohm impedance for optimal signal transmission
• Gold-plated centre contact for corrosion resistance and consistent conductivity
• PTFE insulator for high-temperature stability and low dielectric loss
• Crimp termination for durable, vibration-resistant cable retention
• Wide operating temperature range from -40°C to +85°C

In daily use

This straight BNC plug is ideal for terminating RG-58C/U coaxial cable in video, RF, and test equipment. The pressure sleeve design provides strain relief, while the nickel-plated brass body offers mechanical robustness. With a VSWR of ≤1.3 at 3 GHz, it maintains excellent signal quality in high-frequency circuits.

Full specifications

• Connector type: BNC
• Connector gender: Male (Plug)
• Body style: Straight
• Impedance: 50 Ohm
• Cable group: G1
• Compatible cable types: RG-58C/U, RG-58A/U, RG-141A/U, LMR-195
• Termination method: Crimp (outer & inner conductor)
• Contact plating: Gold
• Body plating: Nickel
• Insulator material: PTFE
• Frequency range: DC - 4 GHz
• Voltage rating: 500 V (peak)
• VSWR: ≤ 1.3 at 3 GHz
• Operating temperature: -40°C to +85°C
• Body material: Brass
• Contact material: Brass
• Dielectric withstanding voltage: 1500 Veff
• Insulation resistance: ≥ 5 GΩ
• Mating cycles: ≥ 500

Final note

Telegärtner's precision manufacturing ensures consistent performance and long-term reliability in professional installations.
