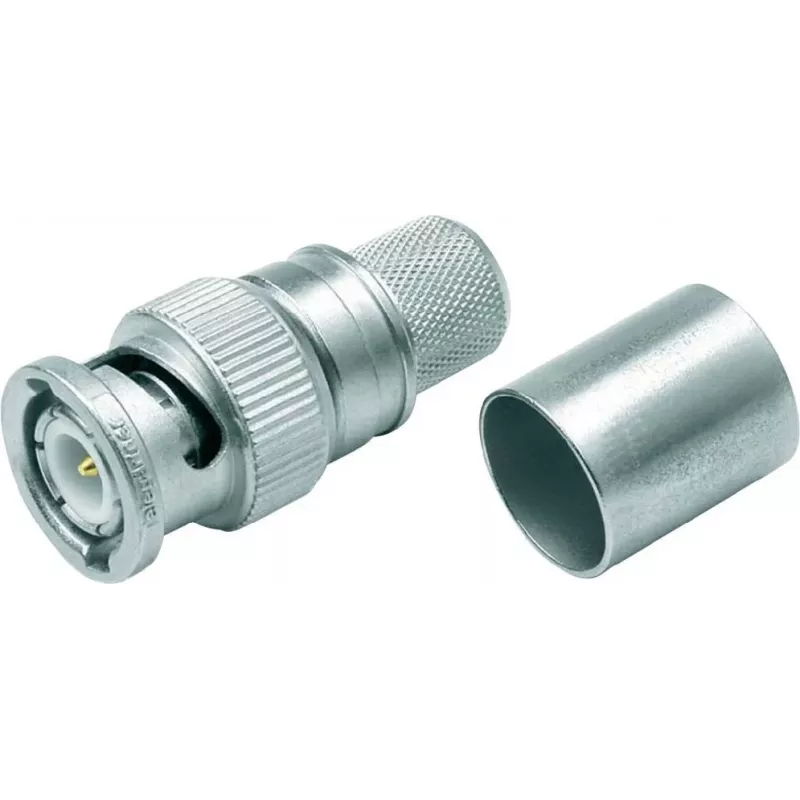

Telegärtner conector macho de cable BNC crimp G37 50 ohmios, crimp/crimp, Professional, A3326, G37 (2,7/7,25) - 5 uds. (J01000A0061)

For RF technicians and broadcast engineers terminating coaxial cables in the field, the Telegärtner BNC cable plug offers a reliable crimp connection for 50 Ohm systems. This male connector is designed for cables of group G37, with a dielectric diameter of 2.7 mm and outer diameter of 7.25 mm. Both inner and outer conductors are terminated by crimping, ensuring a secure and repeatable connection. The connector body is brass with nickel plating, and the inner contact is gold-plated for optimal signal integrity. PTFE insulation provides stable electrical performance across a wide temperature range. Suitable for frequencies up to 4 GHz and rated for 500 V peak voltage, this connector is part of the Professional series and complies with IEC 60169-8. Supplied in a pack of 5 pieces.

Key specifications

• Connector type: BNC male
• Impedance: 50 Ohm
• Termination: crimp (inner and outer conductor)
• Cable group: G37 (dielectric Ø 2.7 mm, outer Ø 7.25 mm)
• Body: brass, nickel-plated; inner contact: gold-plated
• Insulation: PTFE
• Frequency range: DC to 4 GHz
• Voltage rating: 500 V peak
• Temperature range: -40 °C to +85 °C
• Series: Professional
• Standard: IEC 60169-8
• Pack size: 5 pieces

Why choose it

This connector provides a durable and low-loss connection for professional RF applications. The crimp termination ensures mechanical strength and consistent performance, while the gold-plated center contact resists corrosion and maintains signal quality.

Ideal use cases

• Broadcast and studio equipment
• Telecommunications infrastructure
• Test and measurement setups
• RF systems requiring reliable BNC connections

Good to know

The connector is intended for cables with the specified dimensions; verify cable compatibility before installation. Crimp tools suitable for the cable and connector size are required for proper termination.
