Telegärtner Conector macho de cable FME crimpado G07 crimp/crimp, Low Cost, 15 dB / 2 GHz, B2725, G07 (RG-316/U) - 5 unidades J01700A0010

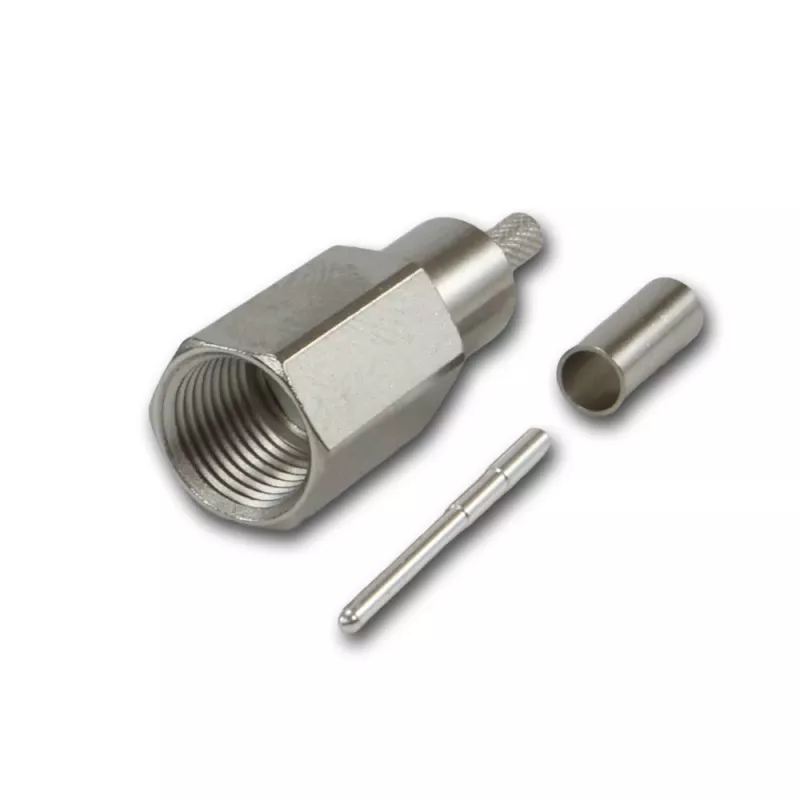

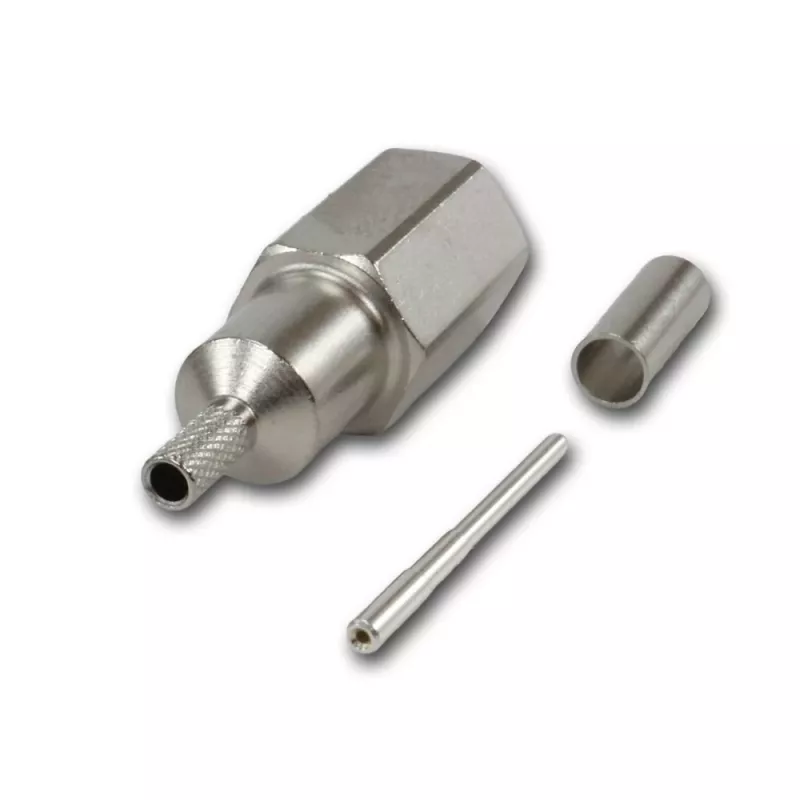

This Telegärtner FME plug is a low-cost crimp connector designed for RG-316/U and similar small coaxial cables. Unlike soldered or clamp alternatives, it uses a crimp/crimp termination for both inner and outer conductors, providing a reliable connection without special soldering skills. The connector is optimized for applications up to 2 GHz with a return loss of at least 15 dB, making it suitable for many RF installations where cost and ease of assembly are key.

Highlights

• FME plug (male) with crimp termination for both inner and outer conductors
• Compatible with cable group G07 (RG-316/U, RG-174/U, RG-188/U, LMR-100)
• 50 Ohm impedance, DC to 2 GHz frequency range
• Return loss ≥ 15 dB at 2 GHz
• Gold-plated contact, nickel-plated body, PTFE insulator

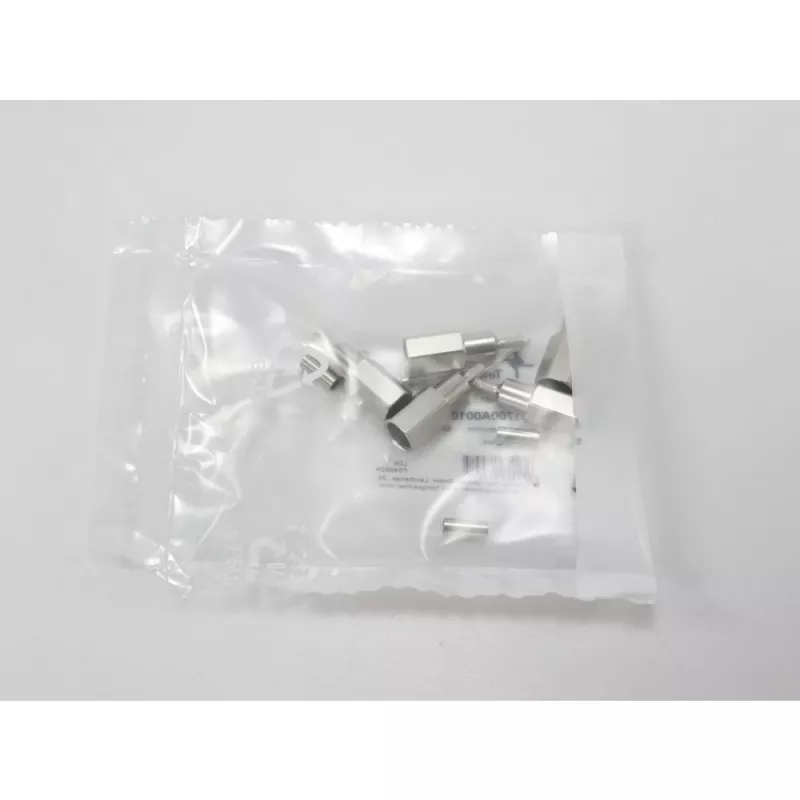

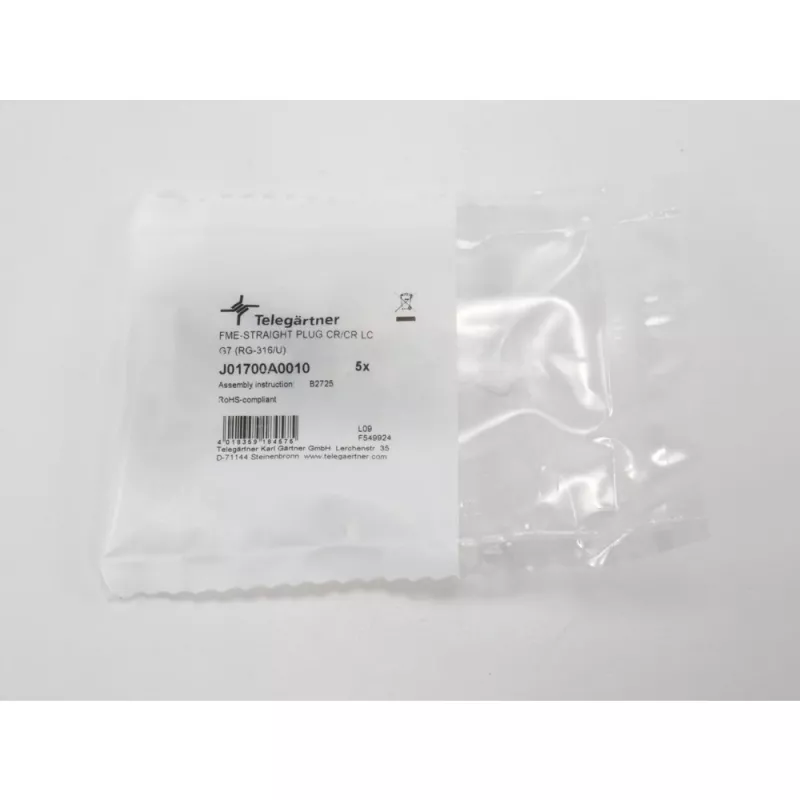

• Pack of 5 pieces

In daily use

The FME connector is widely used in mobile and RF applications where a compact, screw-on interface is needed. With its crimp design, you can achieve consistent, repeatable terminations quickly. The gold-plated center contact ensures low contact resistance and long-term reliability, while the PTFE insulator maintains performance across the operating temperature range of -40°C to +85°C. The connector is rated for 250 V RMS working voltage and has a dielectric withstanding voltage of 750 V RMS.

Full specifications

• Connector type: FME plug (male)
• Mounting type: Cable mount
• Termination method: Crimp (outer and inner conductor)
• Cable group: G07
• Compatible cables: RG-316/U, RG-174/U, RG-188/U, LMR-100
• Impedance: 50 Ohm
• Frequency range: DC to 2 GHz
• Return loss: ≥ 15 dB @ 2 GHz
• Contact plating: Gold
• Body plating: Nickel
• Insulator material: PTFE
• Operating temperature: -40°C to +85°C
• Voltage rating (RMS): 250 V
• Dielectric withstanding voltage (RMS): 750 V
• Insulation resistance: ≥ 1 GΩ
• Quantity per pack: 5 pieces

Final note

Telegärtner quality in a cost-effective crimp connector, ideal for prototyping, repairs, and production runs where reliable RF performance up to 2 GHz is required.
