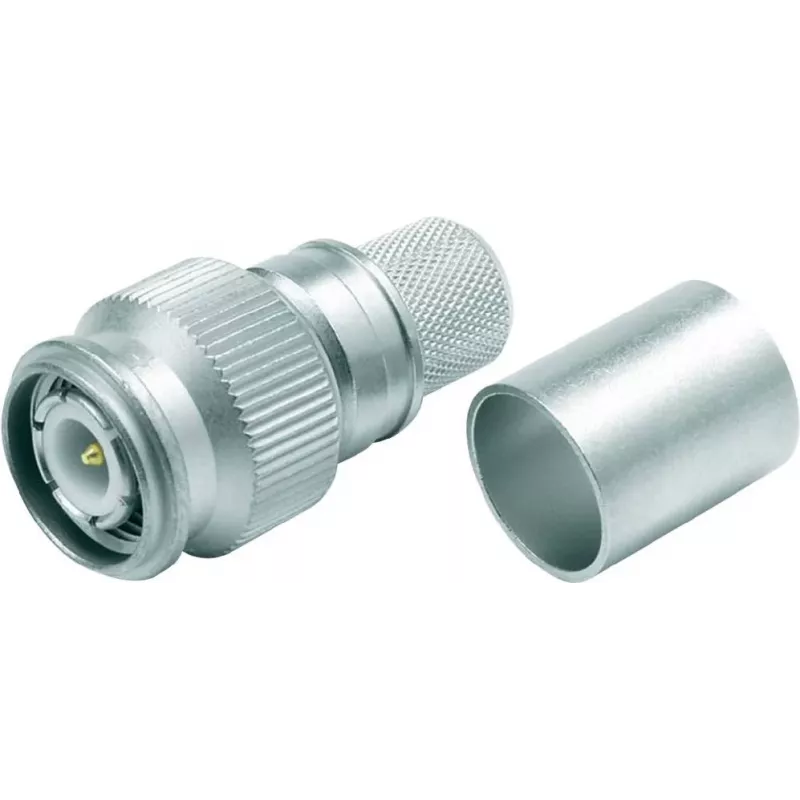

Telegärtner Conector macho TNC para cable crimp 50 ohmios, crimp/crimp, Professional, A3312, RG-214/U - 1 unidad J01010A0052

For RF technicians and installers terminating RG-214/U coaxial cable in professional antenna and communication systems, the Telegärtner TNC cable plug offers a secure crimp connection with consistent 50 Ohm impedance. This male connector is built for demanding environments where reliable signal transmission up to 11 GHz is required.

Key specifications

• Connector type: TNC male (plug)
• Impedance: 50 Ohm
• Cable compatibility: RG-214/U
• Termination: crimp/crimp (center and outer conductor)
• Body material: brass with nickel plating
• Contact material: brass/beryllium copper with gold plating
• Insulator: PTFE
• Frequency range: DC to 11 GHz
• Voltage rating: 500 V RMS
• VSWR: ≤ 1.3 at 6 GHz
• Operating temperature: -55°C to +155°C

Why choose it

The Professional series design ensures mechanical robustness and stable electrical performance. Crimp termination provides a durable, vibration-resistant connection without soldering, making it suitable for field installations and high-quality cable assemblies.

Ideal use cases

• RF coaxial systems in telecommunications
• Antenna feed lines and test equipment
• Industrial and broadcast applications

Good to know

Supplied as a single piece. The connector is RoHS compliant.
