TELEGÄRTNER conector SMA Reverse Plug, en ángulo, 50 ohmios, crimp/soldadura, dorado, J01150R0031

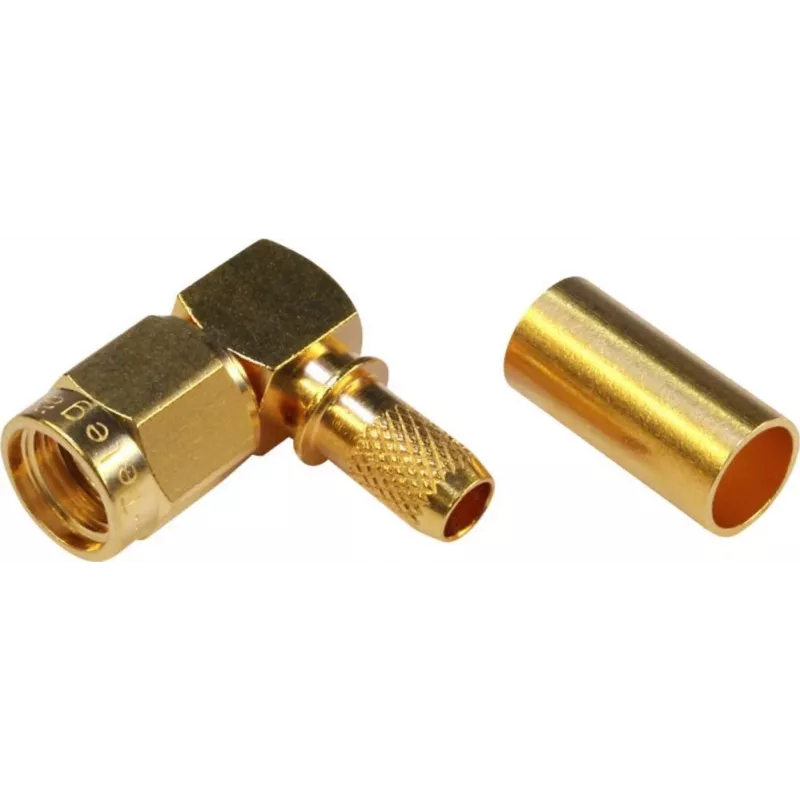

This SMA reverse-polarity plug features a right-angle body and gold-plated contacts, delivering reliable RF performance up to 6 GHz with a VSWR of ≤1.25.

Overview

The TELEGÄRTNER J01150R0031 is a precision SMA reverse-polarity plug connector designed for coaxial cables such as RG-174, RG-188 A/U, RG-316, and LMR-100A. Its angled configuration is ideal for installations where space is limited or cable routing requires a 90-degree bend. The connector uses a crimp termination for the outer contact and solder termination for the center contact, ensuring a secure and durable connection.

What stands out

• Reverse-polarity SMA design prevents accidental mating with standard SMA interfaces.
• Gold-plated brass body and contacts provide excellent conductivity and corrosion resistance.
• PTFE insulator ensures stable performance across a wide temperature range from -65 °C to +165 °C.
• Rated for 500 mating cycles, suitable for repeated connections.

Technical details

• Impedance: 50 Ohm
• Frequency range: DC to 6 GHz
• VSWR: ≤1.25 up to 6 GHz
• Voltage rating: 335 Veff at 50 Hz
• Insulation resistance: ≥5 GΩ
• Operating temperature: -65 °C to +165 °C
• Durability: ≥500 mating cycles
• Body material: Brass, gold-plated
• Center contact material: Brass, gold-plated
• Insulator material: PTFE
• Termination: Crimp (outer), solder (center)
• Compatible cables: RG-174, RG-188 A/U, RG-316, RG-316-DS, LMR-100A, 0.81/1.13/1.32/1.37/1.48/1.55

Our verdict

A robust right-angle SMA reverse-polarity connector for professional RF applications, offering excellent performance and durability.
