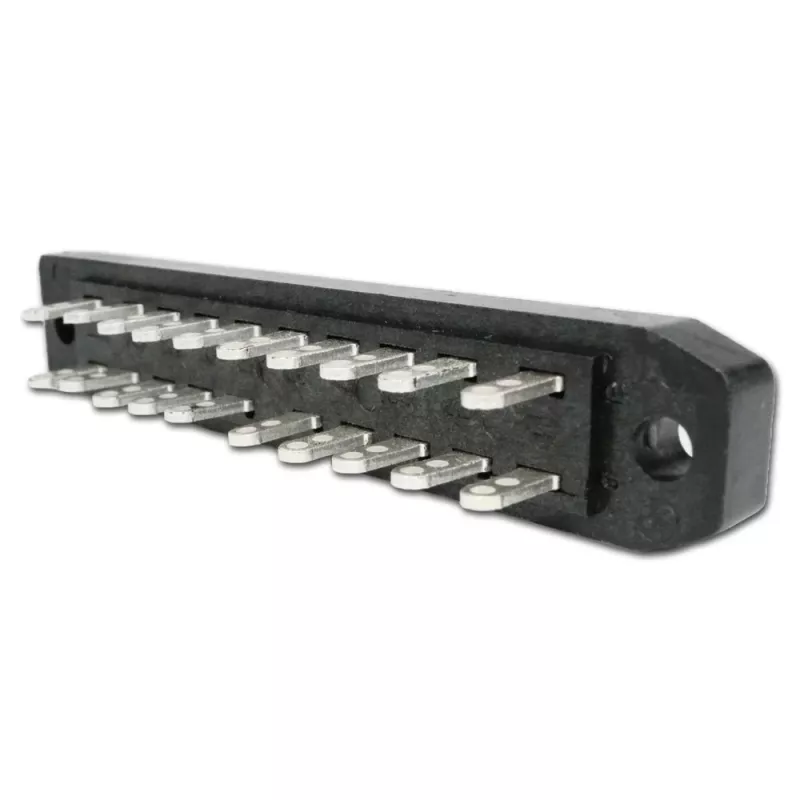

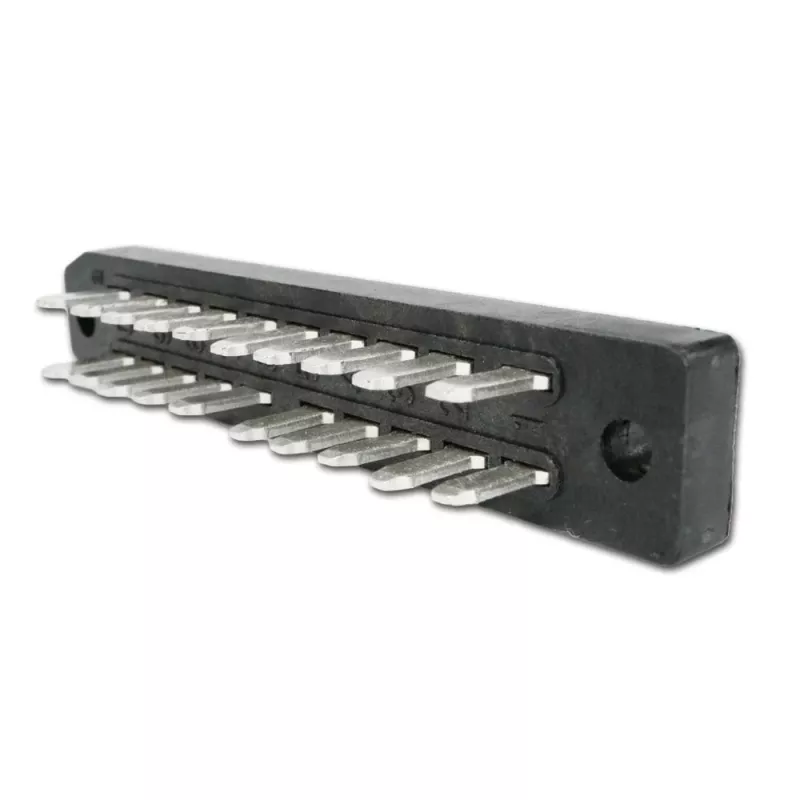

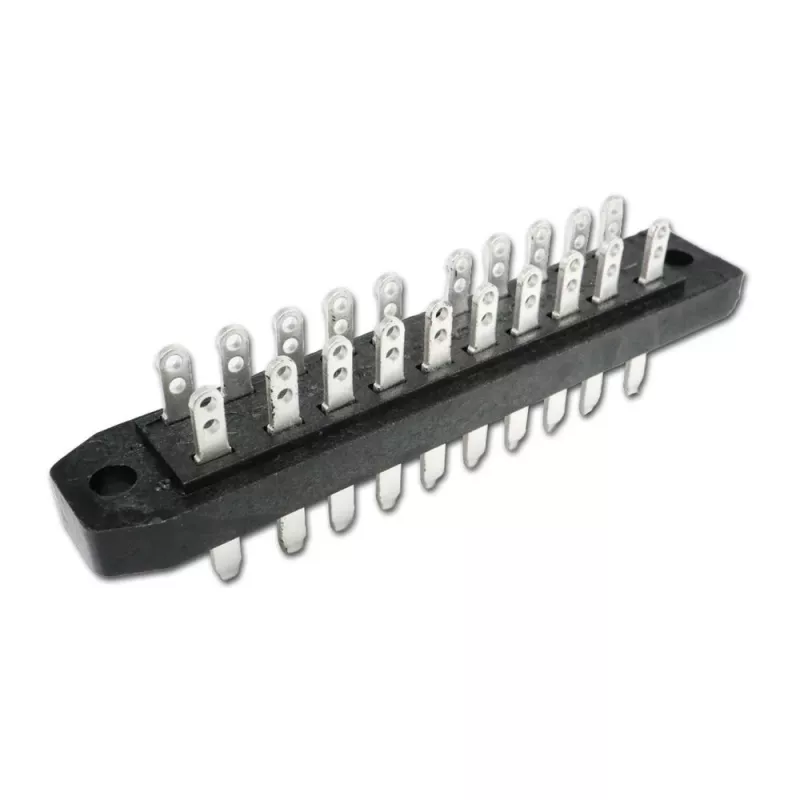

TELEGÄRTNER DIN 41622 conector asimétrico de regleta de cuchillas de 20 polos, conexión por soldadura, macho, A 20 J00045A0916

When you need a reliable board-to-board or board-to-wire connection that follows the DIN 41622 standard, this TELEGÄRTNER blade connector provides a secure asymmetric contact arrangement in a compact 20-pole format. Its solder termination ensures a permanent, low-resistance connection for industrial electronics, backplanes, and custom PCB assemblies.

Who is it for

This connector is intended for engineers and technicians building or repairing equipment that requires a DIN 41622-compliant male blade connector with asymmetric contact layout. It suits applications where a robust, solderable multi-pin interface is needed, such as in industrial control systems, measurement devices, or modular backplane designs.

Main features

• 20-pole male blade connector (Messerleiste) for DIN 41622 applications
• Asymmetric contact arrangement prevents incorrect mating
• Solder termination for durable, vibration-resistant connections
• Type A 20 with defined mounting dimensions: a=83 mm, b=74 mm, c=15 mm, d=14 mm, e=68 mm
• Compact design suitable for high-density PCB layouts

Specifications

• Brand: TELEGÄRTNER
• Model: J00045A0916
• MPN: J00045A0916
• EAN: 4018359099107
• Connector type: Blade connector
• Standard: DIN 41622
• Contact arrangement: Asymmetric
• Number of poles: 20
• Termination method: Solder
• Connector gender: Male
• Series/type designation: A 20
• Dimension a: 83 mm
• Dimension b: 74 mm
• Dimension c: 15 mm
• Dimension d: 14 mm
• Dimension e: 68 mm

Tips

Verify the mating connector's contact arrangement matches the asymmetric pattern before soldering. Use a temperature-controlled soldering iron and appropriate flux to avoid overheating the contacts. For high-vibration environments, consider additional mechanical strain relief on the cable or PCB.
