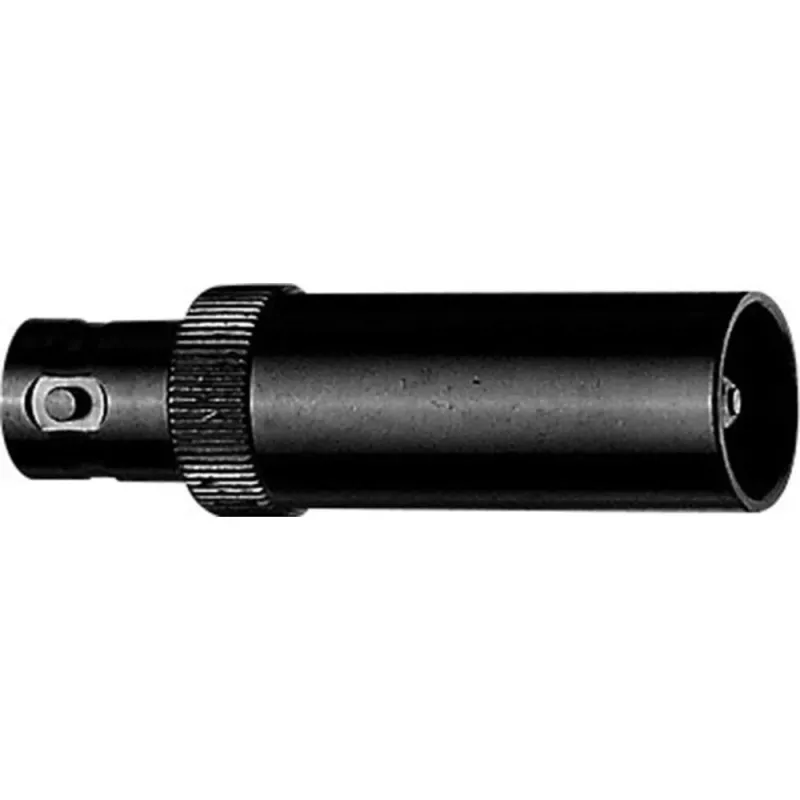

TELEGÄRTNER J01008A0802 Adaptador de montaje conector hembra BNC a conector hembra BNC, 50 ohmios, DC-4 GHz

With a frequency range up to 4 GHz and a VSWR of ≤1.2 at 3 GHz, this BNC bulkhead adapter ensures clean signal transfer in demanding RF paths. The nickel-plated brass body and gold-plated beryllium copper center contact provide durability and low contact resistance for repeated mating cycles.

Overview

The TELEGÄRTNER J01008A0802 is a straight BNC female to BNC female adapter designed for panel or bulkhead mounting. It is engineered for 50-ohm systems and supports frequencies from DC to 4 GHz. The bayonet coupling mechanism allows quick and secure connections, while the PTFE insulator maintains stable impedance and low loss.

What stands out

• Wide operating temperature range from -55 °C to +155 °C
• Dielectric withstanding voltage of 1.5 kVeff at 50 Hz
• Minimum 500 mating cycles for long service life
• Max panel thickness of 3.2 mm for versatile mounting
• RoHS compliant construction

Technical details

• Connector 1: BNC Female
• Connector 2: BNC Female
• Connector style: Straight
• Mounting type: Bulkhead / Panel Mount
• Impedance: 50 Ohm
• Frequency range: DC to 4 GHz
• VSWR: ≤ 1.2 @ 3 GHz
• Body material: Brass, nickel plated
• Center contact: Beryllium copper, gold plated (min. 0.8 µm)
• Insulator: PTFE

Our verdict

A reliable, high-performance bulkhead adapter for professional RF installations where signal integrity and mechanical robustness are critical.
