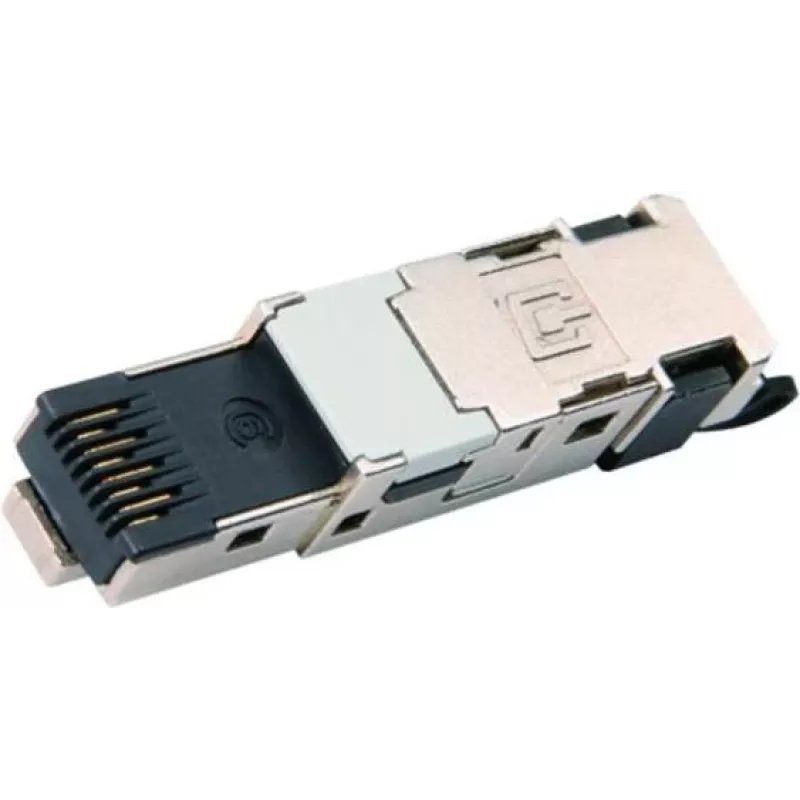

Telegärtner J80026A0047 Conector macho RJ45 blindado Cat.6A de montaje en campo, sin herramientas, T568B, zamak, negro

Supports 10 Gigabit Ethernet and Power over Ethernet up to 90W (4PPoE) in a tool-less field-terminable RJ45 plug. The Telegärtner J80026A0047 is a shielded Cat.6A connector built for solid and stranded conductors from AWG 27/7 to AWG 22/1, with a cable diameter range of 5.0 to 9.0 mm.

Overview

This RJ45 plug (8P8C) is designed for field assembly without special tools. It follows the T568B wiring standard and meets ISO/IEC 11801, EN 50173, TIA/EIA-568-C.2, and IEC 60603-7-51. The housing is zinc die-cast with nickel plating, and the contacts are gold-plated (50µ" gold over nickel) for reliable signal integrity and corrosion resistance.

What stands out

• Tool-less termination saves installation time and eliminates the need for crimping tools.
• Supports high-power PoE up to 90W, suitable for modern powered devices.
• Rugged metal housing withstands harsh environments and repeated use.
• Wide conductor compatibility covers both solid and stranded wires in common gauges.
• Operating temperature range from -40 °C to +85 °C for industrial applications.

Technical details

• Connector type: RJ45 plug (8P8C)
• Performance category: Cat.6A
• Shielding: Shielded (STP/FTP)
• Wiring standard: T568B
• Assembly type: Field assembly, tool-less
• Transmission speed: 10 Gigabit Ethernet (10GBASE-T)
• PoE support: PoE, PoE+, 4PPoE (up to 90W)
• Conductor compatibility (solid): AWG 24/1 - AWG 22/1
• Conductor compatibility (stranded): AWG 27/7 - AWG 22/7
• Cable diameter range: 5.0 - 9.0 mm
• Housing material: Zinc die-cast, nickel-plated
• Contact plating: Gold-plated (50µ" gold over nickel)
• Mating cycles: ≥ 750
• Operating temperature: -40 °C to +85 °C
• Colour: Black
• Standards compliance: ISO/IEC 11801, EN 50173, TIA/EIA-568-C.2, IEC 60603-7-51

Our verdict

A high-performance, tool-less RJ45 plug that delivers Cat.6A performance and robust construction. Ideal for field installations where speed, reliability, and ease of termination matter.
