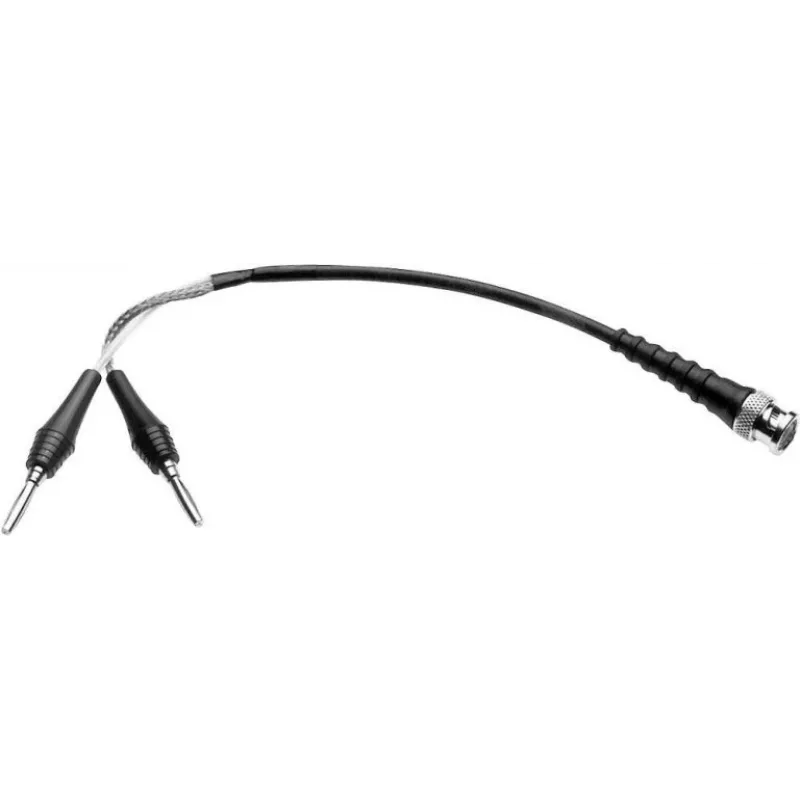

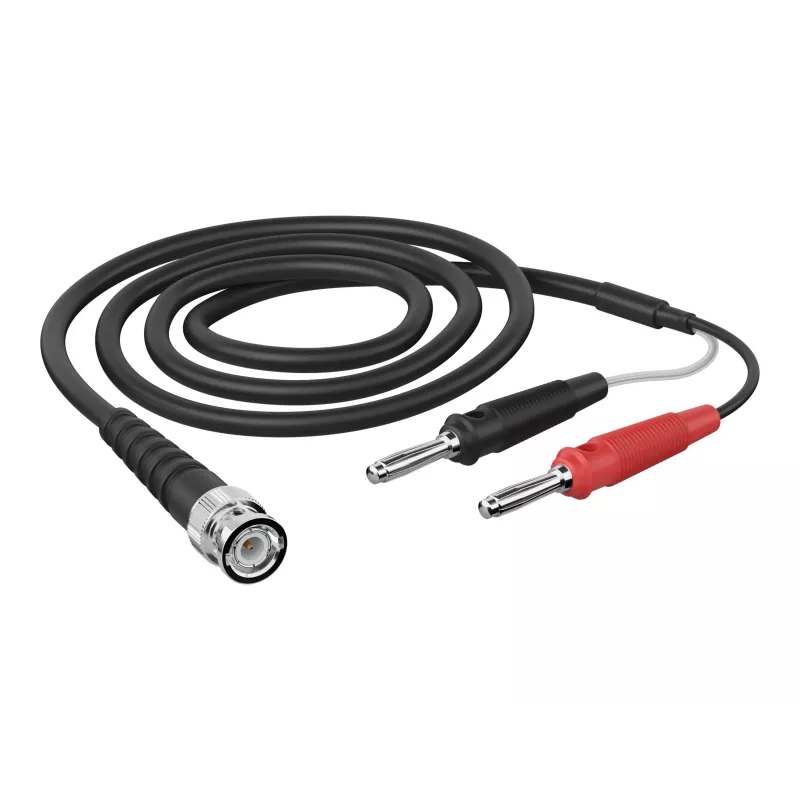

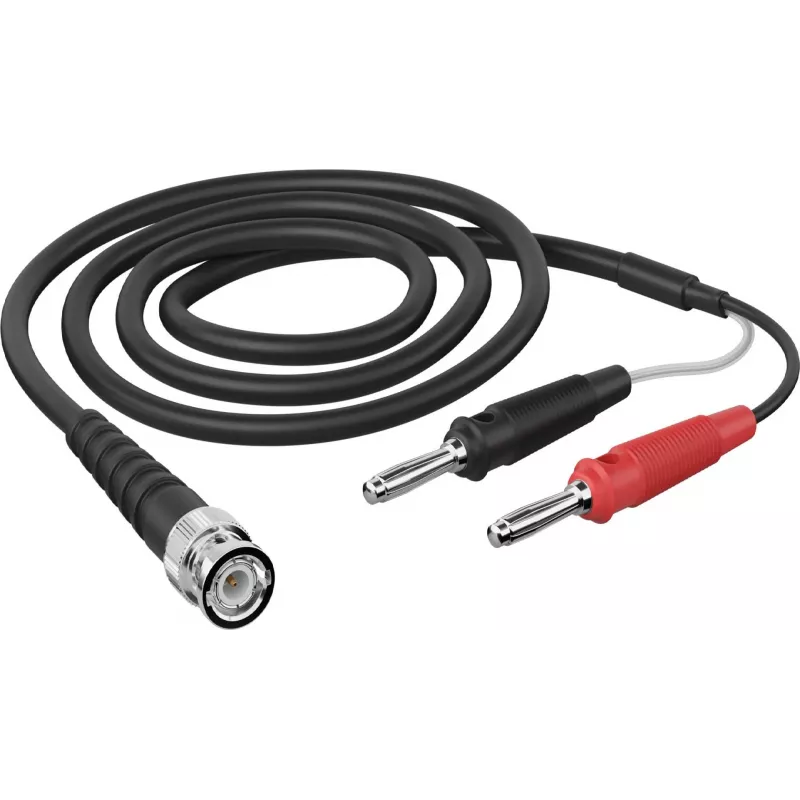

Telegärtner L00010A1845 cable de medición coaxial de 1 m BNC a doble banana, negro

This Telegärtner test lead stands out by combining a BNC plug with dual 4 mm banana plugs in a single 1-metre assembly, making it a direct link between oscilloscopes or signal generators and standard 4 mm test sockets. The 50 Ohm coaxial construction preserves signal integrity for high-frequency measurements, while the braided shield reduces interference.

Highlights

• BNC male to dual 4 mm banana plugs (red and black)
• 50 Ohm impedance for accurate signal transmission
• 1 metre length with flexible black PVC jacket
• Nickel-plated contacts for reliable connections

In daily use

The lead is suited for test and measurement setups where a BNC-equipped instrument needs to connect to banana-style inputs. The red and black banana plugs allow easy identification of signal and ground, and the 1 m length provides enough reach without excessive cable clutter.

Full specifications

• Cable type: Coaxial test lead
• Connector A: BNC plug (male)
• Connector B: Dual 4 mm banana plugs (male)
• Cable length: 1 m
• Impedance: 50 Ohm
• Jacket material: PVC
• Conductor material: Copper
• Shielding: Braided
• Cable colour: Black
• Banana plug colours: Red, black
• Voltage rating: 500 V CAT II
• Current rating: 2.5 A
• Operating temperature: -20°C to +70°C
• Dielectric material: PE
• Contact plating: Nickel

Final note

A practical accessory for anyone working with test instruments that require a reliable BNC-to-banana connection.
