TELEGÄRTNER MPP16-HS Panel de parcheo modular de 16 puertos, 1U, gris claro RAL 7035 J02022A0050

16-port modular patch panel in 1U form factor, finished in light grey RAL 7035, engineered for structured cabling systems where flexibility and density matter.

Overview

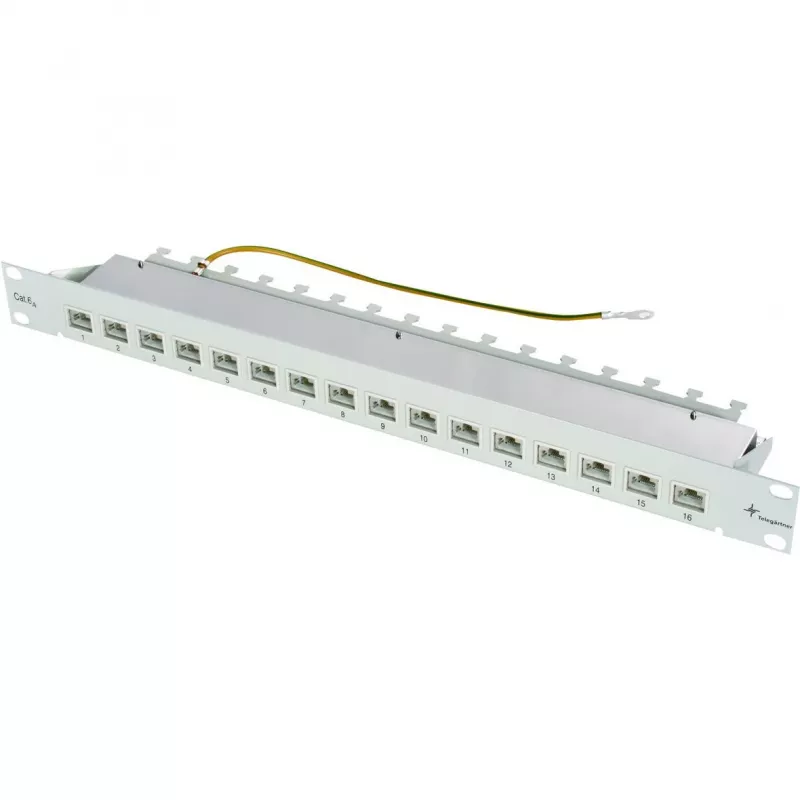

The TELEGÄRTNER MPP16-HS is a shielded, 19-inch rack-mount patch panel that accommodates up to 16 modular connectors from the AMJ, UMJ, or FMJ series. Its sheet steel housing with powder-coated finish ensures durability, while the integrated rear cable management bar and central M6 grounding bolt simplify installation and bonding.

What stands out

• Supports 16 shielded or unshielded modules for mixed media deployments
• 1U height saves rack space in high-density environments
• Central grounding point for reliable shield continuity
• Labeling fields on the front for port identification
• Compatible with TELEGÄRTNER's proven modular connector ecosystem

Technical details

• Rack units: 1U
• Port capacity: 16
• Colour: Light grey (RAL 7035)
• Mounting: 19-inch rack
• Module compatibility: AMJ, UMJ, FMJ series
• Shielding: Shielded (with compatible modules)
• Housing material: Sheet steel, powder-coated
• Grounding: Central M6 bolt
• Operating temperature: -40 °C to +70 °C
• Storage temperature: -40 °C to +70 °C
• Humidity: 0–95% non-condensing
• Standards: ISO/IEC 11801, EN 50173, TIA/EIA-568

Our verdict

A versatile and robust patch panel for professional network installations, offering modular flexibility and solid shielding in a compact 1U design.
