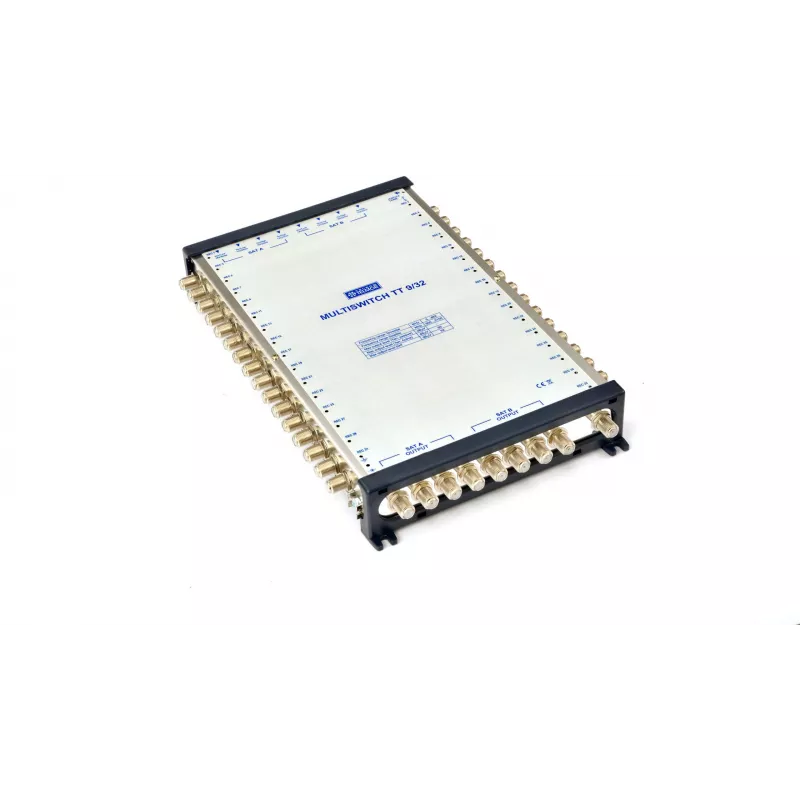

TELMOR Multiswitch TT 9/32 Classic Cascadable 8 entradas de satélite 1 entrada terrestre 32 salidas de usuario F-Type

The TELMOR Multiswitch TT 9/32 Classic Cascadable is a high-performance distribution solution for satellite and terrestrial TV signals. Designed for professional installations, it supports up to 8 satellite inputs and 1 terrestrial input, delivering signals to 32 subscribers with excellent isolation and low loss. Its cascadable design allows for flexible expansion in larger systems.

Advantages

This multiswitch offers reliable signal distribution with minimal degradation. The cascadable architecture enables easy system expansion, while the robust F-type connectors ensure secure connections. With support for DiSEqC 2.0 control signals, it is compatible with modern satellite receivers.

Suitable for

• Multi-dwelling units (apartments, condos)
• Hotels and hospitality venues
• Office buildings requiring shared TV distribution
• Small to medium-scale satellite TV systems

Key specifications

• Type: Cascadable Multiswitch
• Number of Satellite Inputs: 8
• Number of Terrestrial Inputs: 1
• Number of Subscriber Outputs: 32
• Satellite Frequency Range: 950 - 2150 MHz
• Terrestrial Frequency Range: 47 - 862 MHz
• Return Path Frequency Range: 5 - 65 MHz
• Satellite Trunk Loss: 0 dB
• Terrestrial Trunk Loss: 0 dB
• Satellite Subscriber Loss: -2 to -5 dB
• Terrestrial Subscriber Loss: -15 to -20 dB
• Max Output Level (SAT): 100 dBµV
• Max Output Level (TER): 85 dBµV
• Control Signals: DiSEqC 2.0, 13/18V, 0/22kHz
• Isolation (SAT-SAT): >30 dB
• Isolation (SAT-TER): >30 dB
• Power Supply: External 18V DC (sold separately)
• Connector Type: F-type

Recommendations

For optimal performance, use a high-quality power supply unit (18V DC) and ensure proper grounding. This multiswitch is ideal for cascading in larger installations. Always follow local regulations for signal distribution.
