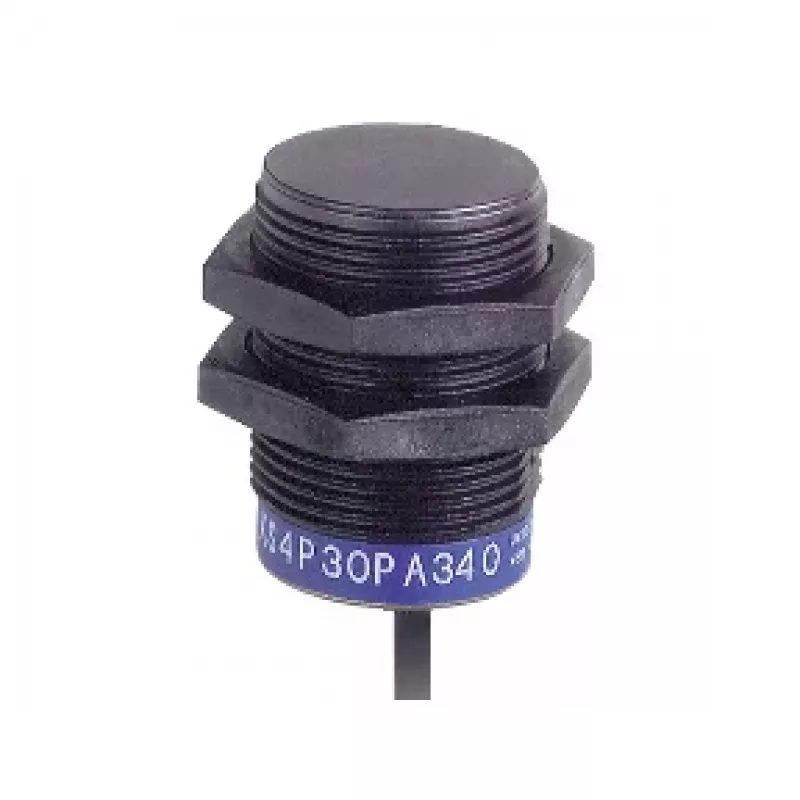

TMSS GERMANY Sensor inductivo de proximidad XS4P30PA340, M30, PNP NO, detección 10mm, 12-24VDC, cable 2m

With a nominal sensing distance of 10 mm and a switching frequency up to 1000 Hz, the TMSS GERMANY XS4P30PA340 inductive proximity sensor delivers fast, reliable detection in industrial automation. This cylindrical M30 sensor operates on 12-24 V DC and provides a PNP normally-open output, making it suitable for a wide range of position-sensing tasks.

Overview

The XS4P30PA340 belongs to the OsiSense XS series. It features a fixed body design with a plastic PBT enclosure and front face, ensuring durability in demanding environments. The sensor is non-flush mountable, allowing it to be embedded in metal without affecting its sensing performance.

What stands out

• 10 mm sensing distance for reliable object detection
• PNP normally-open output with 200 mA switching capacity
• IP67 protection for use in harsh industrial conditions
• 2 m cable connection for flexible installation
• LED status indicator for quick diagnostics

Technical details

• Sensor type: Inductive proximity sensor
• Series: OsiSense XS
• Sensor design: Cylindrical M30
• Length: 62 mm
• Body type: Fixed
• Detector flush mounting acceptance: Non-flush mountable
• Material: Plastic (PBT front face, PBT enclosure)
• Type of output signal: Discrete
• Wiring technique: 3-wire
• Output function: 1 NO (Normally Open)
• Output type: PNP
• Nominal sensing distance: 10 mm
• Operating voltage: 12-24 V DC
• Switching capacity: <= 200 mA DC
• Switching frequency: <= 1000 Hz
• Connection type: Cable
• Cable length: 2 m
• IP protection level: IP67
• Status LED: 1 LED (Yellow) for output state
• Operating temperature: -25 to 70 °C
• Protection features: Reverse polarity protection, Overload and short-circuit protection

Our verdict

A robust and precise inductive sensor for industrial automation, offering solid performance and easy integration.
