TMSS Germany Telemechanique Sensors Interruptor de posición IP66, IP67, IP68 palanca giratoria metálica XCKJ10511

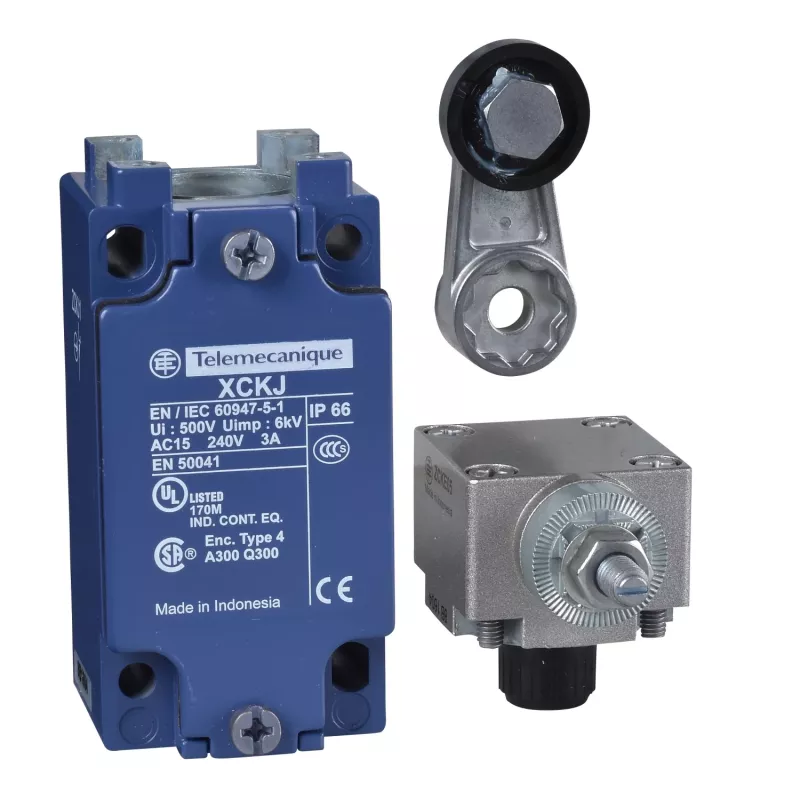

Industrial automation engineers and maintenance technicians rely on the TMSS Germany XCKJ10511 limit switch to detect the position of moving machine parts in harsh environments. This robust position switch features a metal rotary lever actuator and a durable Zamak housing, making it suitable for applications where mechanical stress and exposure to dust or moisture are common.

Key specifications

• Product range: OsiSense XCKJ
• Sensor type: Limit switch
• Actuator type: Rotary lever (metal, variable length)
• Contact configuration: 1 NC + 1 NO
• Contact operation: Snap action
• Housing material: Zamak (metal)
• Head material: Zamak (metal)
• IP protection rating: IP66, IP67, IP68
• IK protection rating: IK07
• Cable entry: 1 x M20 x 1.5
• Rated insulation voltage: 500 V AC
• Rated operational current AC-15: 3 A @ 240 V
• Rated operational current DC-13: 0.27 A @ 250 V
• Mechanical durability: 10 million cycles
• Operating temperature range: -25 to 70 °C
• Terminal type: Screw clamp terminals
• Electrical connection capacity: 1 x 0.34...2 x 1.5 mm²

Why choose it

The XCKJ10511 is built for reliability in demanding industrial settings. Its metal construction and high IP ratings ensure long service life even in dusty or washdown environments. The snap action contacts provide fast and consistent switching, reducing the risk of arcing and extending contact life.

Ideal use cases

• Machine tool position detection
• Conveyor system end-of-travel sensing
• Automated assembly line control
• Hoisting and lifting equipment limit control

Good to know

The switch is part of the OsiSense XCKJ range, known for its compatibility with a wide range of actuators and mounting options. The M20 cable entry allows for secure connection of standard industrial cable glands.
