Toma de antena Kathrein ESD 32 plata

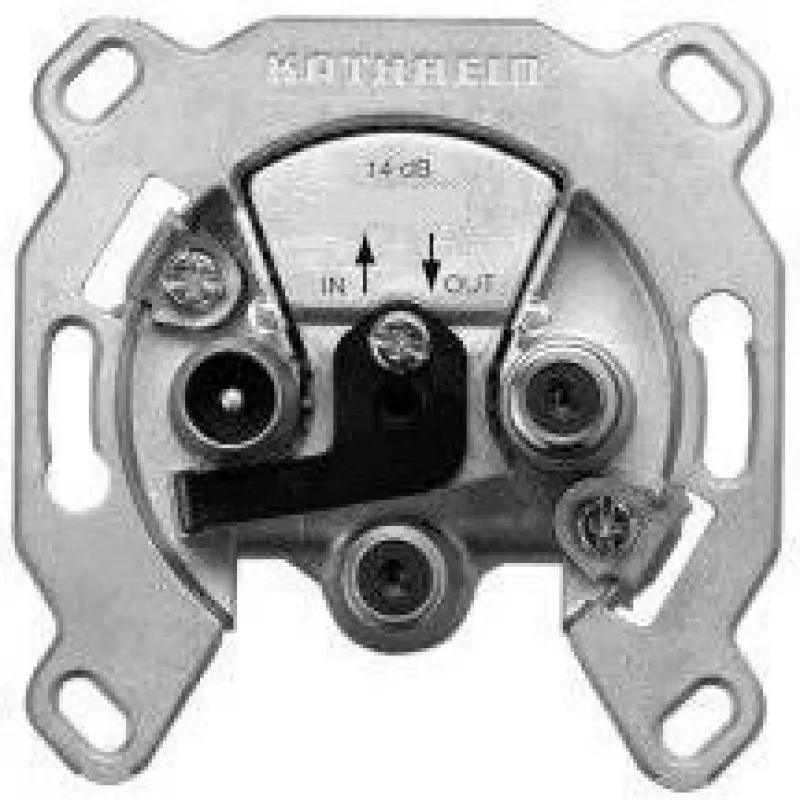

The Kathrein ESD 32 Silver outlet box is an end antenna outlet with three ports designed for distribution of terrestrial and satellite signals. It covers frequencies from 47 to 2400 MHz and supports two separate downleads with DC passage on both SAT outputs. The compact silver housing provides durable protection for the internal components and is suitable for residential and light commercial installations.

Advantages

The ESD 32 offers low connection loss of approximately 1 dB and supports a wide frequency range (47–2400 MHz) for combined terrestrial and satellite reception. Dual SAT outputs with DC-passage allow powering of LNBs or other active satellite equipment. Its three-port design facilitates signal splitting while maintaining signal quality.

Suitable for

Key specifications

How to use

Install the outlet box at the end of the antenna line and connect the incoming antenna feed to the inlet. Attach the two SAT outputs to separate satellite receivers or LNB-fed devices and use the remaining port for terrestrial TV or additional distribution. Ensure connectors are tightened to maintain the specified connection loss and verify that DC-passage is enabled only where powering of active satellite equipment is required.

Recommendations

Place the Kathrein ESD 32 in a dry, ventilated location and use appropriate coaxial cables and connectors. Confirm compatibility of connected satellite equipment with DC-passage to avoid unintended power transfer.
