Toma de conexión Kindermann 7449000201 aluminio blanco

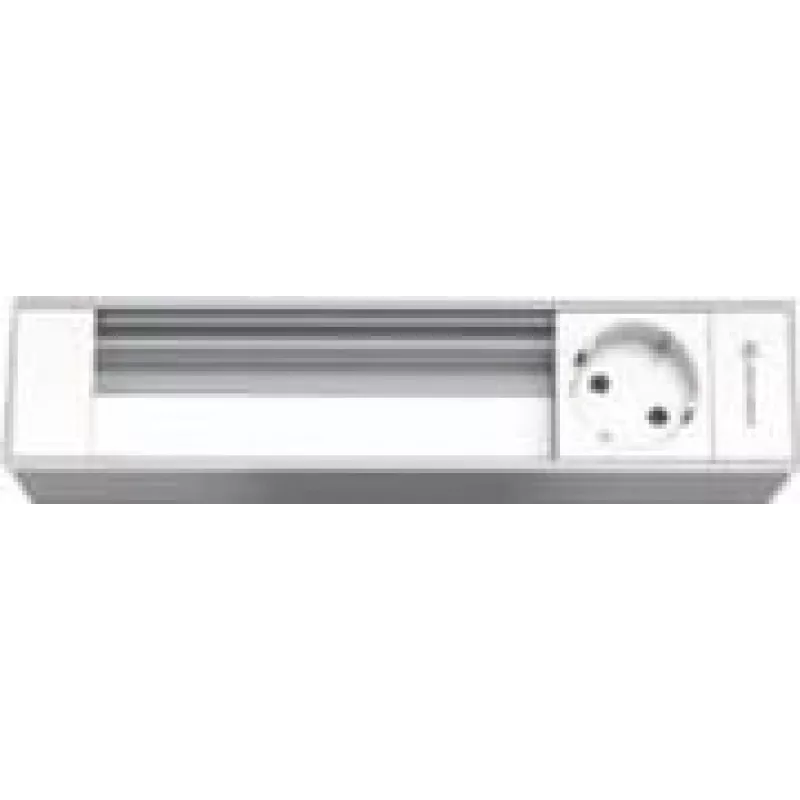

The Kindermann 7449000201 outlet box is an anodized natural-colour aluminium housing adapted for Konnect flex 45 systems. It provides one safety mains socket mounted at a 45° angle, one mains feed and three empty compartments for later individual adapter plate fitting. Power entry is via a GST18 plug with an approximate 30 cm cable. Dimensions: width 230.8 mm, height 52.4 mm, depth 51.5 mm.

Advantages

Constructed from durable anodized aluminium for corrosion resistance and a neat appearance. The integrated safety mains socket at a 45° angle improves connector accessibility in compact installations. Modular design allows individual fitting with adapter plates (type 7464 000 xxx) to customise the box for specific connectors and functions. Compact dimensions enable tidy cable management within Konnect flex 45 installations.

Suitable for

Key specifications

How to use

Mount the outlet box into the Konnect flex 45 profile according to the system instructions. Connect the mains supply using the GST18 plug; ensure the plug and cable routing are secured. Fit required adapter plates (7464 000 xxx) into the empty compartments to install additional sockets or connector modules. Verify all electrical connections and secure the box before powering equipment.

Recommendations

Use only adapter plates specified for this box (7464 000 xxx) and follow local electrical regulations. Ensure installation is performed by a qualified technician when connecting mains power.
