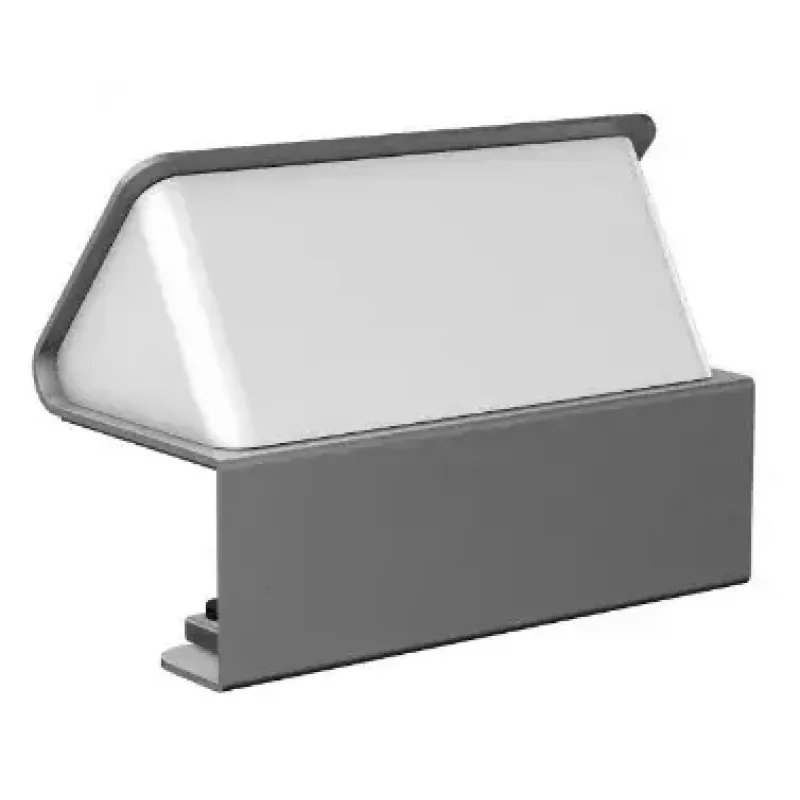

Toma de conexión Tipo F Aluminio Kindermann 7430000051

The Kindermann 7430000051 Outlet Box Type F is a desktop-mounted aluminium connection unit designed to organize power and data outlets on worktops. The anodized aluminium housing provides a flush surface and accommodates one mains module plus space for individually configurable adapter plates. It supports 6 half or 3 full adapter plates from the Konnect flex 45 click series and includes a 1 m GST18 power cable. Dimensions: 241 mm × 99 mm × 124 mm.

Advantages

The aluminium casing is anodized for durability and a uniform appearance. Adapter plates mount with an easy click system for a flush finish. The unit features concealed clamps that enable secure, non-slip fixing to desktops with thicknesses from 10 to 60 mm. It is compatible with Neets media controls, USB recharger modules and EnOcean components, allowing flexible configuration of power and media functions.

Suitable for

Key specifications

How to use

Decide the desired configuration and install the chosen Konnect flex 45 click adapter plates by snapping them into the dedicated slots until they click flush with the surface. Position the outlet box on the desktop edge and tighten the concealed clamps to secure the unit to desktops 10–60 mm thick. Connect the GST18 power cable to a compatible mains source and route cables as required for connected devices. Test connected modules (power, USB charger, media controls) to confirm operation.

Recommendations

For stable installation, verify desk thickness before mounting. Use compatible Konnect flex 45 click plates and certified GST18 connectors. Avoid mounting on unstable or very thin surfaces and consult an electrician if integrating mains power into complex installations.
