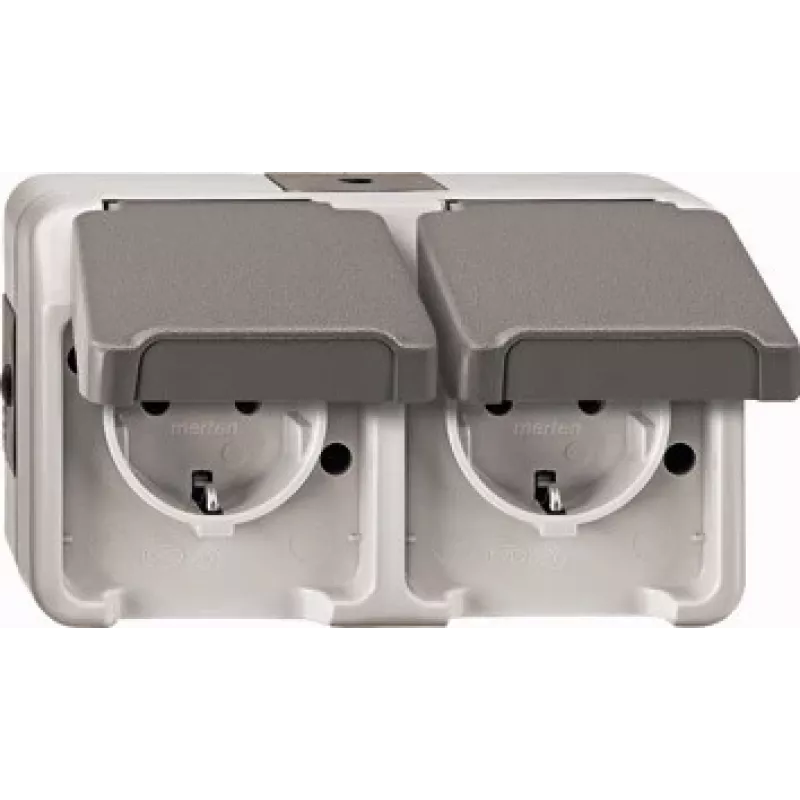

Toma de corriente Merten MEG2321-8029 CEE 7/3 gris, IP44, 250 V, 16 A, 143×57×83 mm

Merten MEG2321-8029 is a wall-mounted socket outlet with a CEE 7/3 receptacle designed for use with CEE 7/4 plugs. The unit is finished in grey and provides IP44 splash protection, making it suitable for indoor locations where occasional moisture or splashes may occur. Rated for 250 V and 16 A, the socket supports standard household and light commercial appliances while its compact dimensions (143×57×83 mm) allow installation in confined spaces or on mounting boxes commonly used in building electrics.

Advantages

The socket offers a robust plastic housing with a protective cover to maintain IP44 ingress protection when not in use. Its CEE 7/3 receptacle ensures compatibility with common European grounded plugs (CEE 7/4), and the 16 A current rating accommodates a wide range of domestic electrical devices. The compact footprint simplifies installation on exposed walls or within service areas without requiring excessive clearance.

Suitable for

• Indoor wall-mounted power connections in kitchens, garages, and utility rooms
• Light commercial areas such as workshops and small retail spaces
• Locations where splash protection is required but full waterproofing is not necessary
• Retrofitting or replacing existing wall outlets with compatible mounting dimensions

Key specifications

• Socket type: CEE 7/3 receptacle compatible with CEE 7/4 plugs
• Protection rating: IP44 (splash-resistant)
• Rated voltage: 250 V AC
• Rated current: 16 A
• Color/finish: grey
• Mounting style: wall-mounted, compact dimensions 143×57×83 mm

How to use

Install the socket on a suitable wall surface or mounting box following local electrical regulations and with the power supply disconnected. Connect the line, neutral and protective earth conductors to the corresponding terminals inside the device, ensuring secure and correct connections. After wiring, fix the unit in place, restore power, and test the outlet with an appropriate tester or a known-good appliance. Close the protective cover when the outlet is not in use to maintain IP44 protection.

Recommendations

Use a qualified electrician for installation and any maintenance. Do not expose the socket to direct water jets or prolonged immersion. Verify the connected equipment does not exceed the rated 16 A current and 250 V voltage. Periodically inspect the cover sealing and terminal connections to ensure continued safety and ingress protection.
