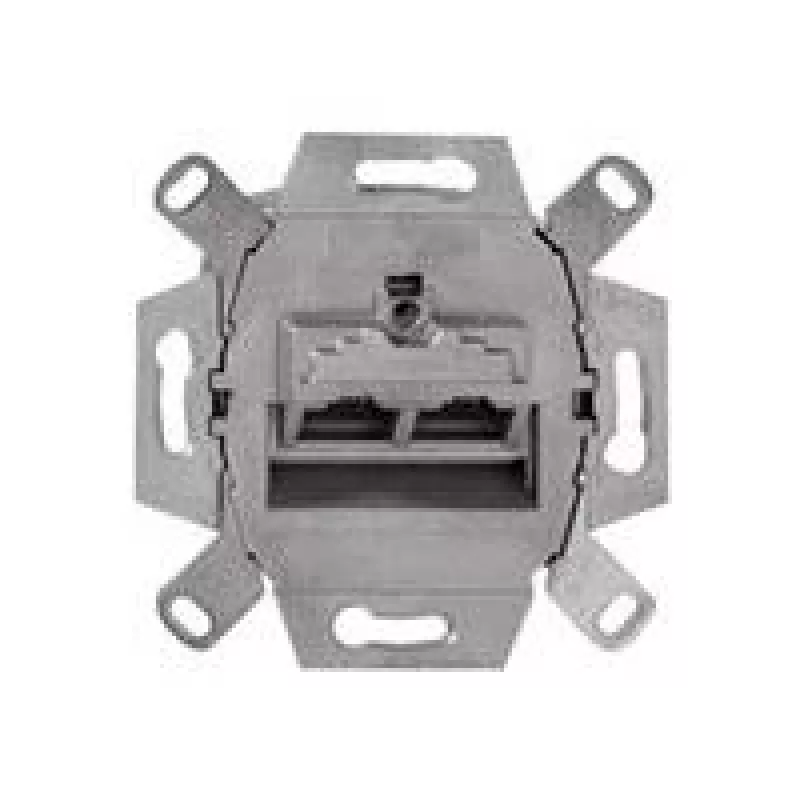

Toma de red RJ-45 Rutenbeck 138104070

The Rutenbeck 138104070 is an RJ-45 socket outlet designed to provide reliable wired network connectivity in residential and commercial installations. With a compact footprint of 70 mm × 70 mm × 40 mm and IP21 protection, the unit offers a space-saving solution for wall-mounted or surface-mounted setups where basic protection against dripping water and ingress of solid objects is required. The socket is rated for a nominal voltage of 72 V and is intended for standard twisted-pair Ethernet cabling terminated on an RJ-45 connector.

Advantages

The outlet combines a compact mechanical design with standard RJ-45 compatibility, allowing straightforward connection of network devices. Its IP21 protection rating contributes to increased durability in indoor environments by reducing the impact of dust and accidental dripping. The unit’s dimensions and mounting format simplify integration into existing faceplate or surface-box arrangements, and the standardised connector ensures compatibility with common patch cables and network hardware.

Suitable for

Key specifications

How to use

Install the outlet in accordance with local electrical and building regulations. Prepare the Ethernet cable by stripping the appropriate length of sheath and arranging the pairs according to the chosen wiring standard (T568A or T568B). Terminate the wires on the outlet’s connector following the manufacturer’s wiring diagram or colour code. Secure the unit to the wall or surface box using suitable screws and ensure the connector is accessible for plugging in standard RJ-45 patch cables. After installation, test continuity and signal integrity with suitable network test equipment to verify correct termination and connectivity.

Recommendations

Use the socket outlet indoors in protected environments consistent with its IP21 rating. For locations exposed to moisture, dust, or outdoor conditions, choose a product with a higher protection rating. Use compatible Cat5e/Cat6 patch cables and proper cable management to maintain signal quality; avoid sharp bends, excessive tension, and proximity to heavy electrical noise sources. Carry out network testing after installation to confirm performance.
