Toma modular CNC TMS-5 EL240296 16 A EU – 16 A, toma modular

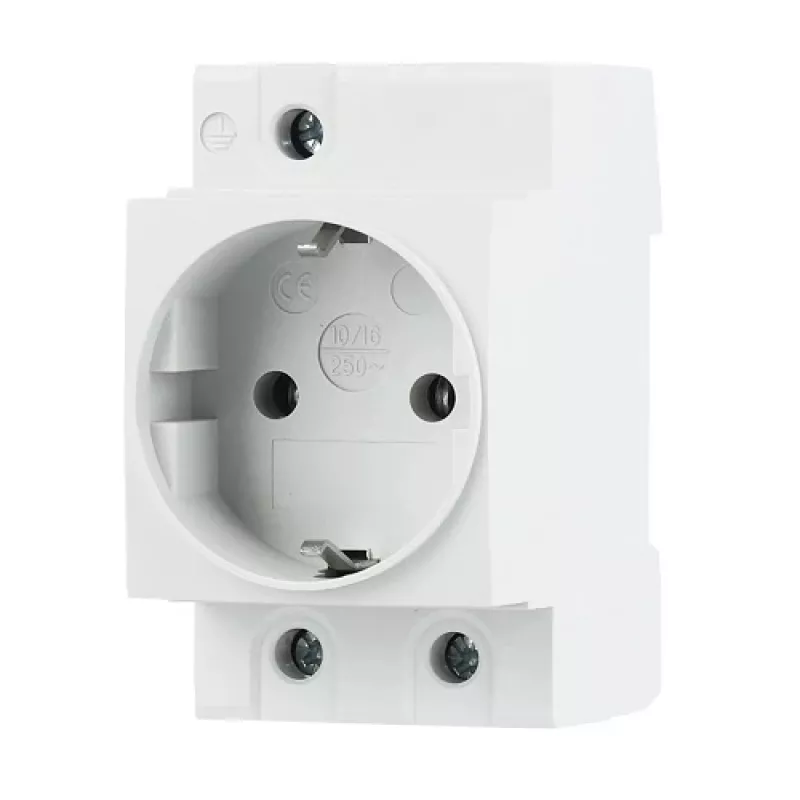

Modular Socket CNC TMS-5 EL240296 is a 16 A European (Schuko) style modular outlet intended for mounting on a 35 mm DIN rail in distribution boards, control panels and modular frames. The unit provides two poles (phase and neutral) plus protective earth (2P+PE) for connecting single‑phase AC devices in auxiliary circuits. The housing is made of fire‑resistant plastic and the product meets IEC60884-1 requirements. Installation and wiring must be performed by qualified electrical personnel.

Advantages

The modular socket offers a compact DIN‑rail form factor with a 44 mm rail width, rated at 16 A and 220 V AC for standard single‑phase loads. It supports up to 25 mm² conductor cross‑section, allows top and bottom connections for flexible wiring, and provides an electrical service life of up to 5000 cycles. The IP20 protection class suits indoor electrical cabinets and control panels.

Suitable for

• Powering tools and portable equipment in workshops and labs
• Providing auxiliary outlets in distribution boards and control panels
• Industrial automation panels and modular switchboards
• Replacing or expanding modular outlet configurations in residential or light commercial systems

Key specifications

• Model: CNC TMS-5 EL240296
• Configuration: 2P+PE (phase, neutral, protective earth)
• Rated current: 16 A
• Rated voltage: AC 220 V, 50/60 Hz
• Electrical service life: 5000 cycles
• Protection class: IP20
• Wire cross‑section: up to 25 mm²
• Connection: top and bottom
• Mounting: DIN rail EN 60715 (35 mm)
• Dimensions: 76 × 64.4 × 44 mm
• Width on DIN rail: 44 mm
• Color: white
• Standard: IEC60884-1
• Warranty: 24 months

How to use

Mount the modular socket onto a compatible 35 mm DIN rail inside a distribution board or control cabinet. Perform electrical connections from the top or bottom terminals according to the panel wiring diagram, ensuring correct phase, neutral and protective earth connections. Tighten terminals to the manufacturer’s torque specification and verify wiring continuity. Do not use the outlet outside of its rated current and voltage limits. Only qualified electrical personnel should install, connect and service the device.

Recommendations

Use this modular socket for indoor, protected installations in cabinets or panels where IP20 protection is appropriate. Avoid exposure to moisture, dust or mechanical impact. Regularly inspect terminal tightness and the condition of connected cords; replace the socket if mechanical damage or degradation is observed.
