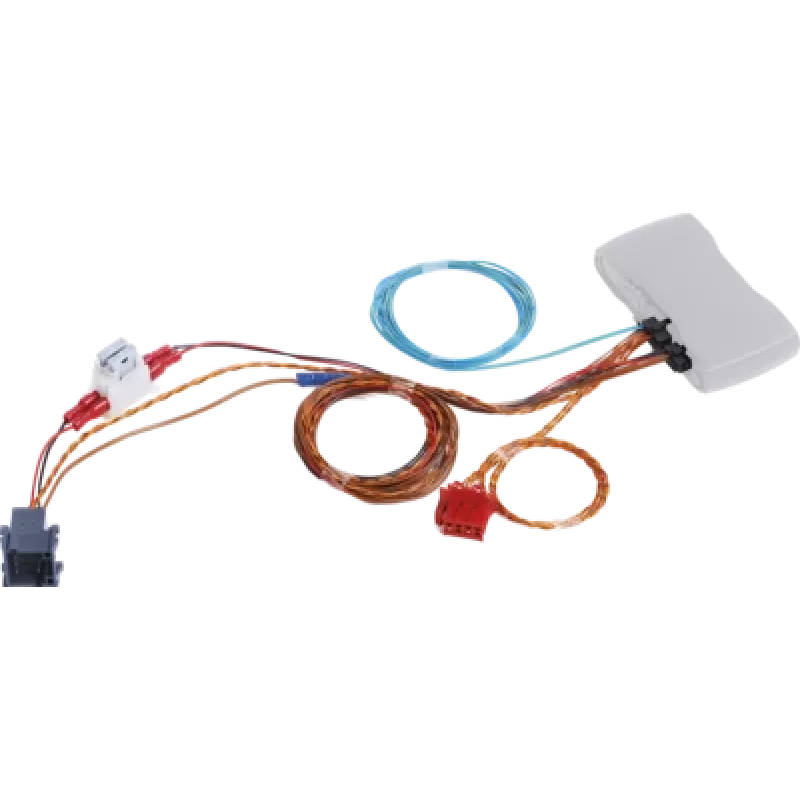

TOMTOM Webfleet LINK 7xx cable de instalación 12-Pin con CAN para vehículos MAN (MPN 10116)

The TOMTOM Webfleet LINK 7xx installation cable 12-pin with CAN for MAN vehicles is an accessory designed to connect LINK 7xx telematics units to the vehicle electrical and communication systems. This factory-compatible cable supplies power, ground and CAN bus connections in a single harness to enable fleet tracking, vehicle diagnostics and remote data exchange when installing a TOMTOM LINK device in compatible MAN trucks and vans.

Advantages

This installation cable integrates power and CAN bus wiring in a single 12-pin connector that matches TOMTOM LINK 7xx units and MAN vehicle harnesses, reducing installation time and minimizing wiring errors. The cable supports reliable CAN communication for vehicle data and diagnostics while providing the required power and ground lines, making it suitable for professional fleet installations. Its dedicated design helps ensure correct pin assignments and stable electrical connections during vehicle operation.

Suitable for

• Professional installation of TOMTOM Webfleet LINK 7xx series in MAN commercial vehicles
• Fleet tracking and remote vehicle monitoring systems requiring CAN connectivity
• Vehicle diagnostics and data logging using CAN bus signals
• Replacing or upgrading existing LINK 7xx wiring harnesses in MAN vehicles

Key specifications

• Connector: 12-pin connector compatible with LINK 7xx series
• CAN bus support: two-wire CAN communication interface
• Power lines: dedicated power and ground conductors for in-vehicle unit power
• Cable type: multi-conductor installation harness designed for vehicle environments
• Compatibility: designed for integration with MAN vehicle wiring harnesses and TOMTOM LINK 7xx telematics units

How to use

Connect the 12-pin connector to the TOMTOM Webfleet LINK 7xx unit and route the cable through the vehicle to the main wiring harness or fuse box according to the vehicle manufacturer’s routing guidelines. Secure the cable with appropriate fasteners and protect exposed sections with conduit or tape where necessary. Connect the power and ground lines to the vehicle power source and connect the CAN pair to the vehicle CAN bus following the vehicle wiring diagram and installer instructions. Verify connections, mount the unit in the intended location, and perform system checks to confirm power and CAN communication with the telematics platform.

Recommendations

Use a qualified installer and consult MAN vehicle wiring diagrams before installation. Ensure all connections are secure and protected from strain, moisture and heat. After installation, run diagnostic checks to confirm CAN bus messages and telematics unit operation before returning the vehicle to service.
