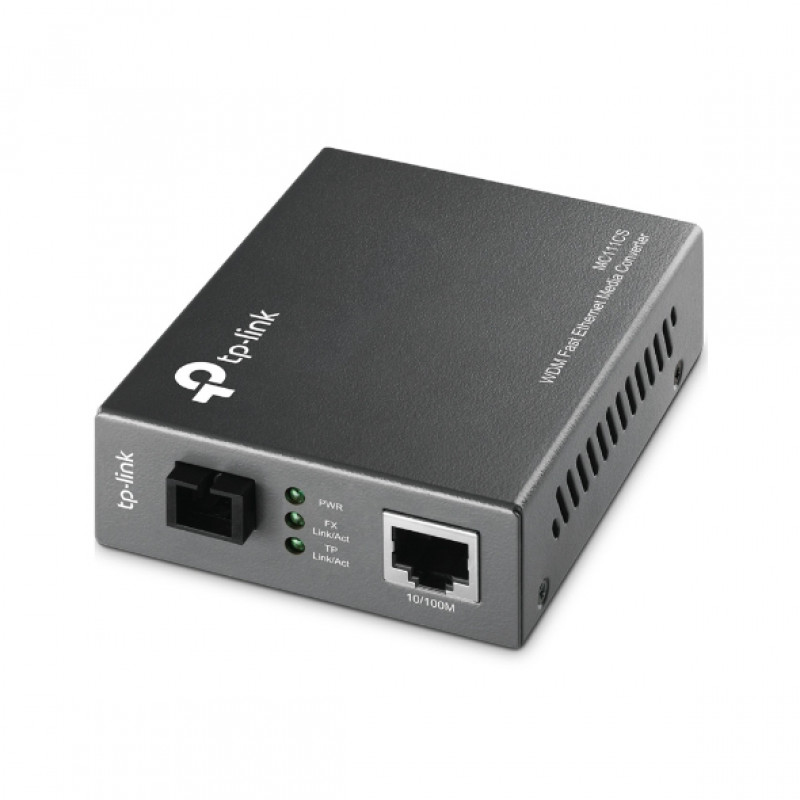

TP-LINK MC111CS Convertidor de medios Fast Ethernet monomodo WDM bidireccional, 100 Mbps, SC, 20 km, negro

Extend your network up to 20 km over single-mode fibre with the TP-LINK MC111CS, a WDM bi-directional media converter that delivers 100 Mbps Fast Ethernet over a single fibre strand.

Overview

The MC111CS converts 10/100 Mbps twisted-pair copper to 100 Mbps single-mode fibre using SC/UPC connectors. It supports WDM with 1550 nm transmit and 1310 nm receive wavelengths, enabling full-duplex transmission over one fibre. Compliant with IEEE 802.3u and 802.3x, it features auto MDI/MDIX and jumbo frames up to 9 KB.

What stands out

• WDM bi-directional transmission over a single fibre strand
• Extends network distance to 20 km
• Auto MDI/MDIX eliminates crossover cables
• Jumbo frame support up to 9 KB
• LED indicators for power and link/activity on both ports

Technical details

• Ethernet port: 1× 10/100 Mbps RJ45
• Fibre port: 1× 100 Mbps SC/UPC single-mode
• Wavelengths: TX 1550 nm, RX 1310 nm
• Standards: IEEE 802.3u, IEEE 802.3x
• Flow control: full-duplex IEEE 802.3x, half-duplex back pressure
• Power supply: external 9 V DC / 0.6 A adapter
• Operating temperature: 0 °C to 40 °C

Our verdict

A reliable, cost-effective solution for extending Fast Ethernet over long distances using existing single-mode fibre infrastructure.
