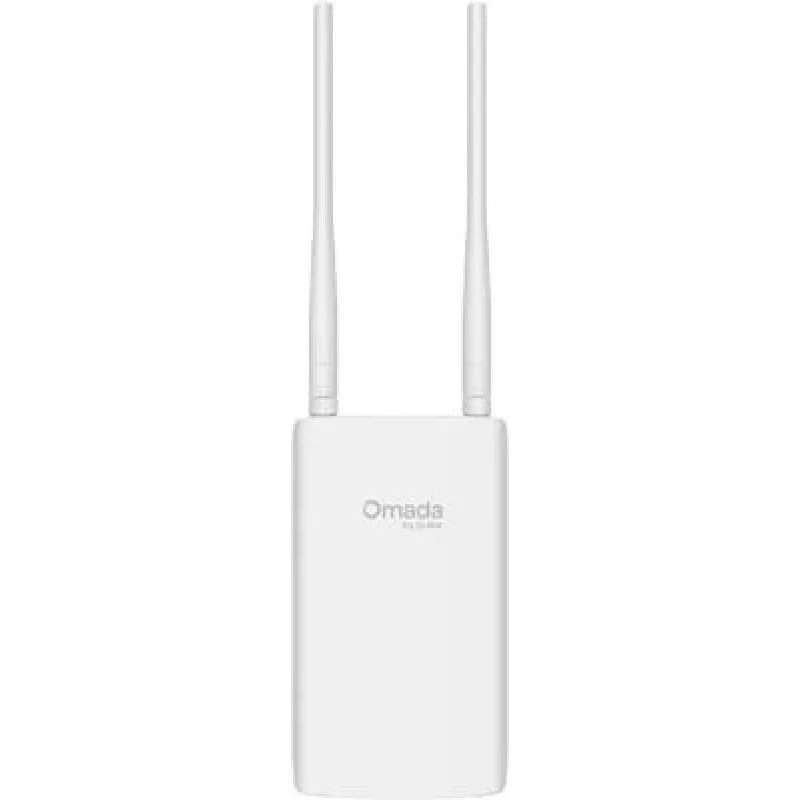

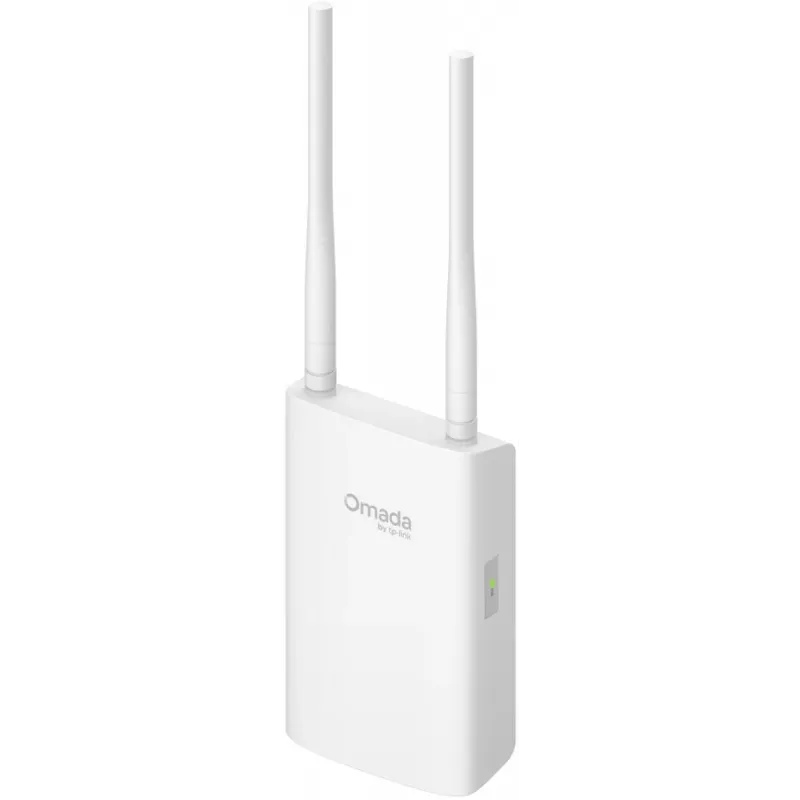

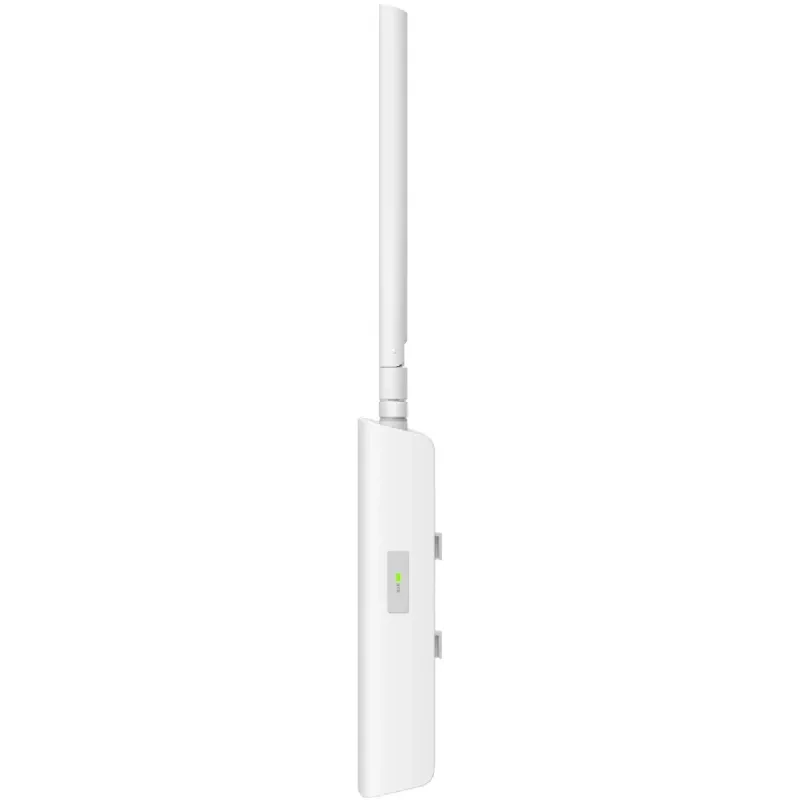

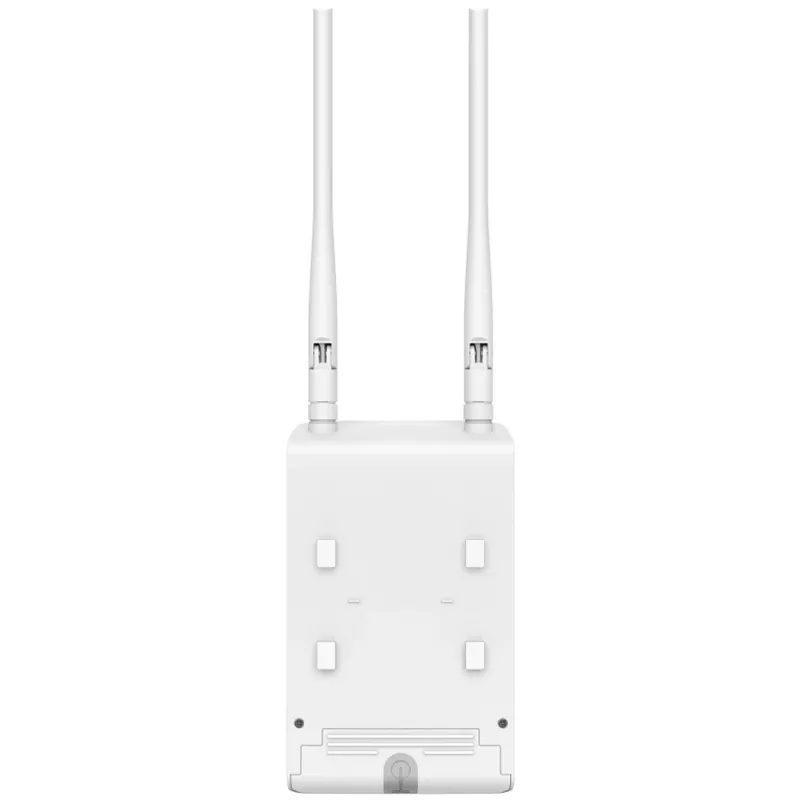

TP-Link Omada EAP603-Outdoor 1800 Mbit/s blanco Power over Ethernet (PoE)

The TP-Link Omada EAP603-Outdoor is a dual-band outdoor access point supporting 2.4 GHz and 5 GHz frequencies with a maximum data transfer rate of 1800 Mbit/s. Designed for outdoor deployments, it offers Power over Ethernet (PoE/PoE+) for flexible installation and weatherproof protection to maintain reliable wireless connectivity across wide areas.

Advantages

The access point delivers combined Wi‑Fi 6 throughput up to 1.8 Gbps (574 Mbps on 2.4 GHz and 1201 Mbps on 5 GHz) and omnidirectional long-range coverage up to 300 m. It supports both 802.3at PoE and passive PoE (adapter included), includes 6 kV lightning protection, and operates in harsh temperatures from -40 °C to +70 °C. Centralized management through Omada SDN, Omada Mesh and seamless roaming simplify large-scale deployments and network maintenance.

Suitable for

• Outdoor public areas such as parks, campuses, and courtyards
• Retail and hospitality exteriors (terraces, outdoor seating)
• Long-range coverage needs for surveillance camera wireless backhaul
• Small to medium outdoor networks requiring centralized cloud management

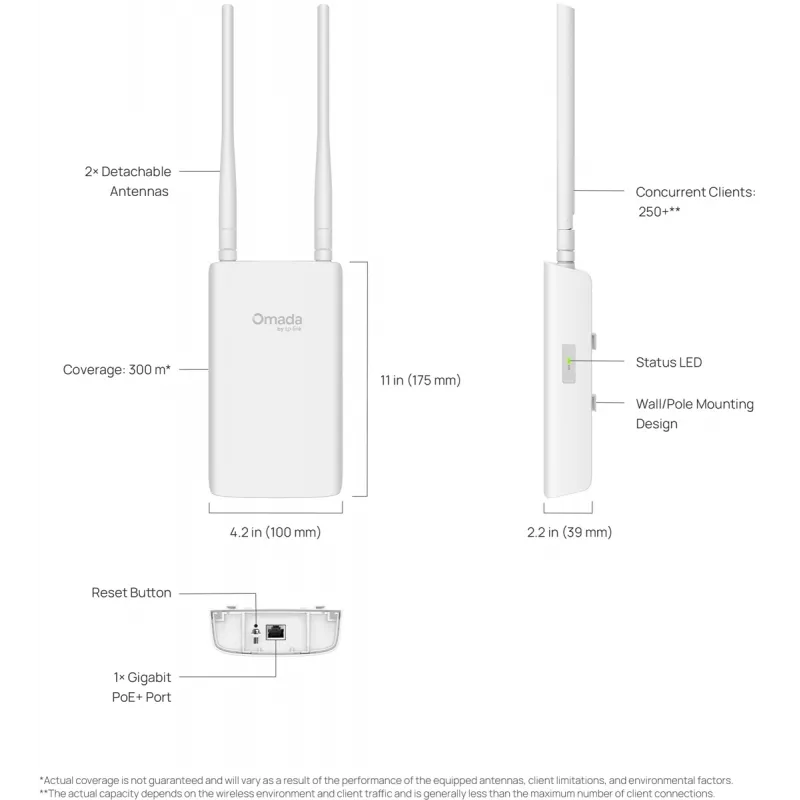

Key specifications

• Wireless: Dual-band 2.4 GHz (574 Mbps) + 5 GHz (1201 Mbps); maximum 1800 Mbit/s
• Standards & security: EAP, EAP-FAST, EAP-GTC, EAP-MD5, EAP-PEAP, EAP-SIM, EAP-TLS, EAP-TTLS, PEAP, PPSK, SNMP, SSH, WPA/WPA2/WPA3 (Personal & Enterprise)
• Power: Power over Ethernet (supports 802.3at PoE and Passive PoE; adapter included)

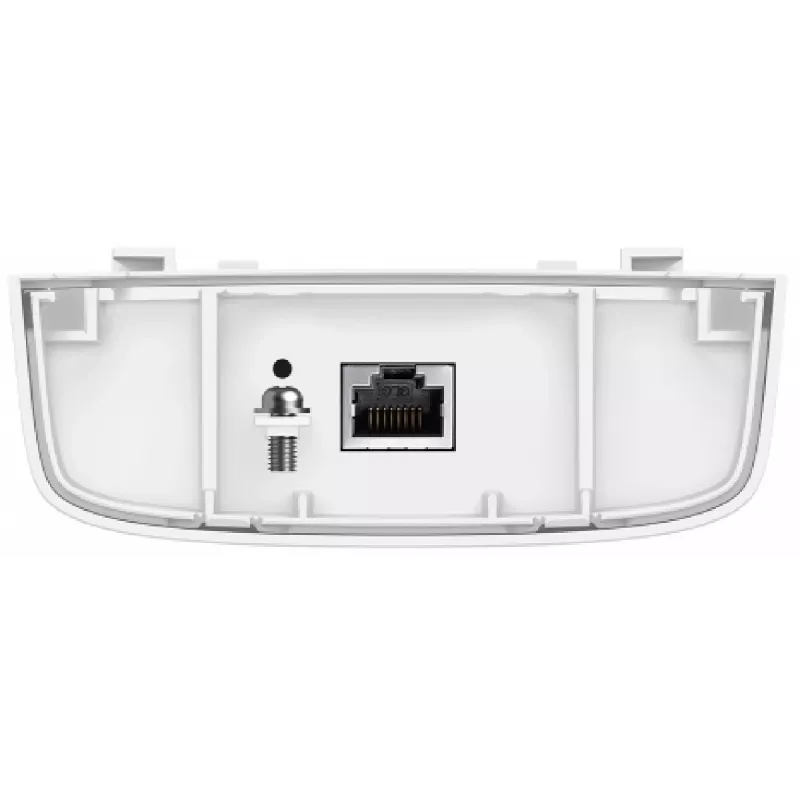

• Ports: 1 × Ethernet LAN (RJ-45)
• Antennas: 4 (internal & external)
• Durability: IP65 weatherproof, 6 kV lightning protection; operating temperature -40 °C to +70 °C
• Colour: White

How to use

Mount the EAP603-Outdoor on a wall or pole at the desired outdoor location, connect the Ethernet cable to provide data and PoE power (use the included passive PoE adapter if needed or a 802.3at PoE switch), then adopt and configure the device via Omada SDN Controller or the cloud management portal. For mesh or roaming setups, position additional Omada access points within range and enable Omada Mesh and seamless roaming features in the controller for unified SSID and client handoff.

Recommendations

Place the access point at elevated, unobstructed positions for best coverage; avoid locating directly behind large metal objects. Use a surge-protected PoE source where possible and update firmware via Omada Controller to maintain security and performance.
