Punto de acceso inalámbrico OMADA EAP787 2,4 GHz 5 GHz 6 GHz

The OMADA EAP787 is a tri-band wireless access point supporting 2.4 GHz, 5 GHz and 6 GHz bands. Designed for business and advanced home networks, it combines Wi‑Fi 7 performance with PoE power options and centralized Omada SDN management to deliver high-capacity, low-latency wireless connectivity.

Advantages

The EAP787 offers Tri-Band 8-stream Wi‑Fi 7 with combined rates up to 15.0 Gbps, a dedicated spectral analyzer radio for real-time spectrum monitoring and dynamic interference avoidance, and a 10G Ethernet port (with 802.3bt PoE support) for optimized wired throughput. It supports Multi-Link Operation, 320 MHz bandwidth, Multi-RUs and 4K‑QAM to reduce latency and maintain stable connections for many concurrent clients. Centralized management, Omada Mesh and seamless roaming simplify deployment and operation.

Suitable for

• Small and medium business offices
• High-density public venues (meeting rooms, lobbies)
• Advanced home networks requiring multi-gigabit Wi‑Fi
• Environments needing centralized SDN management and seamless roaming

Key specifications

• Wireless bands: 2.4 GHz / 5 GHz / 6 GHz
• Wi‑Fi standard: IEEE 802.11be (Wi‑Fi 7) and previous 802.11a/b/g/n/ac/ax
• Maximum aggregate throughput: up to 15.0 Gbps (2.4 GHz 688 Mbps; 5 GHz 8648 Mbps; 6 GHz 5765 Mbps)
• Streams: Tri‑band 8‑stream

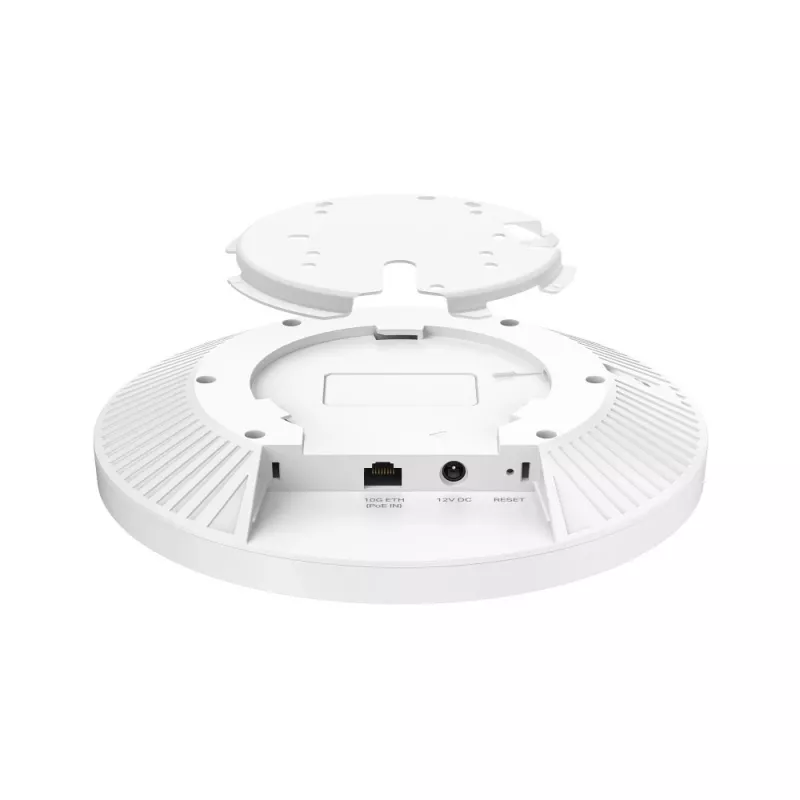

• Ports: 1× 10G/2.5G Ethernet port
• Power: 802.3bt/at PoE support and DC input (PoE preferred for flexible installation)
• Security: WPA, WPA2, WPA3
• Concurrent clients: supports 510+ clients (manufacturer indication)
• Coverage: up to approximately 160 m² (1750 ft²) depending on environment
• Management: Omada SDN centralized cloud/controller management, Mesh, Seamless Roaming
• Colour: White

How to use

Mount the access point in a central, elevated location for best coverage. Connect the EAP787 to your network switch or PoE injector using the Ethernet port; use an 802.3bt PoE source to enable full 10G capabilities and simplify cabling. Use the Omada SDN controller (cloud or local) for one‑click setup, firmware updates and centralized configuration. Configure SSIDs, security (WPA3 recommended where supported) and network policies via the controller, then validate coverage and roaming behavior across deployment areas.

Recommendations

Place the unit away from large metal objects and microwave sources; enable the dedicated spectral analyzer to detect interference and use Omada Mesh for extending coverage where wired backhaul is not possible.
