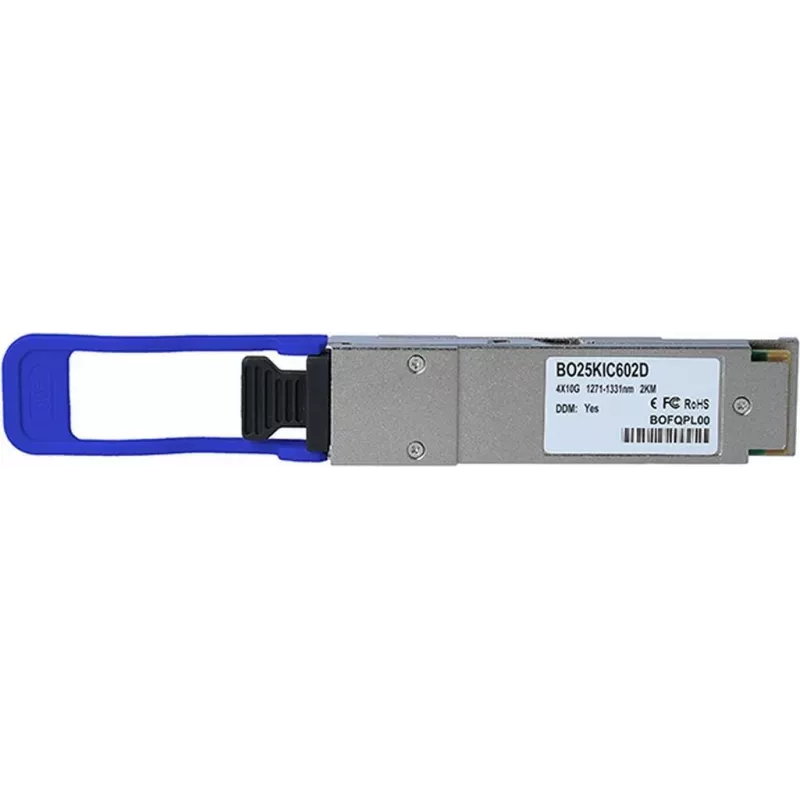

Transceptor BlueOptics QSFP-40G-UNIV-BO compatible con Arista QSFP+ 40GBASE-LX4, LC-Duplex, 40Gbps, OM4 160m / SMF 2km, 4xWDM, DDM

The BlueOptics QSFP-40G-UNIV-BO is a high-performance QSFP+ transceiver delivering 40 Gbps over fiber optic cabling. It supports both multimode OM4 fiber up to 160 meters and single-mode fiber up to 2 kilometers, making it a versatile choice for data centers and enterprise networks. Designed for compatibility with Arista QSFP-40G-UNIV, this hot-pluggable module ensures seamless integration and reliable performance.

Advantages

This transceiver leverages 4xWDM technology to combine four wavelengths on a single fiber pair, maximizing bandwidth efficiency. Digital Diagnostic Monitoring (DDM) provides real-time monitoring of critical parameters such as temperature, optical power, and voltage, enabling proactive network management. The LC-Duplex connector ensures secure and low-loss connections, while the wide operating temperature range from 0°C to +70°C guarantees stable operation in various environments.

Suitable for

• Data center interconnects requiring 40G Ethernet over multimode or single-mode fiber
• Enterprise backbone links where flexible reach options are needed
• Network upgrades from 10G to 40G without replacing existing fiber infrastructure
• Environments with Arista switches that support QSFP-40G-UNIV

Key specifications

• Form Factor: QSFP+ (Quad Small Form-Factor Pluggable)
• Data Rate: 40 Gbps
• Ethernet Standard: 40GBASE-LX4
• Connector: LC-Duplex
• Multimode Fiber: OM4, up to 160 m
• Single-mode Fiber: OS2, up to 2 km
• Wavelength: 4xWDM
• Operating Temperature: 0°C to +70°C
• DDM: Yes
• Hot-Pluggable: Yes
• MSA Compliant: Yes

Recommendations

For optimal performance, pair this transceiver with OM4 multimode fiber for short-reach applications or OS2 single-mode fiber for extended distances. Ensure your Arista device supports the QSFP-40G-UNIV standard and that proper fiber cleaning procedures are followed to maintain signal integrity.
